Datasheet Details
| Part number | MS1808 |
|---|---|
| Manufacturer | Ruimeng |
| File Size | 1.69 MB |
| Description | 96kHz 24 position ADC |
| Datasheet |

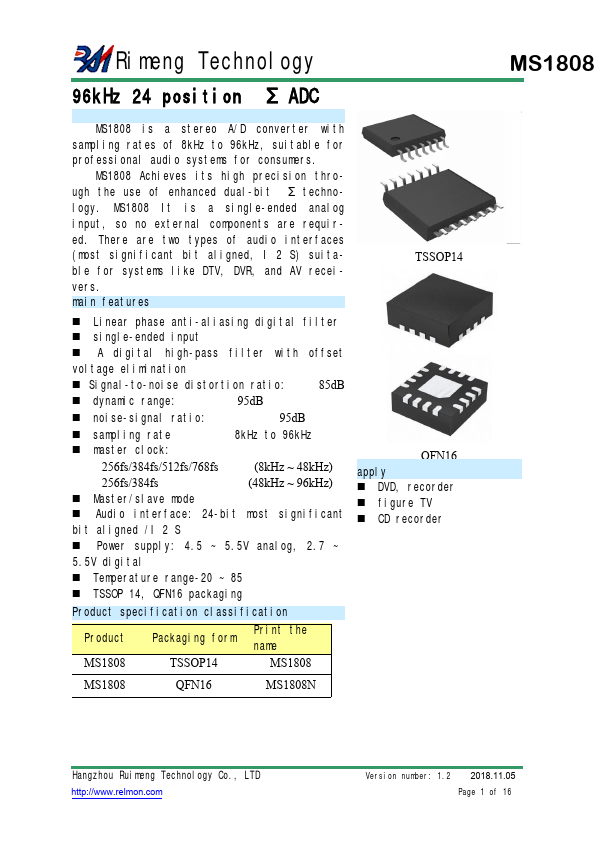

 MS1808 Datasheet
|
|
|
General Description

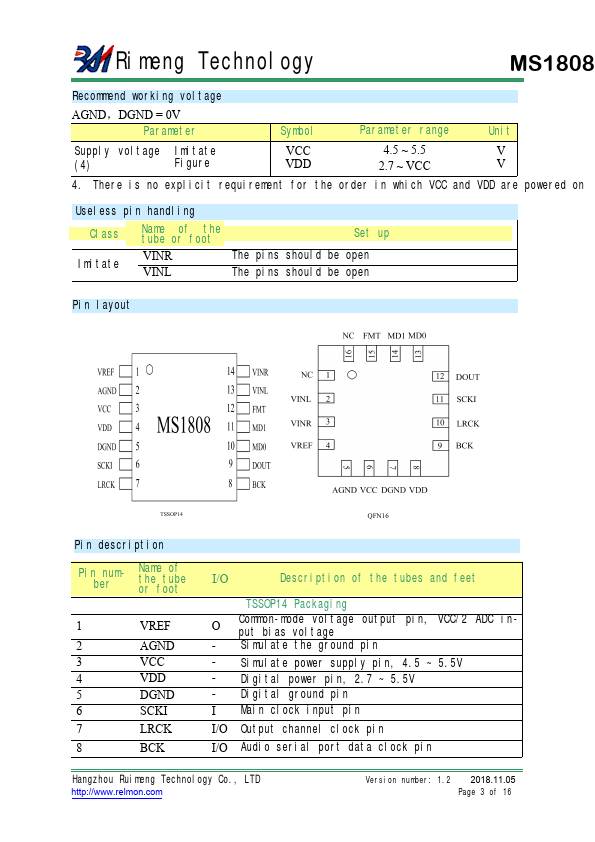

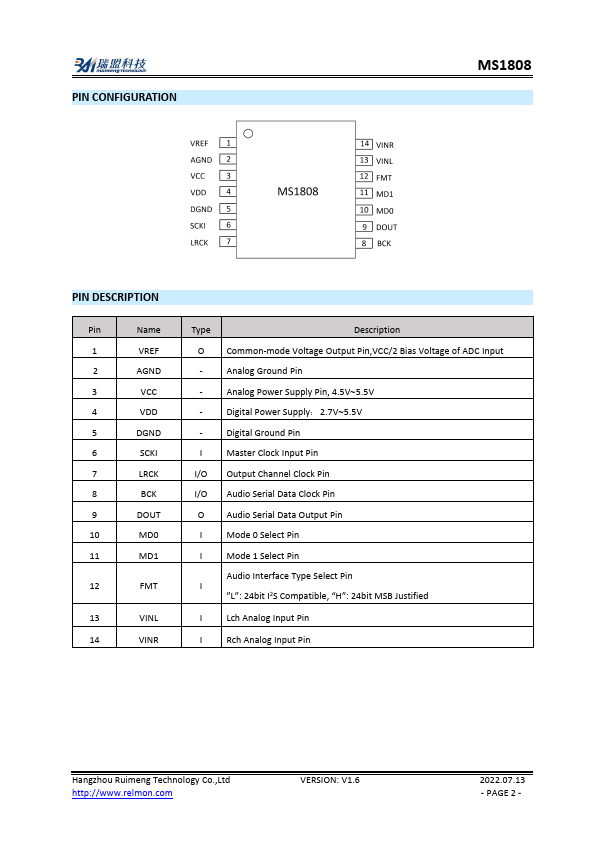

Pin number
Name of the tube or foot
1
VREF
2
AGND
3
VCC
4
VDD
5
DGND
6
SCKI
7
LRCK
8
BCK
I/O
Description of the tubes and feet
TSSOP14 Packaging
O
Common-mode voltage output pin, VCC/2 ADC input bias voltage
- Simulate the ground pin
- Simulate power supply pin, 4.5 ~ 5.5V

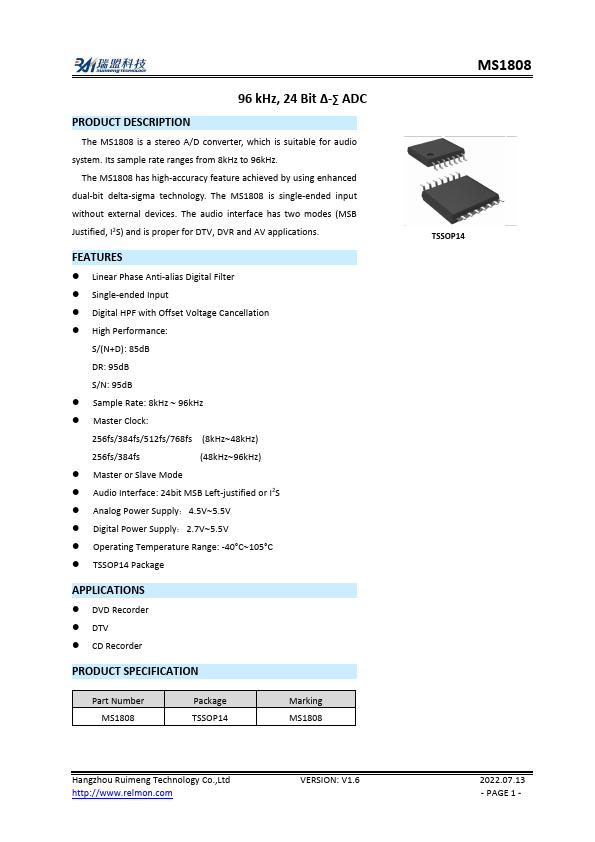

Key Features
- TSSOP14.
- Linear phase anti-aliasing digital filter.
- single-ended input.
- A digital high-pass filter with offset voltage elimination.
- Signal-to-noise distortion ratio:.
- dynamic range: 95dB 85dB.
- noise-signal ratio: 95dB.
- sampling rate 8kHz to 96kHz.
- master clock: 256fs/384fs/512fs/768fs (8kHz ~ 48kHz) 256fs/384fs (48kHz ~ 96kHz).
- Master/slave mode.
- Audio interface: 24-bit most significant bit aligned /I 2 S.
- Power supply: 4.
