IMH2A - Dual Digital Transistor

Datasheet Summary

Features

1) Two DTC144Es chips in a EMT or UMT or SMT package. 2) Mounting possible with EMT3 or UMT3 or SMT3 automatic mounting machines. 3) Transistor elements are independent, eliminating interference. 4) Mounting cost and area can be cut in half. !External dimensions (Units : mm) EMH2 0.22 (4) (5) (6) (3) (2) 1.2 1.6 (1) 0.13 All terminals have same dimensions Abbreviated symbol : H2 1.3 0.65 0.7 0.8 1.1 0.9 0.2 (6) 1.25 The following characteristics apply to both DTr1 and DTr2. 0.15 2.1.

Rohm

📥 Download Datasheet

Datasheet Details

Part number	IMH2A
Manufacturer	ROHM
File Size	64.92 KB
Description	Dual Digital Transistor
Datasheet	IMH2A Datasheet

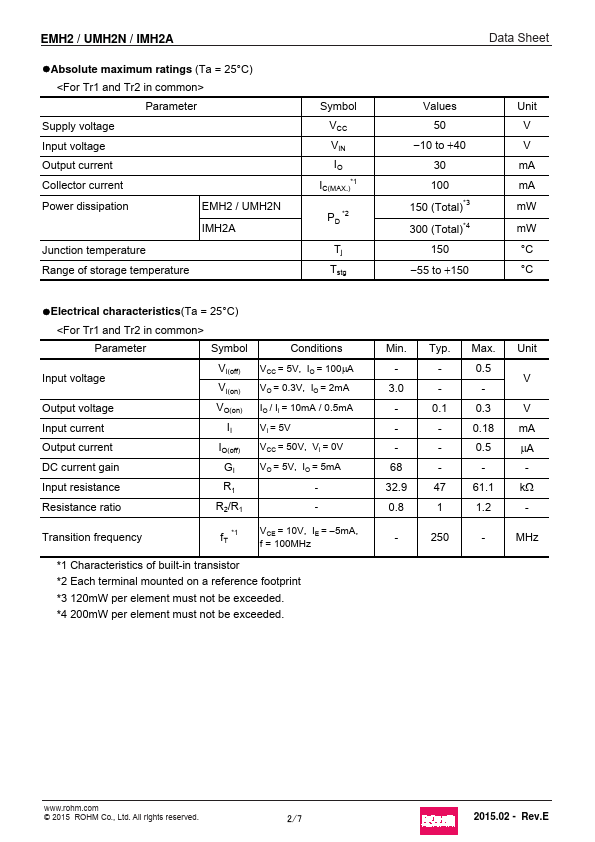

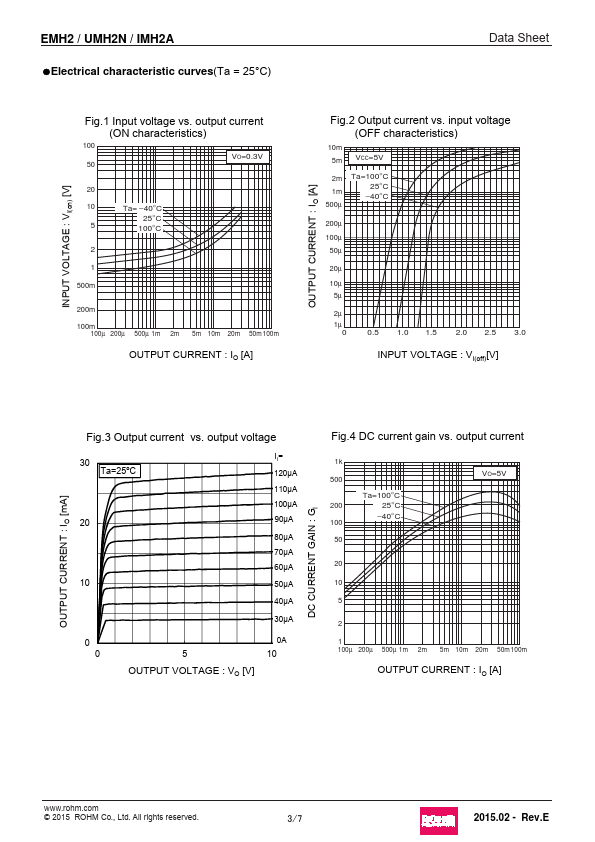

Additional preview pages of the IMH2A datasheet.

📁 Similar Datasheet

IMH20T1G - Dual Bias Resistor Transistor (ON Semiconductor)

Other Datasheets by Rohm

IMH20 - General purpose (dual digital transistors)
IMH21 - NPN 600mA 20V Digital Transistors
IMH10A - Dual Digital Transistor
IMH11A - NPN Digital Transistor
IMH14A - NPN 100mA 50V Complex Digital Transistors
IMH15A - General purpose
IMH1A - NPN 100mA 50V Complex Digital Transistors
IMH3A - Dual Digital Transistor

Full PDF Text Transcription

Click to expand full text

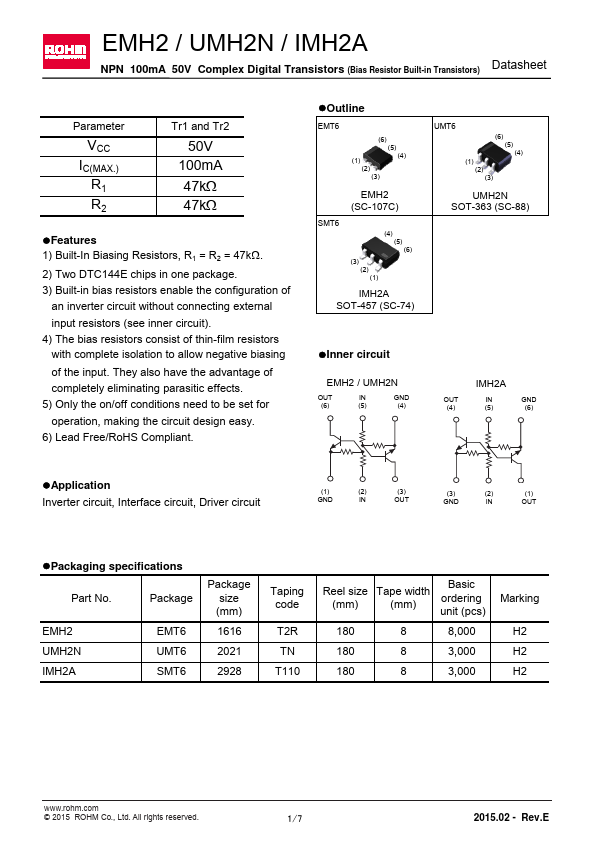

EMH2 / UMH2N / IMH2A Transistors General purpose (dual digital transistors) EMH2 / UMH2N / IMH2A !Features 1) Two DTC144Es chips in a EMT or UMT or SMT package. 2) Mounting possible with EMT3 or UMT3 or SMT3 automatic mounting machines. 3) Transistor elements are independent, eliminating interference. 4) Mounting cost and area can be cut in half. !External dimensions (Units : mm) EMH2 0.22 (4) (5) (6) (3) (2) 1.2 1.6 (1) 0.13 All terminals have same dimensions Abbreviated symbol : H2 1.3 0.65 0.7 0.8 1.1 0.9 0.2 (6) 1.25 The following characteristics apply to both DTr1 and DTr2. 0.15 2.1 !Equivalent circuit EMH2 / UMH2N (3) (2) (1) R1 R 2 DTr1 DTr2 R2 R1 (4) (5) R1=47kΩ R2=47kΩ DTr2 R2 R1 (3) (2) R1=47kΩ R2=47kΩ 0.1Min. 0to0.

Published: Apr 5, 2005 |
