RK3399 - high-performance processor

Description

2020-3-20 2.1 Update function IO description 2019-10-10 2.0 Add some feature 2018-10-30 1.9 Update the description of openGL ES 2018-5-29 1.8 Add RK3399K information 2017-6-1 1.7 Updated the description about “power supply for IO” 2017-3-1 1.6 Up

Features

  • section 2016-5-04 1.0.
  • Initial Release Copyright © 2020 Fuzhou Rockchip Electronics Co. , Ltd. -2- RK3399 Datasheet Rev 2.1 Table of Content Table of Content 3 Figure Index 5 Table Index 6 Chapter 1 Introduction 8 1.1 Overview 8 1.2 Features 8 1.3 Block Diagram 26 Chapter 2 Package information 27 2.1 Ordering information 27 2.2 Top Marking27 2.3 Dimension 28 2.4 Ball Map30 2.5 Ball Pin Number Order 37 2.6 Power/ground IO.

📥 Download Datasheet

Datasheet Details

Part number RK3399
Manufacturer Rockchip
File Size 4.81 MB
Description high-performance processor
Datasheet download datasheet RK3399 Datasheet

📁 Similar Datasheet

  • RK33 - Schottky Barrier Diodes (Sanken electric)
  • RK33 - SCHOTTKY BARRIER RECTIFIER DIODES (EIC discrete Semiconductors)
  • RK3055E - 10V Drive Nch MOSFET (Rohm)
  • RK34 - Schottky Barrier Diodes (Sanken electric)
  • RK34 - SCHOTTKY BARRIER RECTIFIER DIODES (EIC discrete Semiconductors)
  • RK36 - Schottky Barrier Diodes 60V (Sanken electric)
  • RK36 - SCHOTTKY BARRIER RECTIFIER DIODES (EIC discrete Semiconductors)
  • RK39 - Schottky Barrier Diodes 90V (Sanken electric)
  • RK39 - SCHOTTKY BARRIER RECTIFIER DIODES (EIC discrete Semiconductors)
Other Datasheets by Rockchip
  • RK3399Pro - high-performance processor
  • RK3308 - high-performance Quad-core application processor
  • RK3308B - high-performance Quad-core application processor
  • RK3308H3 - high-performance Quad-core application processor
  • RK3326 - high-performance Quad-core application processor
  • RK3326-S - high-performance Quad-core application processor
  • RK3328 - high-performance Quad-core application processor
  • RK3368 - high-performance processor

Full PDF Text Transcription

Click to expand full text

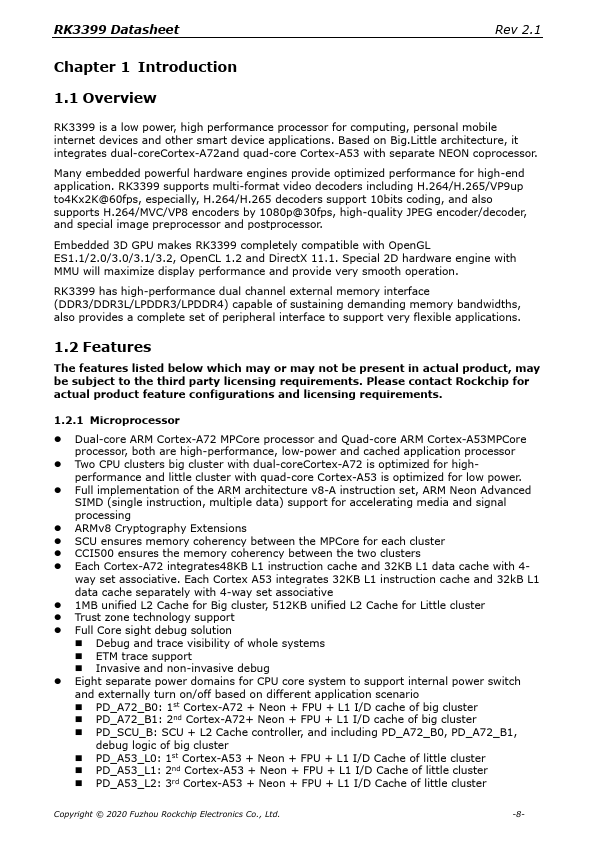

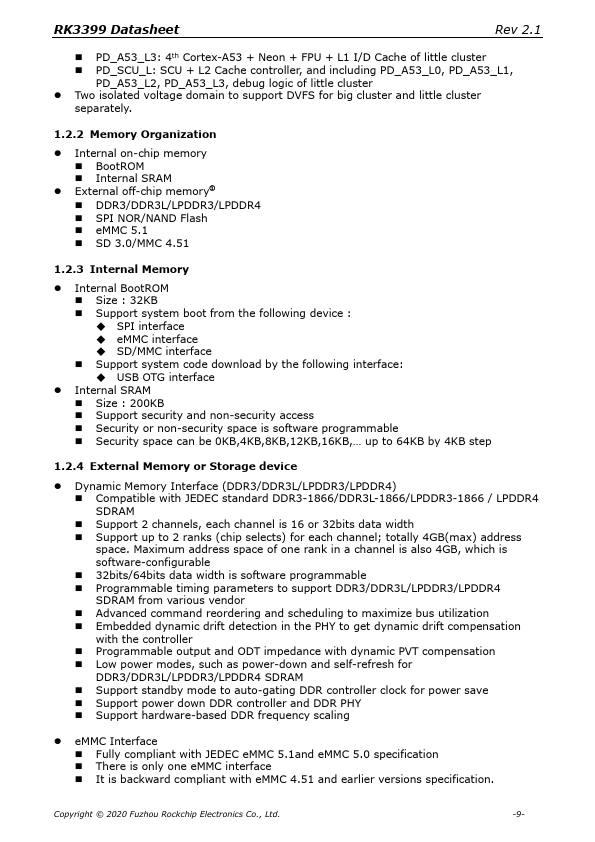

RK3399 Datasheet Rev 2.1 Rockchip RK3399 Datasheet Revision 2.1 Mar. 2020 Copyright © 2020 Fuzhou Rockchip Electronics Co., Ltd. -1- RK3399 Datasheet Rev 2.1 Date Revision Revision History Description 2020-3-20 2.1  Update function IO description 2019-10-10 2.0  Add some feature 2018-10-30 1.9  Update the description of openGL ES 2018-5-29 1.8  Add RK3399K information 2017-6-1 1.7  Updated the description about “power supply for IO” 2017-3-1 1.6  Update 2016-12-20 1.5  Update “Recommended Operating Conditions” for CPU A72  Removed repeated “EMMC_COREDLL_0V9” in section 3.2 2016-12-06 1.4  Add ball description for “EMMC_COREDLL_0V9” in section 2.6 2016-10-30 1.3  Updated ball description for DDR1 in section 2.6 2016-9-30 1.
