RTQ9128DL-QA - Digital Input 4-Channel Automotive Audio Amplifier

Description

The RTQ9128DL-QA is an ultra-low output noise, highefficiency, four-channel class-D audio power amplifier.

It delivers 4x27W into 4 at 10% THD+N from a 14.4V supply in automotive applications.

Features

comprehensive diagnostics array specially designed for automotive.

Richtek

📥 Download Datasheet

Datasheet Details

Part number	RTQ9128DL-QA
Manufacturer	Richtek
File Size	2.60 MB
Description	Digital Input 4-Channel Automotive Audio Amplifier
Datasheet	RTQ9128DL-QA Datasheet
Additional preview pages of the RTQ9128DL-QA datasheet.

📁 Similar Datasheet

RTQ020N03 - MOSFET (Rohm)
RTQ020N05 - Nch 45V 2A Power MOSFET (Rohm)
RTQ025P02 - DC-DC Converter (20V/ 2.5A) (Rohm)
RTQ030P02 - DC-DC Converter (20V/ 3.0A) (Rohm)
RTQ030P02TR - DC-DC Converter (20V/ 3.0A) (Rohm)
RTQ035N03 - 2.5V Drive Nch MOS FET (Rohm)
RTQ035P02 - DC-DC Converter (20V/ 3.5A) (Rohm)
RTQ045N03 - MOSFET (Rohm)
RTQ045N03FRA - 2.5V Drive Nch MOS FET (Rohm)
RTQ045N03HZG - Nch 30V 4.5A Small Signal MOSFET (ROHM)

Other Datasheets by Richtek

RTQ9297-QT - 3A High Performance Step-Up DC-DC Converter
RTQ9683 - Smart Power Stage Module
RTQ9728W - Precision Adjustable Current-Limited Power-Distribution Switches
RTQ9740A - Ultra-Low Resistance Load Switch
RTQ1741A - High Efficiency Single Inductor Buck-Boost Converter
RTQ2071-QA - Automotive CIS/CCM PMIC
RTQ2072-QA - Automotive CIS/CCM PMIC
RTQ2072-QT - Automotive CIS/CCM PMIC

Full PDF Text Transcription

Click to expand full text

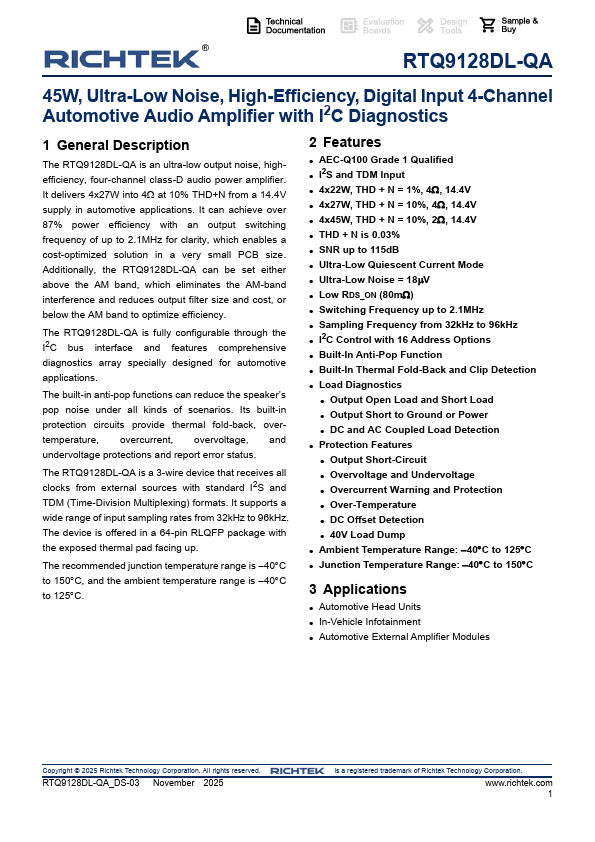

RTQ9128DL-QA 45W, Ultra-Low Noise, High-Efficiency, Digital Input 4-Channel Automotive Audio Amplifier with I2C Diagnostics 1 General Description The RTQ9128DL-QA is an ultra-low output noise, highefficiency, four-channel class-D audio power amplifier. It delivers 4x27W into 4 at 10% THD+N from a 14.4V supply in automotive applications. It can achieve over 87% power efficiency with an output switching frequency of up to 2.1MHz for clarity, which enables a cost-optimized solution in a very small PCB size. Additionally, the RTQ9128DL-QA can be set either above the AM band, which eliminates the AM-band interference and reduces output filter size and cost, or below the AM band to optimize efficiency.
