RTQ5132 - DDR5 Client VR on DIMM PMIC

Description

The RTQ5132 is an integrated solution for DDR5 SODIMM and UDIMM power management IC.

This device provides 1 dual-phase converter, 1 single phase converter and 2 LDOs.

The RTQ5132 is available in a WQFN-28L 3x4 (FC) package.

10C to 125C and amb

Features

  • VIN_Bulk with Wide Input Supply Range: 4.25V to 5.5V.
  • High Integration:.
  • 1 Configurable Dual-Phase or Single-Phase Converters (SWA, SWB),.
  • 1 Single-Phase Converters (SWC).
  • 2 LDOs (VLDO_1.8V, VLDO_1.0V).
  • Support I2C and I3C Slave Control.
  • Automatic Input Supply for LDOs.
  • MTP Registers with Secured R/W Access.
  • 0.75% Converter Output Accuracy.
  • Integrated Sequencing Control for DDR5 VR on DIMM Platform.
  • Support Pure MLCC Output Capacitor Stable.

📥 Download Datasheet

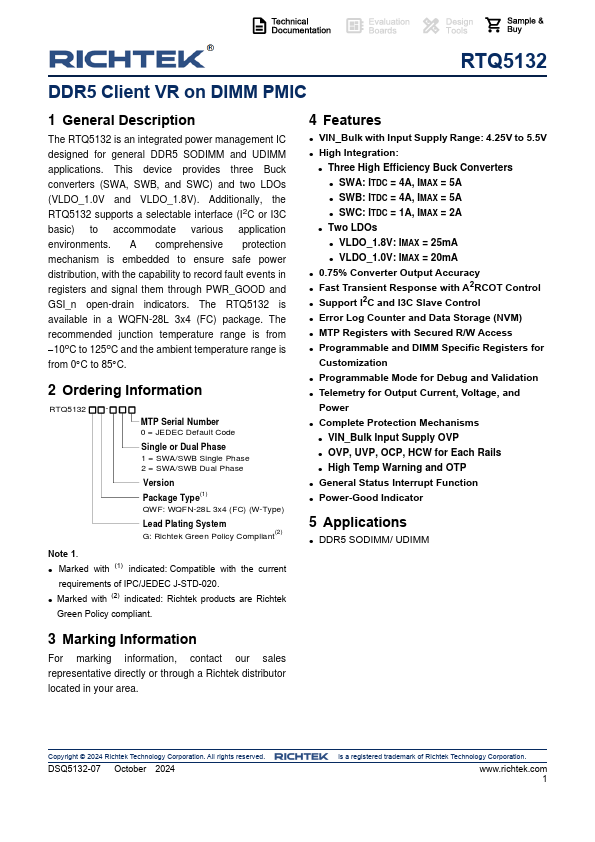

Datasheet preview – RTQ5132

Datasheet Details

Part number RTQ5132
Manufacturer Richtek
File Size 2.14 MB
Description DDR5 Client VR on DIMM PMIC
Datasheet download datasheet RTQ5132 Datasheet
Additional preview pages of the RTQ5132 datasheet.

📁 Similar Datasheet

Other Datasheets by Richtek

Full PDF Text Transcription

Click to expand full text
RTQ5132 DDR5 Client VR on DIMM PMIC General Description The RTQ5132 is an integrated solution for DDR5 SODIMM and UDIMM power management IC. This device provides 1 dual-phase converter, 1 single phase converter and 2 LDOs. The RTQ5132 is available in a WQFN-28L 3x4 (FC) package. The Recommended junction temperature range is −10C to 125C and ambient temperature range is 0C to 85C. Ordering Information RTQ5132 Note: MTP Serial Number 0 = JEDEC Default Code Single or Dual Phase 1 = SWA/SWB Single Phase 2 = SWA/SWB Dual Phase Version Package Type QWF: WQFN-28L 3x4 (FC) (W-Type) Lead Plating System G: Richtek Green Policy Compliant Richtek products are Richtek Green Policy compliant and compatible with the current requirements of IPC/JEDEC J-STD-020.
