RTQ2105-QA - High Efficiency Synchronous Step-Down Converter

Datasheet Summary

Description

The RTQ2105 is a 3A, high-efficiency, current mode synchronous step-down converter which is optimized for automotive applications.

The device operates with input voltages from 3V to 36V and is protected from load dump transients up to 42V, eases input surge protection design.

Features

AEC-Q100 Grade 1 Qualified.
Wide Input Voltage Range  4V to 36V (steady-state operation after VOUT settle)  3V to 36V (Soft-start is finished).
Maximum Output Current : 3A.
Peak Current Mode Control.
Integrated 70mΩ Switch and 70mΩ Synchronous Rectifier.
Low Quiescent Current : 40μA.
Fast 60ns Minimum Switch On-Time.
Ultra-Short 65ns Minimum Switch Off-Time.
Adjustable and Synchronizable Switching : 300kHz to 2.2MHz.
Selectable PSM/FPWM at Lig.

Datasheet Details

Part number	RTQ2105-QA
Manufacturer	Richtek
File Size	832.22 KB
Description	High Efficiency Synchronous Step-Down Converter
Datasheet	RTQ2105-QA Datasheet

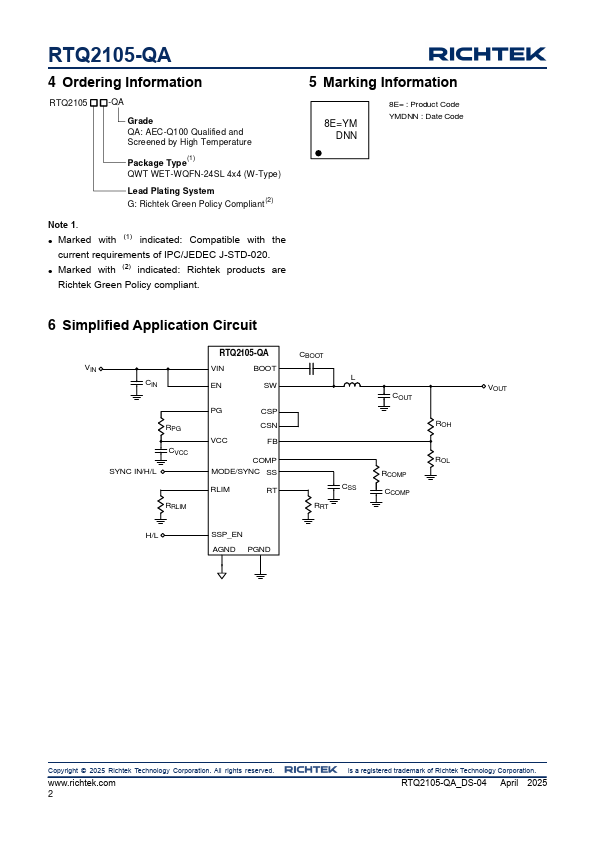

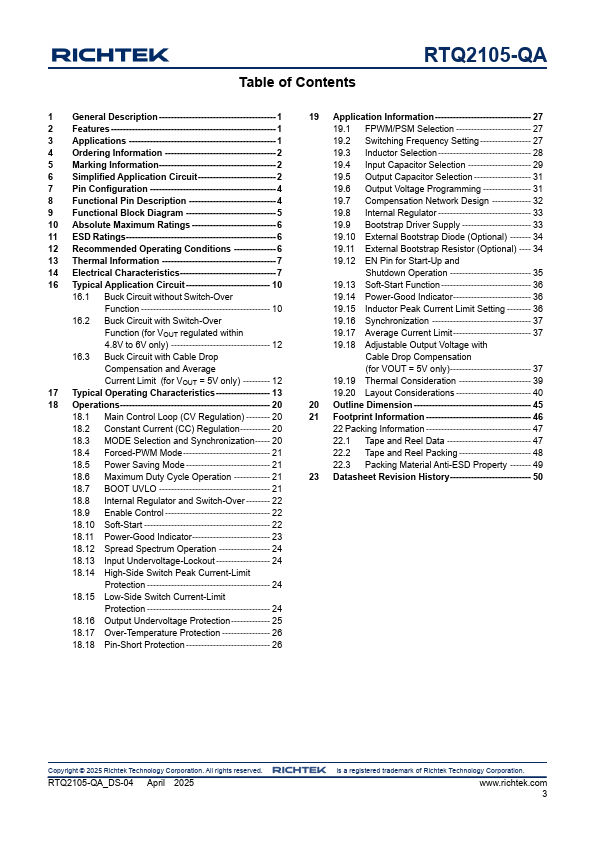

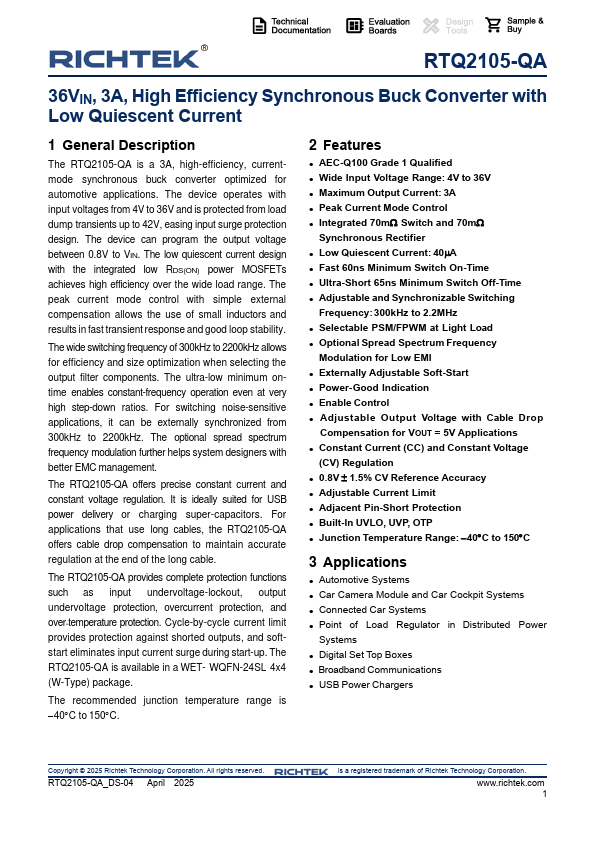

Additional preview pages of the RTQ2105-QA datasheet.

📁 Similar Datasheet

RTQ020N03 - MOSFET (Rohm)

RTQ020N05 - Nch 45V 2A Power MOSFET (Rohm)

RTQ025P02 - DC-DC Converter (20V/ 2.5A) (Rohm)

RTQ030P02 - DC-DC Converter (20V/ 3.0A) (Rohm)

RTQ030P02TR - DC-DC Converter (20V/ 3.0A) (Rohm)

RTQ035N03 - 2.5V Drive Nch MOS FET (Rohm)

RTQ035P02 - DC-DC Converter (20V/ 3.5A) (Rohm)

RTQ045N03 - MOSFET (Rohm)

RTQ045N03FRA - 2.5V Drive Nch MOS FET (Rohm)

RTQ045N03HZG - Nch 30V 4.5A Small Signal MOSFET (ROHM)

Full PDF Text Transcription

Click to expand full text

® RTQ2105-QA 36VIN, 3A, High Efficiency Synchronous Step-Down Converter with Low Quiescent Current General Description The RTQ2105 is a 3A, high-efficiency, current mode synchronous step-down converter which is optimized for automotive applications. The device operates with input voltages from 3V to 36V and is protected from load dump transients up to 42V, eases input surge protection design. The device can program the output voltage between 0.8V to VIN. The low quiescent current design with the integrated low RDS(ON) power MOSFETs achieves high efficiency over the wide load range. The peak current mode control with simple external compensation allows the use of small inductors and results in fast transient response and good loop stability.
