RT9624E - Single Phase Synchronous Rectified Buck MOSFET Driver

Description

The RT9624E is a high frequency, synchronous rectified, single phase MOSFET driver designed for normal MOSFET driving applications and high performance CPU VR driving capabilities.

The RT9624E can be supplied from 4.5V to 13.2V.

The applicable power stage VIN range is from 5V to 24V.

Features

  • z Drive Two N-MOSFETs z Shoot Through Protection z Embedded Bootstrap Diode z Support High Switching Frequency z Fast Output Rising Time z Tri-State PWM Input for Output Shutdown z Enable Control z 8-Lead WDFN Package z RoHS Compliant and Halogen Free.

📥 Download Datasheet

Datasheet Details

Part number RT9624E
Manufacturer Richtek
File Size 187.32 KB
Description Single Phase Synchronous Rectified Buck MOSFET Driver
Datasheet download datasheet RT9624E Datasheet

📁 Similar Datasheet

  • RT9603 - Synchronous-Rectified Buck MOSFET Drivers (Richiek)
  • RT9605A - Triple-Channel Synchronous-Rectified Buck MOSFET Driver (Richtek Technology Corporation)
  • RT9605B - Triple-Channel Synchronous-Rectified Buck MOSFET Driver (Richtek Technology Corporation)
  • RT9607 - Dual Channel Synchronous-Rectified Buck MOSFET Driver (Richtek Technology)
  • RT9607A - Dual Channel Synchronous-Rectified Buck MOSFET Driver (Richtek Technology)
  • RT9618 - Synchronous-Rectified Buck MOSFET Drivers (Richtek Technology Corporation)
  • RT9618A - Synchronous-Rectified Buck MOSFET Drivers (Richtek Technology Corporation)
  • RT9619 - Synchronous-Rectified Buck MOSFET Drivers (Richtek Technology Corporation)
  • RT9619A - Synchronous-Rectified Buck MOSFET Drivers (Richtek Technology Corporation)
  • RT9643 - 5 Channel ACPI Regulator (Richtek Technology Corporation)
Other Datasheets by Richtek
  • RT9624A - Single Phase Synchronous Rectified Buck MOSFET
  • RT9624B - Single Phase Synchronous Rectified Buck MOSFET Driver
  • RT9624C - Single Phase Synchronous Rectified Buck MOSFET Driver
  • RT9624D - Single Phase Synchronous Rectified Buck MOSFET Driver
  • RT9624F - Single Phase Synchronous Rectified Buck MOSFET Driver
  • RT9624G - Single Phase Synchronous Rectified Buck MOSFET Driver
  • RT9624H - Single Phase Synchronous Rectified Buck MOSFET Driver
  • RT9625A - Dual-Channel Synchronous Rectified MOSFET Driver

Full PDF Text Transcription

Click to expand full text

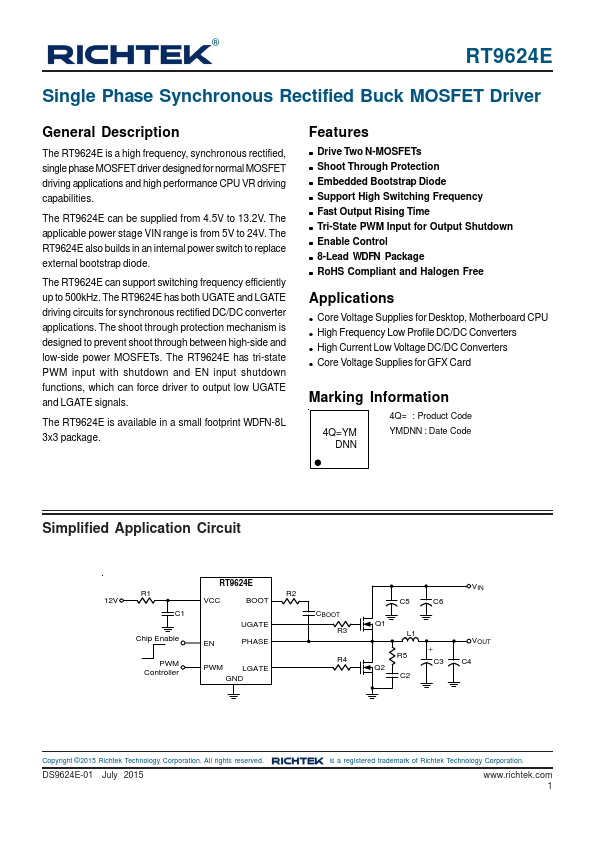

® RT9624E Single Phase Synchronous Rectified Buck MOSFET Driver General Description The RT9624E is a high frequency, synchronous rectified, single phase MOSFET driver designed for normal MOSFET driving applications and high performance CPU VR driving capabilities. The RT9624E can be supplied from 4.5V to 13.2V. The applicable power stage VIN range is from 5V to 24V. The RT9624E also builds in an internal power switch to replace external bootstrap diode. The RT9624E can support switching frequency efficiently up to 500kHz. The RT9624E has both UGATE and LGATE driving circuits for synchronous rectified DC/DC converter applications. The shoot through protection mechanism is designed to prevent shoot through between high-side and low-side power MOSFETs.
