RT8093 - 2.7MHz 3A Step-Down Converter

Datasheet Summary

Description

The RT8093 is a full featured 5.5V, 3A, Constant-On-Time (COT) synchronous step-down converter with two integrated MOSFETs.

Features

  • 2.5V to 5.5V Input Voltage Range.
  • Current Mode COT Control Loop Design.
  • Fast Transient Response.
  • Internal 48mΩ and 22mΩ Synchronous Rectifier.
  • Highly Accurate VOUT Regulation Over Load/Line Range.
  • Robust Loop Stability with Low-ESR COUT.

📥 Download Datasheet

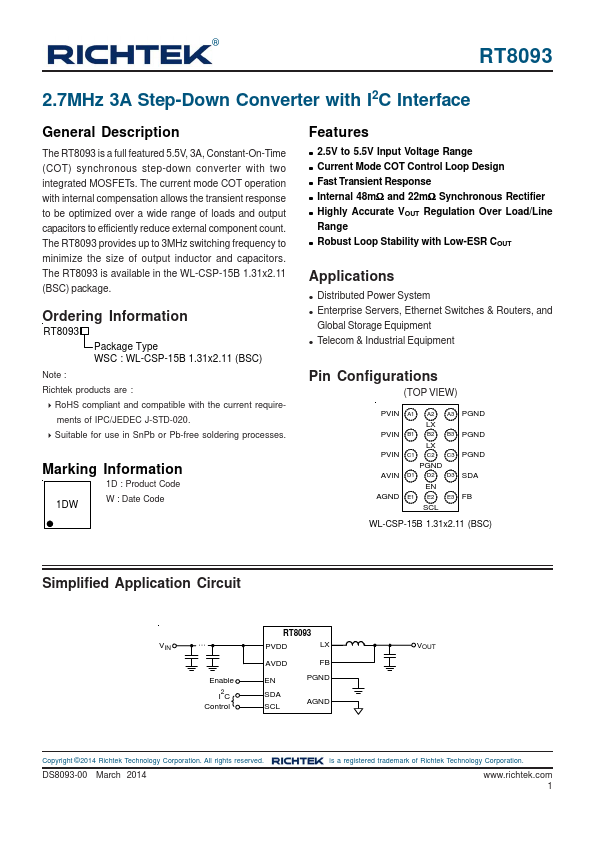

Datasheet preview – RT8093

Datasheet Details

Part number RT8093
Manufacturer Richtek
File Size 215.86 KB
Description 2.7MHz 3A Step-Down Converter
Datasheet download datasheet RT8093 Datasheet

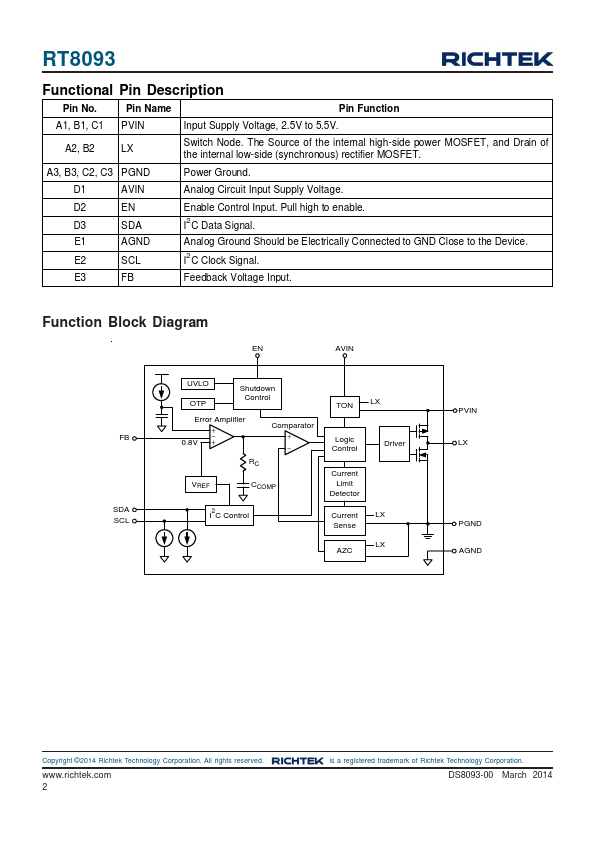

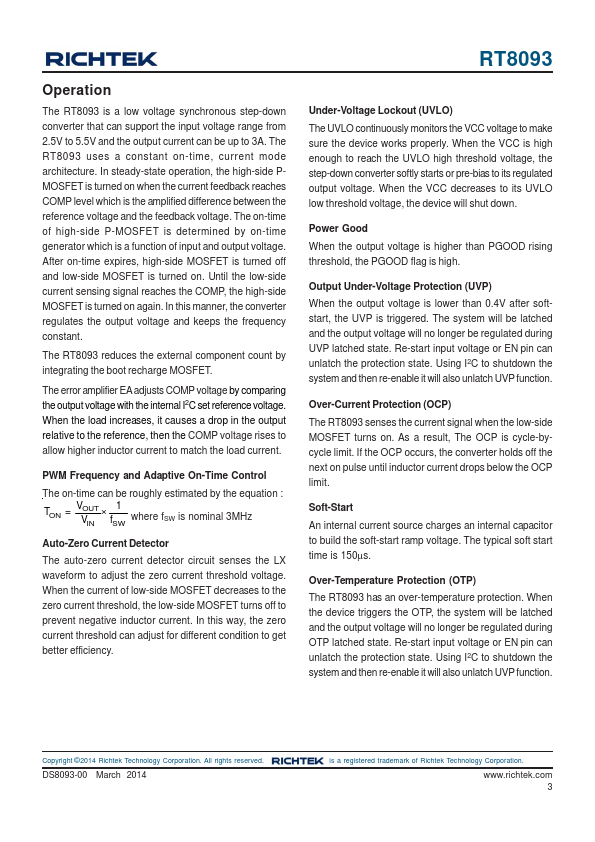

Additional preview pages of the RT8093 datasheet.

📁 Similar Datasheet

  • RT8004 - Synchronous Step-Down Regulator (Richtek Technology)
  • RT8015 - Synchronous Step-Down Regulator (Richtek Technology)
  • RT8015B - Synchronous Step-Down Converter (Richtek Technology)
  • RT805 - AUTOMOTIVE BRIDGE RECTIFIERS (LRC)
  • RT81 - AUTOMOTIVE BRIDGE RECTIFIERS (LRC)
  • RT810 - AUTOMOTIVE BRIDGE RECTIFIERS (LRC)
  • RT8100A - Synchronous buck PWM DC/DC (Richtek Technology Corporation)
  • RT8101 - 12V Synchronous Buck PWM DC-DC (Richtek Technology Corporation)
  • RT8101A - 12V Synchronous Buck PWM DC-DC (Richtek Technology Corporation)
  • RT8105 - 5V/12V Synchronous Buck PWM DC-DC Controller (RichTek Technology)
Other Datasheets by Richtek
  • RT8092 - 3MHz 4A High Efficiency Step-Down Converter
  • RT8096A - 6V CMCOT Synchronous Step-Down Converter
  • RT8096C - CMCOT Synchronous Step-Down Converter
  • RT8097A - CMCOT Synchronous Step-Down Converter
  • RT8097B - 6V CMCOT Synchronous Step-Down Converter
  • RT8097C - 6V CMCOT Synchronous Step-Down Converter
  • RT8097D - 6V CMCOT Synchronous Step-Down Converter
  • RT8099 - High Efficiency PWM Step-Down Converter

Full PDF Text Transcription

Click to expand full text
® RT8093 2.7MHz 3A Step-Down Converter with I2C Interface General Description The RT8093 is a full featured 5.5V, 3A, Constant-On-Time (COT) synchronous step-down converter with two integrated MOSFETs. The current mode COT operation with internal compensation allows the transient response to be optimized over a wide range of loads and output capacitors to efficiently reduce external component count. The RT8093 provides up to 3MHz switching frequency to minimize the size of output inductor and capacitors. The RT8093 is available in the WL-CSP-15B 1.31x2.11 (BSC) package. Ordering Information RT8093 Package Type WSC : WL-CSP-15B 1.31x2.11 (BSC) Note : Richtek products are :  RoHS compliant and compatible with the current requirements of IPC/JEDEC J-STD-020.
