RT6323 - 23V Synchronous Step-Down Converter

Datasheet Summary

Description

The RT6323 is a high-efficiency synchronous stepdown converter with a pseudo-constant switching frequency 600kHz, delivering up to 8A continuous and 10A peak output current.

The RT6323 operates from 3V to 23V input voltage.

Features

including the cycle-by-cycle current limit, OVP, UVP, input UVLO, and OTP. All functions are integrated in a VQFN-13L 2x3 (FC) package. The recommended junction temperature range is from.
40C to 125C. 2 Features.
Input Voltage Range: 3V to 23V.
Output Voltage: 0.65V/0.78V/0.85V/0.95V (VDD_MEM 2-Bit VID Control).
8A Continuous and 10A Peak Output Current.
Pseudo Constant Switching Frequency 600kHz in CCM.
Internal Power MOSFET Switch 33m (High- Side) and 12m.

Richtek

📥 Download Datasheet

Datasheet Details

Part number	RT6323
Manufacturer	Richtek
File Size	1.07 MB
Description	23V Synchronous Step-Down Converter
Datasheet	RT6323 Datasheet

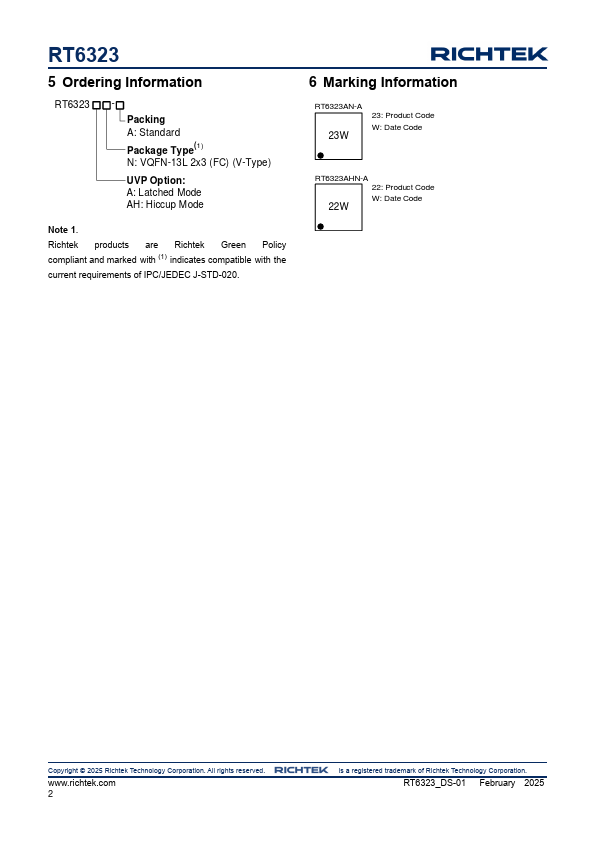

Additional preview pages of the RT6323 datasheet.

📁 Similar Datasheet

RT600 - Dual-core microcontroller (NXP)
RT6105X - NPN SILICON RF POWER TRANSISTOR (Advanced Semiconductor)
RT6200G - 600mA Synchronous Step-down DCDC Converter (tokmas)
RT6206 - 300mA LDO LINEAR VOLTAGE/REGULATORS (Racetek)
RT6588 - REMOTE CONTROL ENCODER AND DECODER PAIRED (Rato)

Other Datasheets by Richtek

RT6320 - 23V Synchronous Step-Down Converter
RT6321 - 23V Synchronous Step-Down Converter
RT6300A - Complete LPDDR5/5X Memory Power Solution
RT6301A - Complete LPDDR5/5X Memory Power Solution
RT6310 - 23V Synchronous Step-Down Converter
RT6316B - 23V Synchronous Step-Down Converter
RT6316C - 23V Synchronous Step-Down Converter
RT6318B - 23V Synchronous Step-Down Converter

Full PDF Text Transcription

Click to expand full text

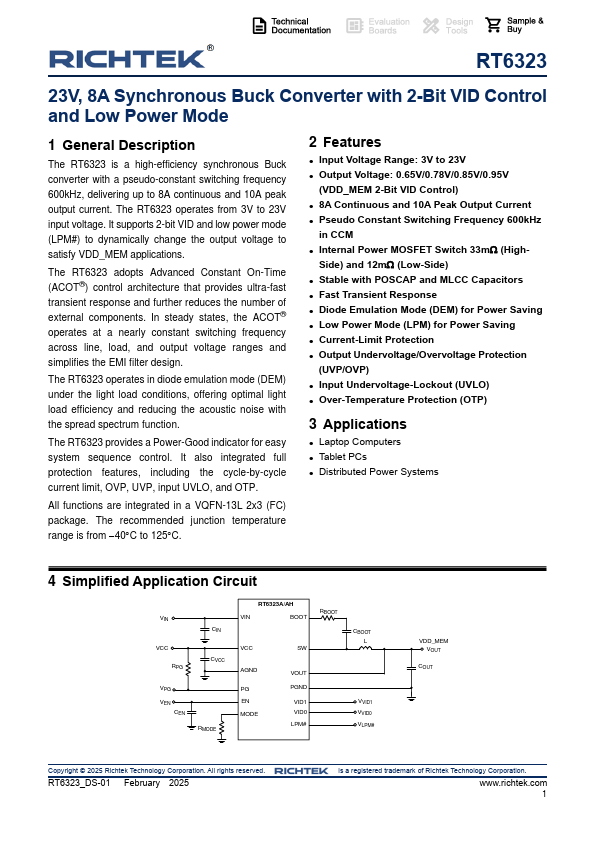

RT6323 8A, 23V Synchronous Step-Down Converter with 2-Bit VID Control and Low Power Mode 1 General Description The RT6323 is a high-efficiency synchronous stepdown converter with a pseudo-constant switching frequency 600kHz, delivering up to 8A continuous and 10A peak output current. The RT6323 operates from 3V to 23V input voltage. It supports 2-bit VID and low power mode (LPM#) to dynamically change the output voltage to satisfy VDD_MEM applications. The RT6323 adopts Advanced Constant On-Time (ACOT® ) control architecture that provides ultra-fast transient response and further reduces the number of external components. In steady states, the ACOT® operates at a nearly constant switching frequency across line, load, and output voltage ranges and simplifies the EMI filter design.

Published: Dec 25, 2024 |
