RT9718 - Over Voltage Protection

Datasheet Summary

Description

The RT9718 is an integrated circuit optimized to protect low voltage system from abnormal high input voltage (up to 30V).

The IC monitors the input voltage, battery voltage and the charging current to make sure all three parameters are operated in normal range.

Features

  • Fully Integrated Protection Function  Programmable OCP  Input OVP  Battery OVP.
  • Withstand High Input Voltage Up to 30V.
  • Over Voltage Turn Off Time Less Than 1us.
  • High Accuracy Protection Thresholds.
  • Over Temperature Protection.
  • High Immunity of False Triggering Under Transients.
  • Warning Indication Output.
  • Enable Input.
  • Thermal Enhanced WDFN Package.
  • RoHS Compliant and Halogen Free.

📥 Download Datasheet

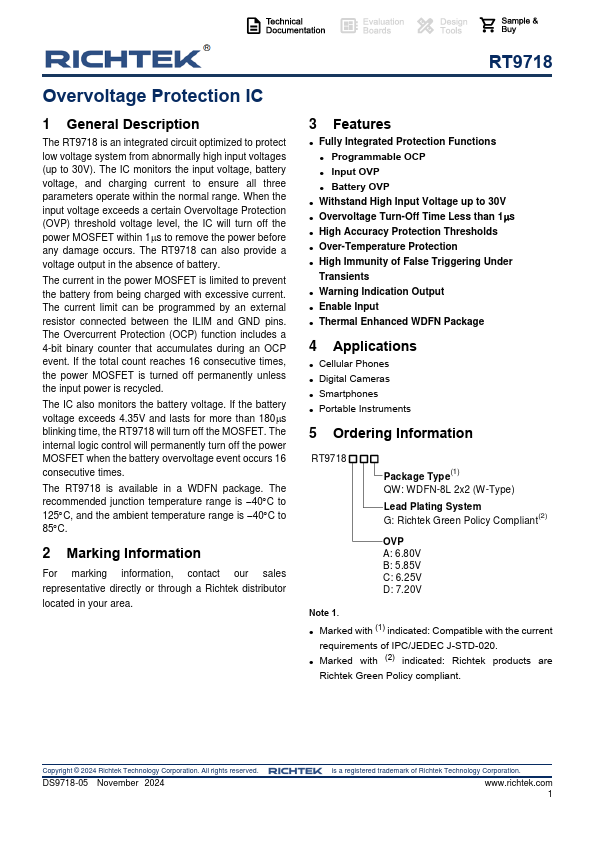

Datasheet preview – RT9718

Datasheet Details

Part number RT9718
Manufacturer Richtek Technology Corporation
File Size 195.93 KB
Description Over Voltage Protection
Datasheet download datasheet RT9718 Datasheet
Additional preview pages of the RT9718 datasheet.
