RT9125 - Inductor-Less Digital Audio

Description

The RT9125 is a high efficiency, I2S-input, stereo channel audio power amplifier delivering 2x30W into 8 BTL speaker loads.

It can deliver over 94% power efficiency and eliminate the need for heat-sink.

Features

  • three band DRC and flexible multi-band biquads for anti-clipping, power limiting, and speaker equalization. The recommended junction temperature range is.
  • 40C to 150C, and the ambient temperature range is.
  • 40C to 85C. 2 Ordering Information RT9125 - Packing A: Standard Package Type(1) N: VQFN-48L 6x6 (V-Type) (Exposed Pad-Option 1) Note 1. Richtek products are Richtek Green Policy compliant and marked with (1) indicates compatible with the current requirements of IPC/JED.

📥 Download Datasheet

Datasheet preview – RT9125

Datasheet Details

Part number RT9125
Manufacturer Richiek
File Size 4.74 MB
Description Inductor-Less Digital Audio
Datasheet download datasheet RT9125 Datasheet
Additional preview pages of the RT9125 datasheet.

📁 Similar Datasheet

  • RT9101 - Multi-Purpose Clip (Dallas Semiconductor)
  • RT9101 - Rotational Transducer / Voltage Divider (celesco)
  • RT9133A - Rail-to-Rail Operational Amplifier (Richtek)
  • RT9133B - Rail-to-Rail Operational Amplifier (Richtek)
  • RT9137 - Rail-to-Rail Operational Amplifier (Richtek)
  • RT9138 - Rail-to-Rail Operational Amplifier (Richtek)
  • RT9139 - Rail-to-Rail Operational Amplifier (Richtek)
  • RT9146 - Rail-to-Rail Operational Amplifier (Richtek)
  • RT9147 - Rail-to-Rail Operational Amplifier (Richtek)
  • RT9148 - Rail-to-Rail Operational Amplifier (Richtek)
Other Datasheets by Richiek
  • RT9120 - Class-D Digital Audio Amplifier
  • RT9120M - High-Efficiency Closed-Loop General-Purpose Class-D Digital Audio Amplifier
  • RT9120S - Class-D Audio Amplifier
  • RT9121 - 30W Stereo channel audio power amplifier
  • RT9123 - Class-D Audio Amplifier
  • RT9101 - 2.65W PWM Class-D Power Amplifier
  • RT9101CWSC - 2.65W PWM Class-D Power Amplifier
  • RT9101GQW - 2.65W PWM Class-D Power Amplifier

Full PDF Text Transcription

Click to expand full text

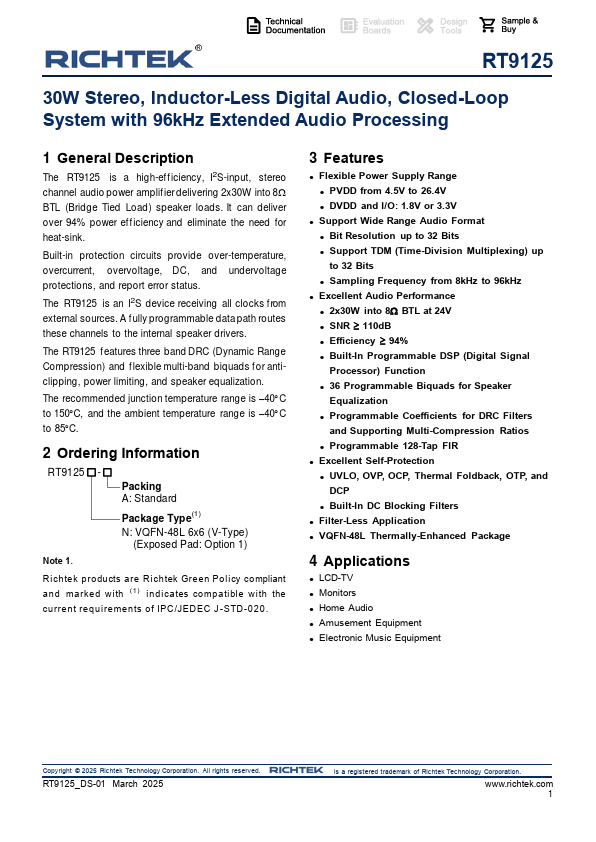

RT9125 30W Stereo, Inductor-Less Digital Audio, Closed-Loop System with 96kHz Extended Audio Processing 1 General Description The RT9125 is a high efficiency, I2S-input, stereo channel audio power amplifier delivering 2x30W into 8 BTL speaker loads. It can deliver over 94% power efficiency and eliminate the need for heat-sink. Built-in protection circuits can provide overtemperature, overcurrent, overvoltage, DC and undervoltage protections and report error status. The RT9125 is an I2S device receiving all clocks from external sources. A fully programmable data path routes these channels to the internal speaker drivers. The RT9125 features three band DRC and flexible multi-band biquads for anti-clipping, power limiting, and speaker equalization.
