2SJ387S - Silicon P-Channel MOSFET

Download the 2SJ387S datasheet PDF. This datasheet also covers the 2SJ387 variant, as both devices belong to the same silicon p-channel mosfet family and are provided as variant models within a single manufacturer datasheet.

General Description

High speed power switching REJ03G0862-0200 (Previous: ADE-208-1196) Rev.2.00 Sep 07, 2005

Key Features

  • Low on-resistance.
  • Low drive current.
  • 2.5 V Gate drive device can be driven from 3 V Source.
  • Suitable for Switching regulator, DC-DC converter Outline.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2SJ387-Renesas.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 2SJ387S
Manufacturer Renesas
File Size 92.32 KB
Description Silicon P-Channel MOSFET
Datasheet download datasheet 2SJ387S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ387S P-Channel MOSFET Hitachi Semiconductor
2SJ387S Silicon P-Channel MOSFET Kexin
2SJ387S 20V P-Channel MOSFET VBsemi
2SJ387 P-Channel MOSFET Hitachi Semiconductor
2SJ387 20V P-Channel MOSFET VBsemi

Other Datasheets by Renesas

Part Number Description
2SJ387 Silicon P-Channel MOSFET
2SJ387L Silicon P-Channel MOSFET
2SJ324 P-CHANNEL POWER MOSFET
2SJ324-Z P-CHANNEL POWER MOSFET
2SJ325 P-CHANNEL POWER MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

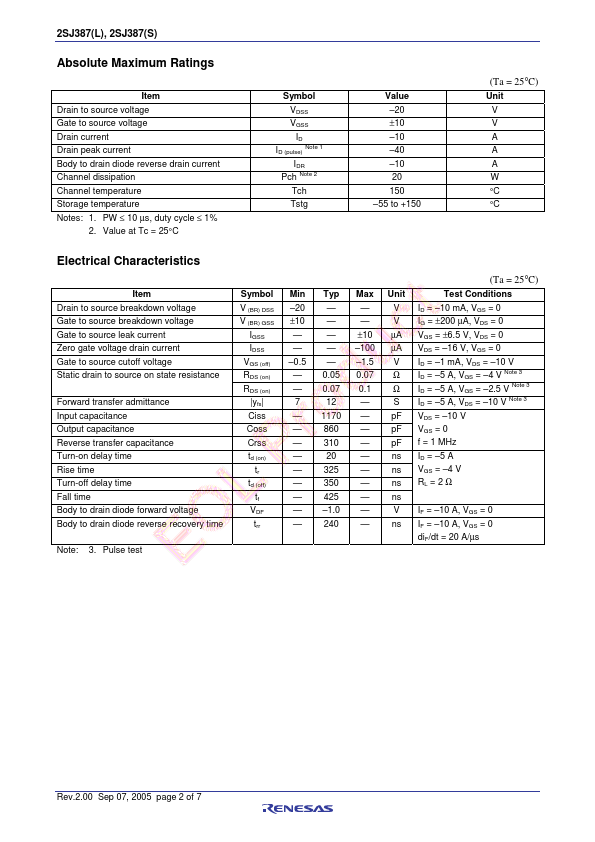

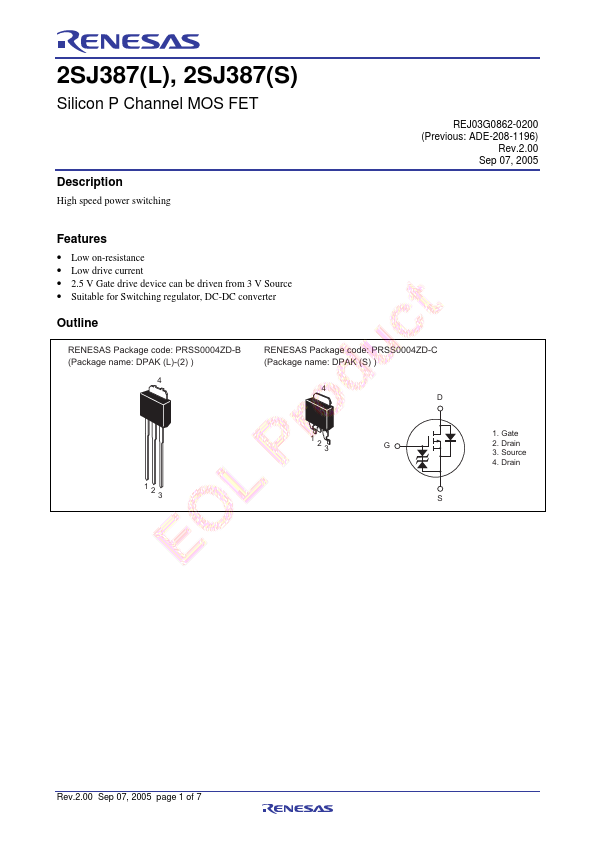

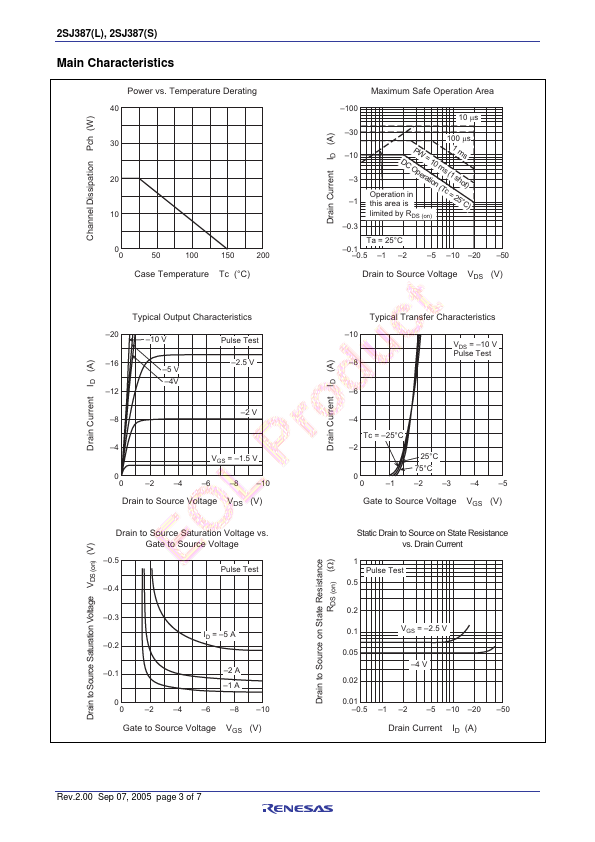

2SJ387(L), 2SJ387(S) Silicon P Channel MOS FET Description High speed power switching REJ03G0862-0200 (Previous: ADE-208-1196) Rev.2.00 Sep 07, 2005 Features • Low on-resistance • Low drive current • 2.5 V Gate drive device can be driven from 3 V Source • Suitable for Switching regulator, DC-DC converter Outline RENESAS Package code: PRSS0004ZD-B (Package name: DPAK (L)-(2) ) 4 RENESAS Package code: PRSS0004ZD-C (Package name: DPAK (S) ) 4 D 123 123 G S 1. Gate 2. Drain 3. Source 4. Drain Rev.2.00 Sep 07, 2005 page 1 of 7 2SJ387(L), 2SJ387(S) Absolute Maximum Ratings Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature Storage temperature Notes: 1.
