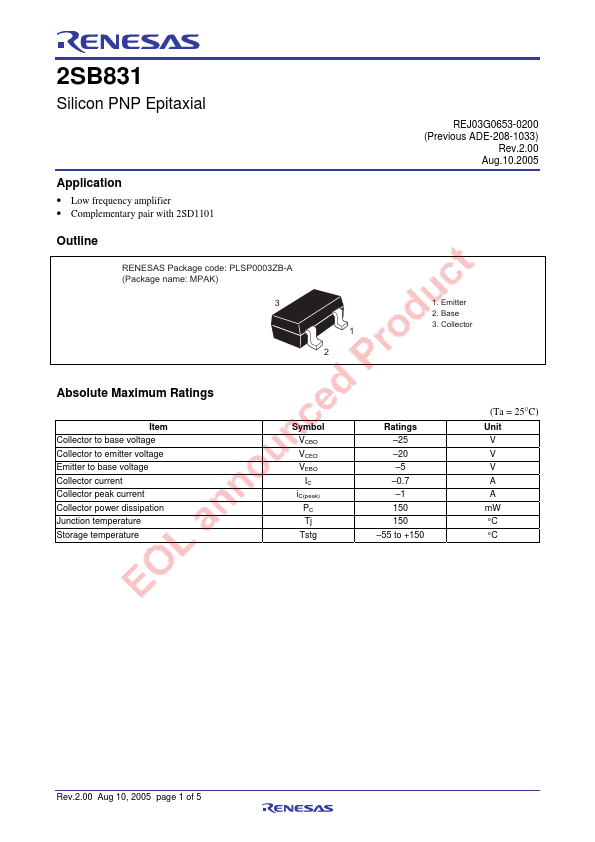

2SB831
Silicon PNP Epitaxial
Application
• Low frequency amplifier • Complementary pair with 2SD1101
Outline
RENESAS Package code: PLSP0003ZB-A (Package name: MPAK)
3
1 2
REJ03G0653-0200 (Previous ADE-208-1033)
Rev.2.00 Aug.10.2005
1. Emitter 2. Base 3. Collector
Absolute Maximum Ratings
Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature
Symbol VCBO VCEO VEBO IC iC(peak) PC Tj Tstg
Ratings –25 –20 –5 –0.7 –1 150 150
–55 to +150
(Ta = 25°C)
Unit V V V A A
mW °C °C

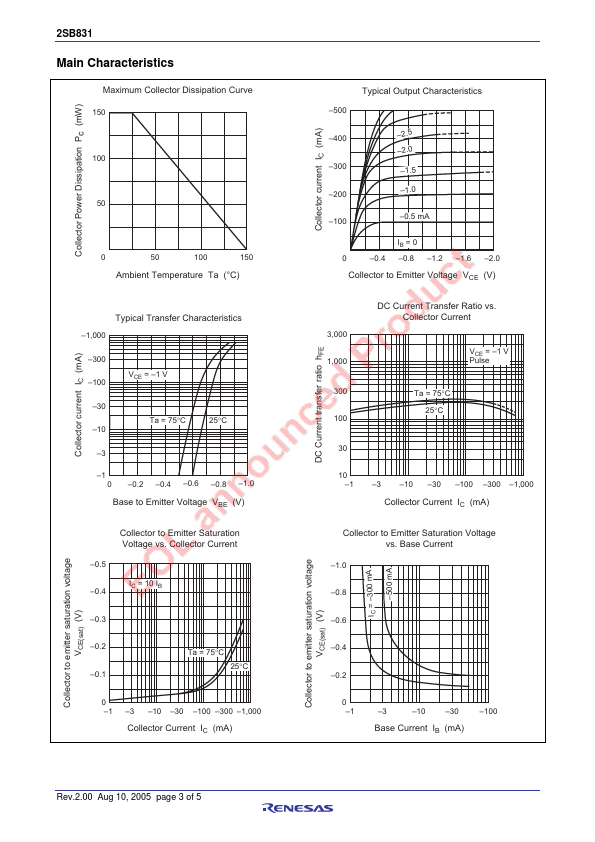

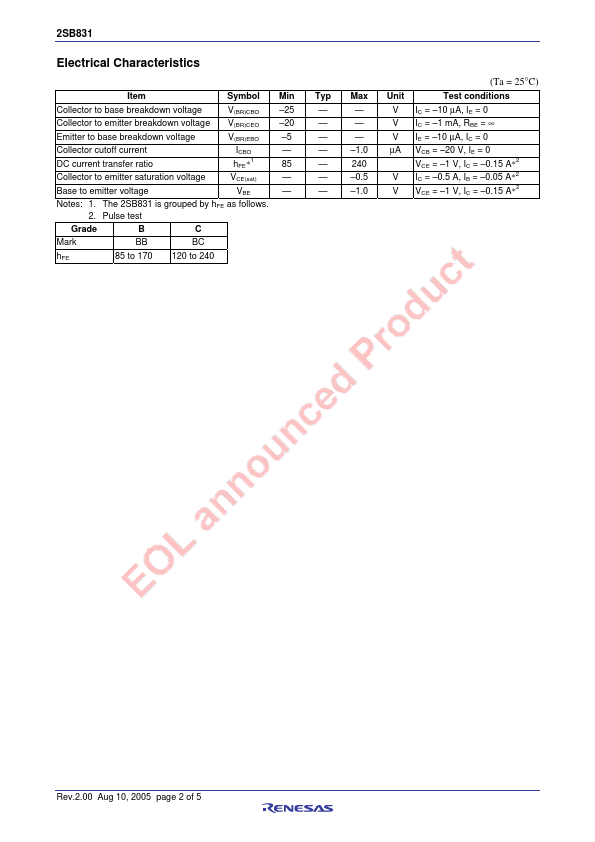

Rev.2.
2SB831 Datasheet
