HD4074829 - (HD404829R Series) AS Microcomputer Incorporating a LCD controller/Driver Circuit

This page provides the datasheet information for the HD4074829, a member of the HD4048212R (HD404829R Series) AS Microcomputer Incorporating a LCD controller/Driver Circuit family.

Datasheet Summary

Description

The HD404829R series incorporates an 8-bit A/D converter (four channels), a Liquid Crystal Display (LCD) and a serial interface, and has large-current Input/Output (I/O) pins.

Features

  • 1,876-digit × 4-bit RAM.
  • 44 I/O pins, including 10 high-current pins (15 mA, max. ) and 20 pins multiplexed with LCD segment pins.
  • Four timer/counters.
  • 8-bit input capture circuit.
  • Three timer outputs (including two PWM out-puts).
  • Two event counter inputs (including one double-edge function).
  • Clock-synchronous 8-bit serial interface.
  • A/D converter (4 channels × 8 bits).
  • LCD controller/driver (52 segments × 4 commons.

📥 Download Datasheet

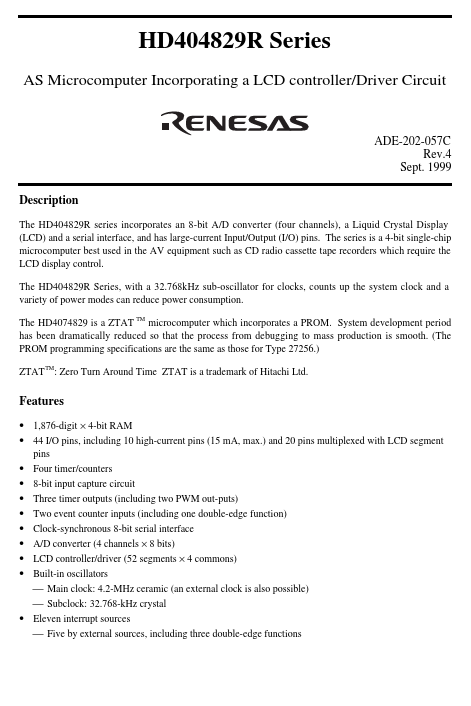

Datasheet preview – HD4074829

Datasheet Details

Part number HD4074829
Manufacturer Renesas Technology
File Size 785.60 KB
Description (HD404829R Series) AS Microcomputer Incorporating a LCD controller/Driver Circuit
