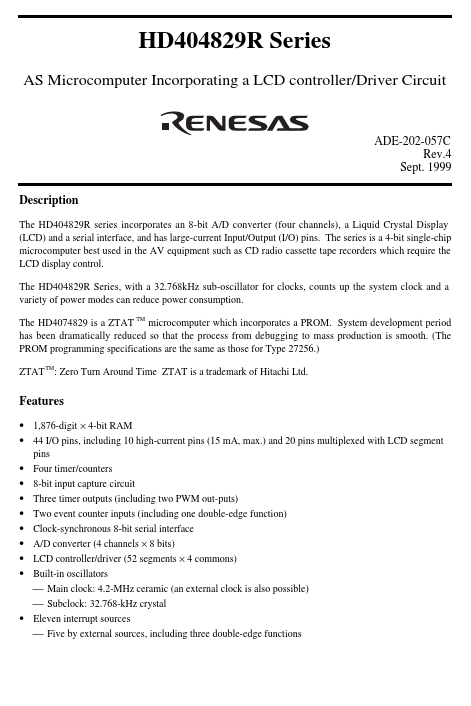

HD404829H - (HD404829R Series) AS Microcomputer Incorporating a LCD controller/Driver Circuit

Download the HD404829H datasheet PDF. This datasheet also covers the HD4048212R variant, as both devices belong to the same (hd404829r series) as microcomputer incorporating a lcd controller/driver circuit family and are provided as variant models within a single manufacturer datasheet.

Description

The HD404829R series incorporates an 8-bit A/D converter (four channels), a Liquid Crystal Display (LCD) and a serial interface, and has large-current Input/Output (I/O) pins.

Features

  • 1,876-digit × 4-bit RAM.
  • 44 I/O pins, including 10 high-current pins (15 mA, max. ) and 20 pins multiplexed with LCD segment pins.
  • Four timer/counters.
  • 8-bit input capture circuit.
  • Three timer outputs (including two PWM out-puts).
  • Two event counter inputs (including one double-edge function).
  • Clock-synchronous 8-bit serial interface.
  • A/D converter (4 channels × 8 bits).
  • LCD controller/driver (52 segments × 4 commons.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HD4048212R_RenesasTechnology.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HD404829H
Manufacturer Renesas
File Size 785.60 KB
Description (HD404829R Series) AS Microcomputer Incorporating a LCD controller/Driver Circuit
Datasheet download datasheet HD404829H Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HD404812 4-Bit Single-Chip Microcomputer Hitachi
HD404814 4-Bit Single-Chip Microcomputer Hitachi
HD404816 4-Bit Single-Chip Microcomputer Hitachi
HD404818 (HD40L481x Series) 4-Bit Single-Chip Microcomputer Hitachi
HD4048412 4-Bit Single-Chip Microcomputer Hitachi Semiconductor

Other Datasheets by Renesas

Part Number Description
HD404829FS (HD404829R Series) AS Microcomputer Incorporating a LCD controller/Driver Circuit
HD404829R (HD404829R Series) AS Microcomputer Incorporating a LCD controller/Driver Circuit
HD404829TF (HD404829R Series) AS Microcomputer Incorporating a LCD controller/Driver Circuit
HD4048212R (HD404829R Series) AS Microcomputer Incorporating a LCD controller/Driver Circuit
HD404828R (HD404829R Series) AS Microcomputer Incorporating a LCD controller/Driver Circuit

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com To all our customers Regarding the change of names mentioned in the document, such as Hitachi Electric and Hitachi XX, to Renesas Technology Corp. The semiconductor operations of Mitsubishi Electric and Hitachi were transferred to Renesas Technology Corporation on April 1st 2003. These operations include microcomputer, logic, analog and discrete devices, and memory chips other than DRAMs (flash memory, SRAMs etc.) Accordingly, although Hitachi, Hitachi, Ltd., Hitachi Semiconductors, and other Hitachi brand names are mentioned in the document, these names have in fact all been changed to Renesas Technology Corp. Thank you for your understanding.
