2SK3000 - Silicon N-Channel MOSFET

Key Features

  • Low on-resistance RDS(on) = 0.16 Ω typ. (VGS = 10 V, ID = 450 mA).
  • 4 V gate drive devices.
  • Small package (MPAK).

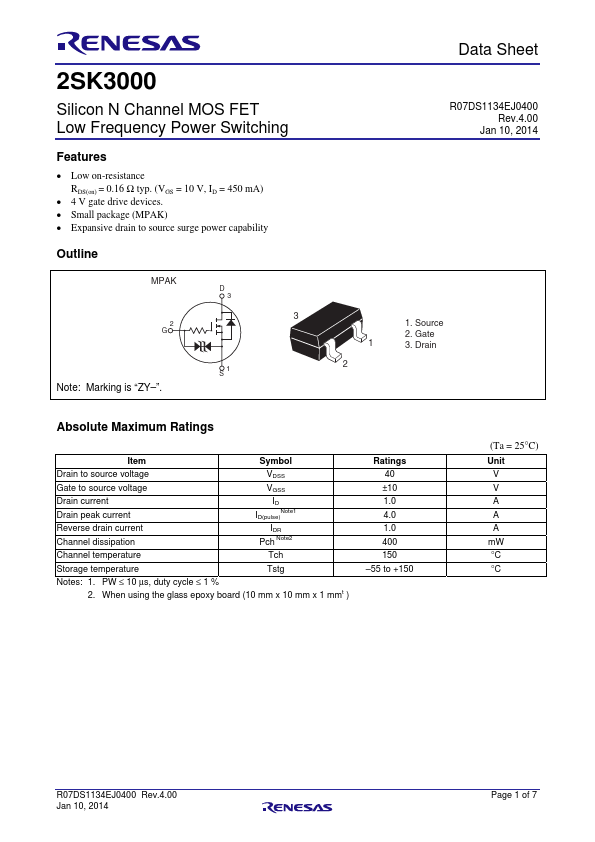

  • Expansive drain to source surge power capability Outline MPAK D 3 3 2 G 1 S Note: Marking is “ZY.

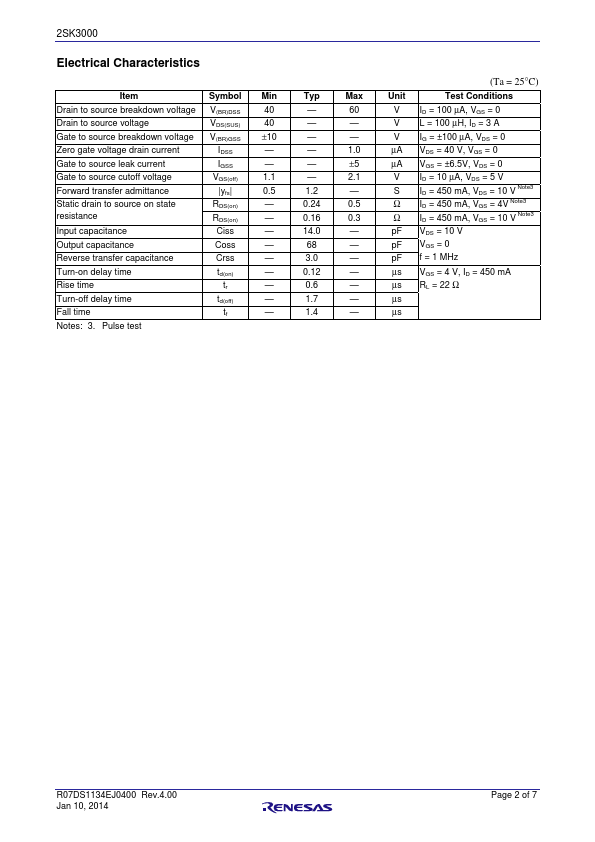

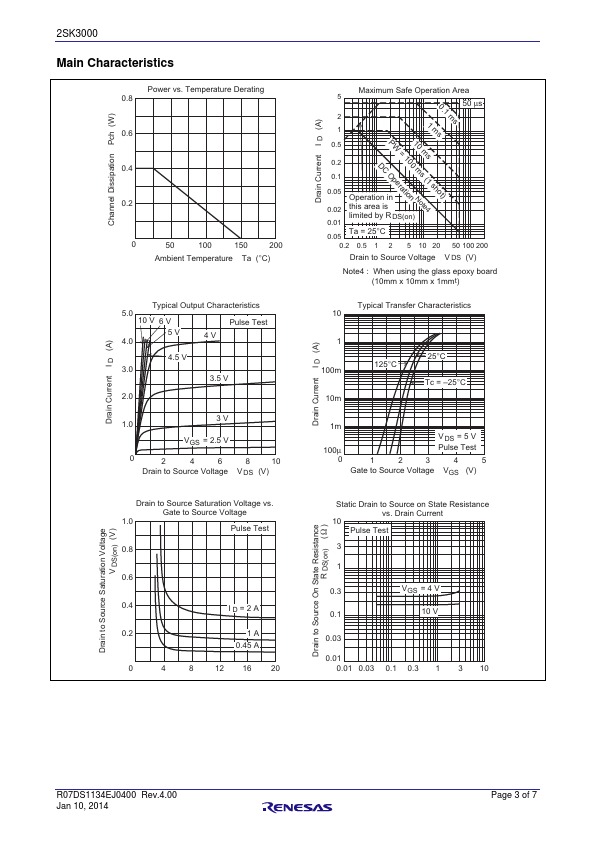

  • ”. Data Sheet R07DS1134EJ0400 Rev.4.00 Jan 10, 2014 1 2 1. Source 2. Gate 3. Drain Absolute Maximum Ratings Item Symbol Drain to source voltage VDSS Gate to source voltage VGSS Drain current Drain peak current ID ID(pulse)Note1 Rev.
