UMH1N - NPN 100mA 50V Complex Digital Transistors

Product Overview

ROHM

Part number	UMH1N
Manufacturer	ROHM
File Size	448.71 KB
Description	NPN 100mA 50V Complex Digital Transistors
Datasheet	UMH1N Datasheet

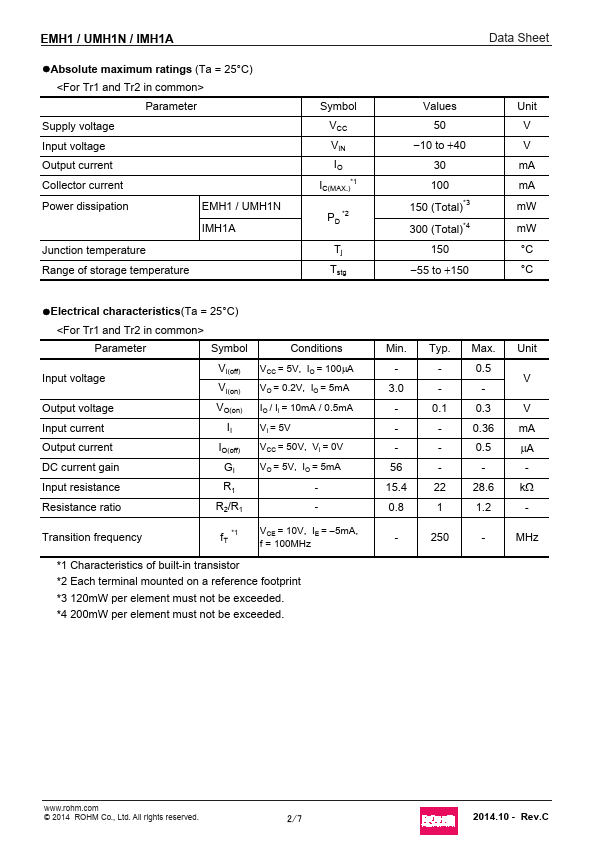

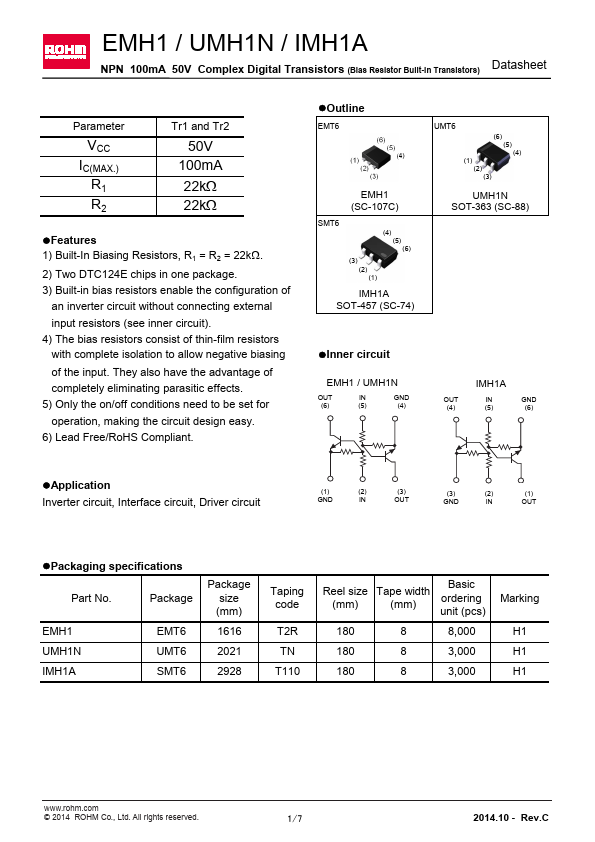

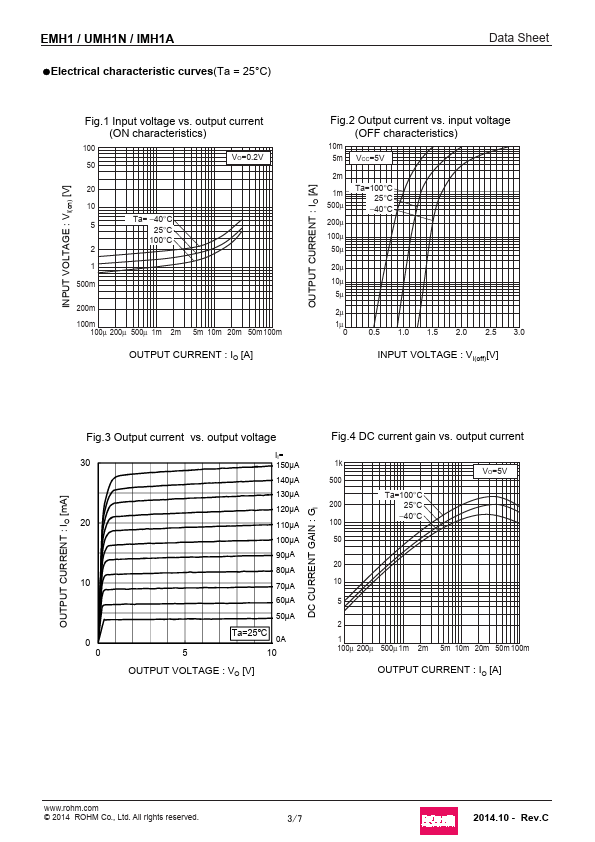

Additional preview pages of the UMH1N datasheet.

1) Built-In Biasing Resistors, R1 = R2 = 22kW. 2) Two DTC124E chips in one package. 3) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit). 4) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of completely eliminating parasitic effects. 5) Only the on/off conditions need to be set for operation, making the circuit design.
