SCT4062KWAHR - Automotive Grade N-channel SiC power MOSFET

Datasheet Summary

Features

  • 1) Qualified to AEC-Q101 2) Low on-resistance 3) Fast switching speed 4) Fast reverse recovery 5) Easy to parallel 6) Simple to drive 7) Pb-free lead plating ; RoHS compliant 8) Wide creepage distance = min.4.7mm.

📥 Download Datasheet

Datasheet preview ā€“ SCT4062KWAHR

Datasheet Details

Part number SCT4062KWAHR
Manufacturer ROHM
File Size 1.66 MB
Description Automotive Grade N-channel SiC power MOSFET
Datasheet download datasheet SCT4062KWAHR Datasheet
Additional preview pages of the SCT4062KWAHR datasheet.

📁 Similar Datasheet

Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text

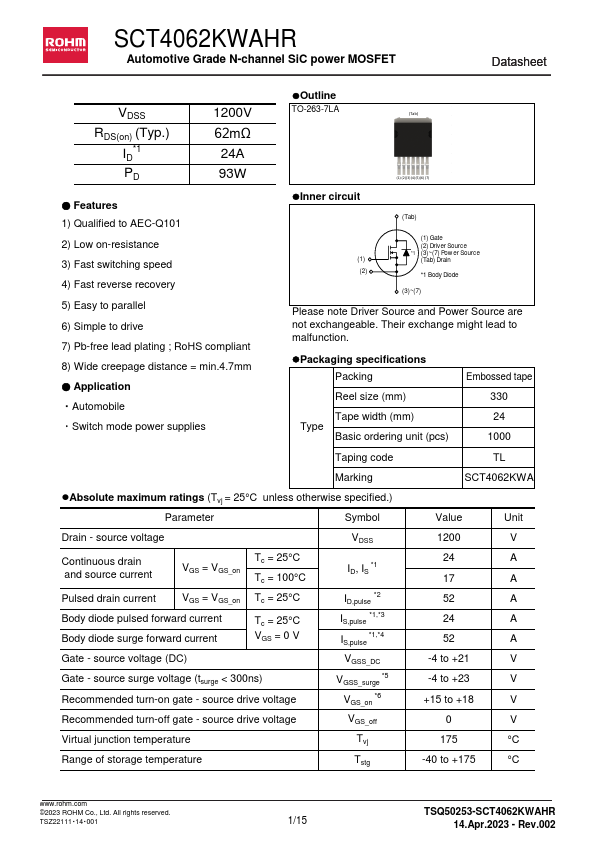

SCT4062KWAHR Automotive Grade N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID*1 PD 1200V 62mĪ© 24A 93W lOutline TO-263-7LA (Tab) (1) (2)(3) (4) (5)(6) (7) ā— Features 1) Qualified to AEC-Q101 2) Low on-resistance 3) Fast switching speed 4) Fast reverse recovery 5) Easy to parallel 6) Simple to drive 7) Pb-free lead plating ; RoHS compliant 8) Wide creepage distance = min.4.7mm ā— Application Automobile Switch mode power supplies lInner circuit (Tab) (1) Gate (2) Driver Source *1 (3)~(7) Pow er Source (1) (Tab) Drain (2) *1 Body Diode (3)~(7) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
