SCT4062KW7HR - Automotive Grade N-channel SiC power MOSFET

Datasheet Summary

Features

  • 1) Qualified to AEC-Q101 2) Low on-resistance 3) Fast switching speed 4) Fast reverse recovery 5) Easy to parallel 6) Simple to drive 7) Pb-free lead plating ; RoHS compliant lInner circuit (Tab) (1) Gate (2) Driver Source.
  • 1 (3)~(7) Power Source (1) (Tab) Drain (2).
  • 1 Body Diode (3)~(7) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.

📥 Download Datasheet

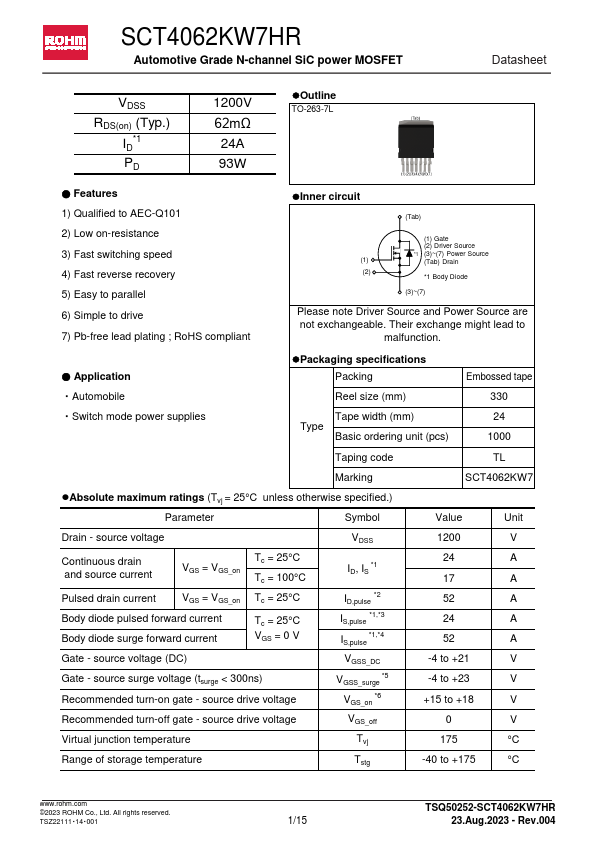

Datasheet preview – SCT4062KW7HR

Datasheet Details

Part number SCT4062KW7HR
Manufacturer ROHM
File Size 1.29 MB
Description Automotive Grade N-channel SiC power MOSFET
Datasheet download datasheet SCT4062KW7HR Datasheet

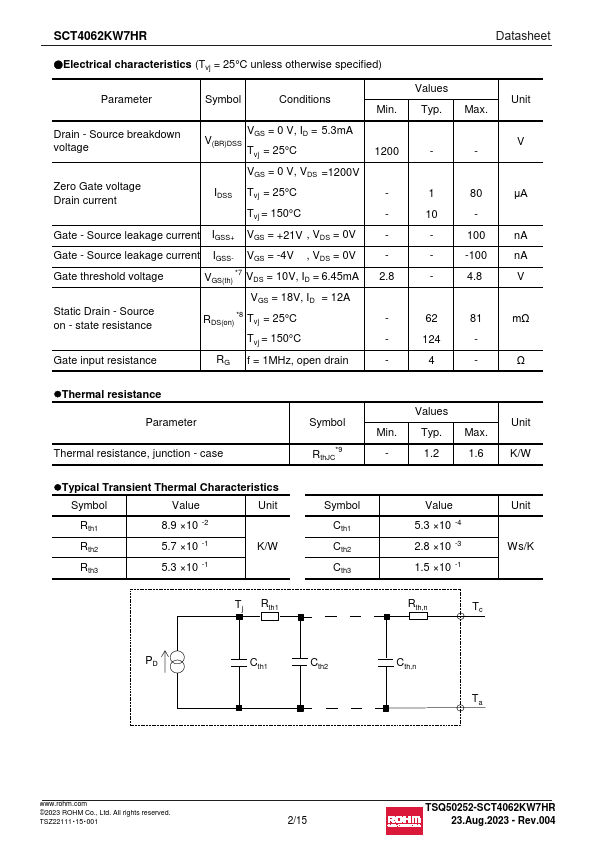

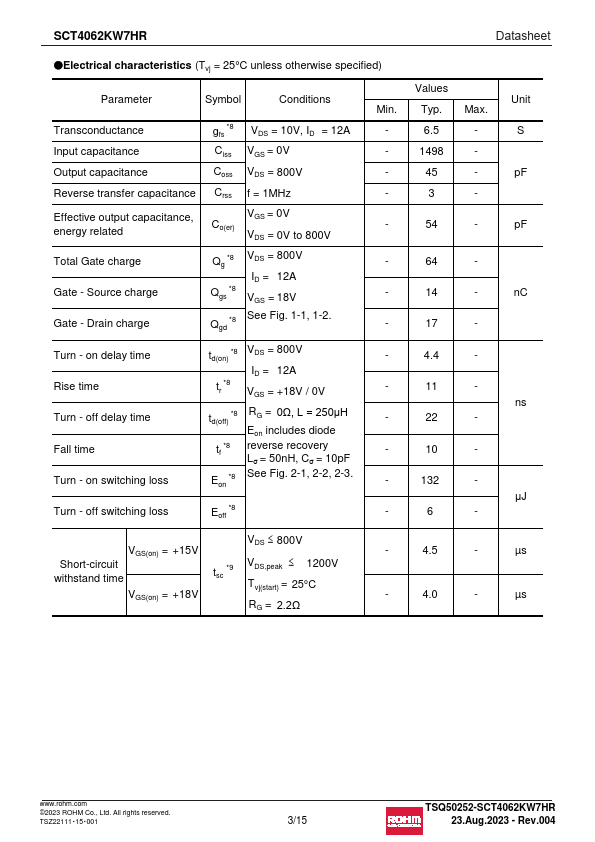

Additional preview pages of the SCT4062KW7HR datasheet.

📁 Similar Datasheet

Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text
SCT4062KW7HR Automotive Grade N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID*1 PD 1200V 62mΩ 24A 93W lOutline TO-263-7L ● Features 1) Qualified to AEC-Q101 2) Low on-resistance 3) Fast switching speed 4) Fast reverse recovery 5) Easy to parallel 6) Simple to drive 7) Pb-free lead plating ; RoHS compliant lInner circuit (Tab) (1) Gate (2) Driver Source *1 (3)~(7) Power Source (1) (Tab) Drain (2) *1 Body Diode (3)~(7) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
