SCT4062KEHR - Automotive Grade N-channel SiC power MOSFET

Datasheet Summary

Features

s 1) Qualified to AEC-Q101 2) Low on-resistance 3) Fast switching speed 4) Fast reverse recovery 1200V 62mΩ 26A 115W lOutline TO-247N lInner circuit (1) (1)(2()3) (2) (1) Gate (2) Drain.
1 (3) Source.
1 Body Diode 5) Easy to parallel 6) Simple to drive 7) Pb-free lead plating ; RoHS compliant (3) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.

Datasheet Details

Part number	SCT4062KEHR
Manufacturer	ROHM
File Size	1.24 MB
Description	Automotive Grade N-channel SiC power MOSFET
Datasheet	SCT4062KEHR Datasheet

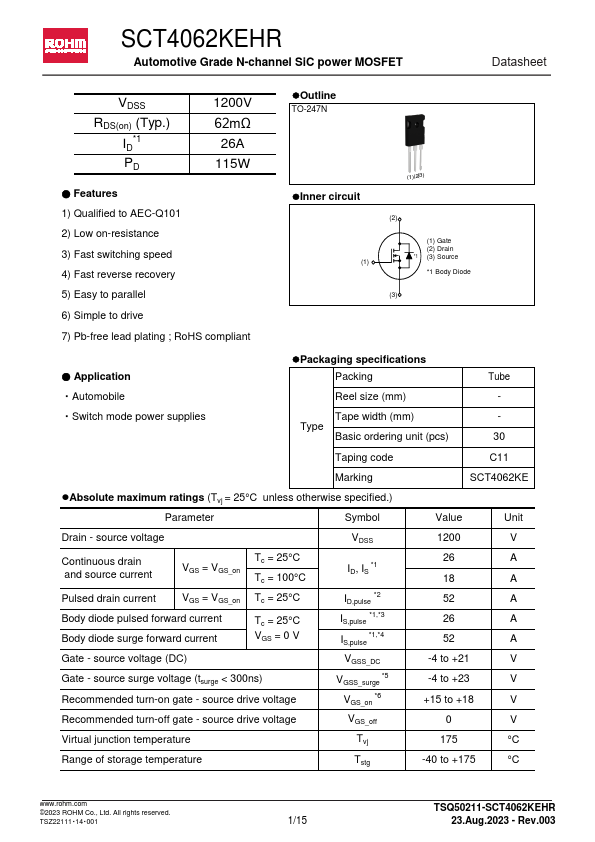

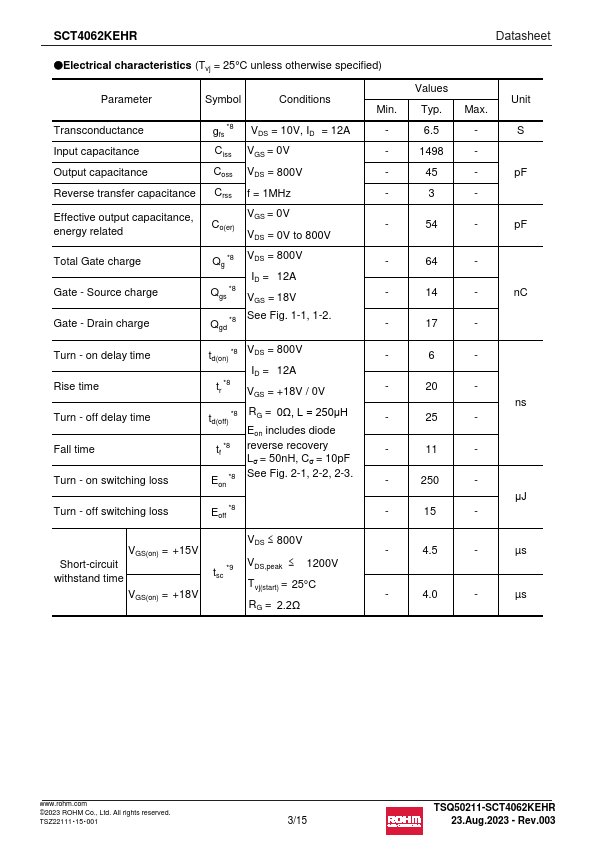

Additional preview pages of the SCT4062KEHR datasheet.

📁 Similar Datasheet

SCT-013-000 - Transformer (XiDi Technology)

SCT-013-000V - Split core current transformer (YHDC)

SCT-013-005 - Transformer (YHDC)

SCT-013-010 - Transformer (YHDC)

SCT-013-015 - Transformer (YHDC)

SCT-013-020 - Transformer (YHDC)

SCT-013-025 - Split core current transformer (YHDC)

SCT-013-030 - Transformer (XiDi Technology)

SCT-013-050 - Split core current transformer (YHDC)

SCT-013-060 - Split core current transformer (YHDC)

Full PDF Text Transcription

Click to expand full text

SCT4062KEHR Automotive Grade N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID*1 PD ● Features 1) Qualified to AEC-Q101 2) Low on-resistance 3) Fast switching speed 4) Fast reverse recovery 1200V 62mΩ 26A 115W lOutline TO-247N lInner circuit (1) (1)(2()3) (2) (1) Gate (2) Drain *1 (3) Source *1 Body Diode 5) Easy to parallel 6) Simple to drive 7) Pb-free lead plating ; RoHS compliant (3) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction. ● Application Automobile lPackaging specifications Packing Reel size (mm) Tube - Switch mode power supplies Tape width (mm) - Type Basic ordering unit (pcs) 30 Taping code C11 Marking SCT4062KE lAbsolute maximum ratings (Tvj = 25°C unless otherwise specified.
