SCT4013DRHR - Automotive Grade N-channel SiC power MOSFET

Datasheet Summary

Features

  • 1) Qualified to AEC-Q101 2) Low on-resistance 3) Fast switching speed 4) Fast reverse recovery 5) Easy to parallel 6) Simple to drive 7) Pb-free lead plating ; RoHS compliant lInner circuit (1) (1) Drain (2) Power Source.
  • 1 (3) Driver Source (4) (4) Gate (3).
  • 1 Body Diode (2) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.

📥 Download Datasheet

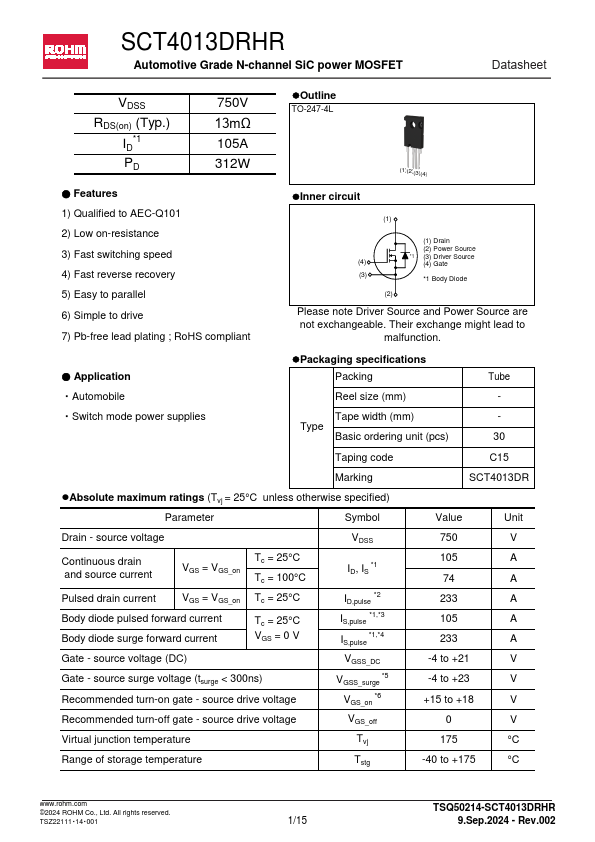

Datasheet preview – SCT4013DRHR

Datasheet Details

Part number SCT4013DRHR
Manufacturer ROHM
File Size 1.23 MB
Description Automotive Grade N-channel SiC power MOSFET
Datasheet download datasheet SCT4013DRHR Datasheet

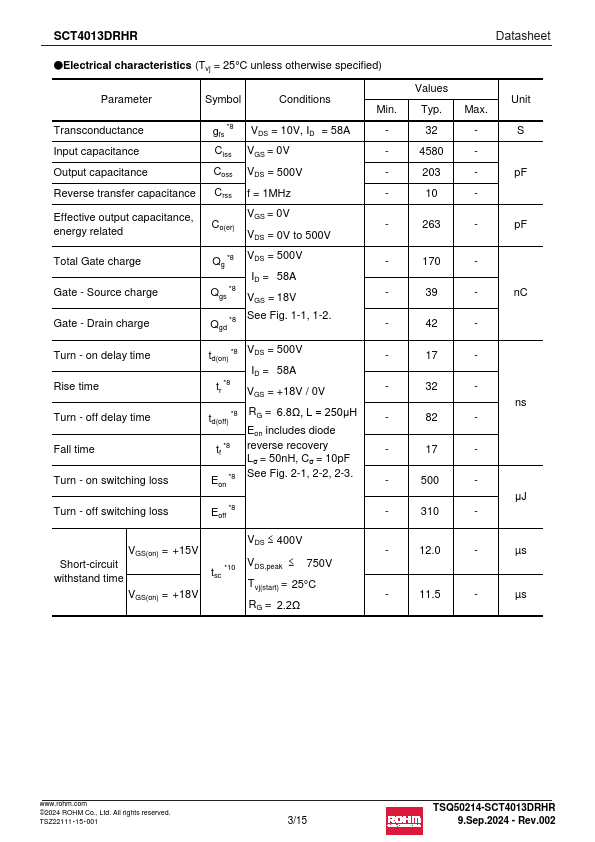

Additional preview pages of the SCT4013DRHR datasheet.

📁 Similar Datasheet

Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text
SCT4013DRHR Automotive Grade N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID*1 PD 750V 13mΩ 105A 312W lOutline TO-247-4L (1)(2)(3)(4) ● Features 1) Qualified to AEC-Q101 2) Low on-resistance 3) Fast switching speed 4) Fast reverse recovery 5) Easy to parallel 6) Simple to drive 7) Pb-free lead plating ; RoHS compliant lInner circuit (1) (1) Drain (2) Power Source *1 (3) Driver Source (4) (4) Gate (3) *1 Body Diode (2) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
