SCT3060AR - N-channel SiC power MOSFET

Key Features

  • 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant l.

📥 Download Datasheet

Datasheet Details

Part number SCT3060AR
Manufacturer ROHM
File Size 1.17 MB
Description N-channel SiC power MOSFET
Datasheet download datasheet SCT3060AR Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SCT3060 N-Channel MOSFET INCHANGE

Other Datasheets by ROHM

Part Number Description
SCT3060AL N-channel SiC power MOSFET
SCT3060ALHR Automotive Grade N-channel SiC power MOSFET
SCT3017ALHR Automotive Grade N-channel SiC power MOSFET
SCT3022AL N-channel SiC power MOSFET
SCT3022ALHR Automotive Grade N-channel SiC power MOSFET
SCT3022KL N-channel SiC power MOSFET
SCT3022KLHR Automotive Grade N-channel SiC power MOSFET
SCT3030AL N-channel SiC power MOSFET
SCT3030AR N-channel SiC power MOSFET
SCT3030KL N-channel SiC power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

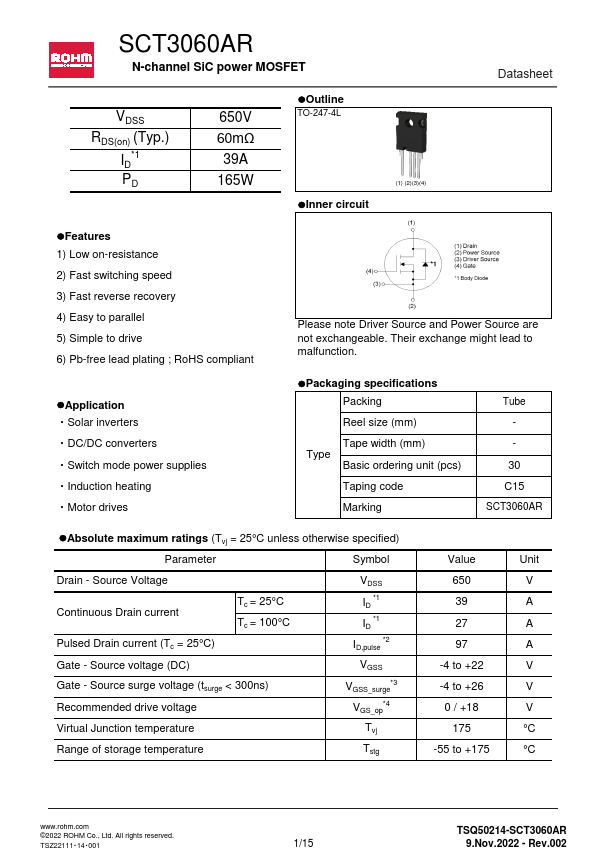

SCT3060AR N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID*1 PD 650V 60mΩ 39A 165W lOutline TO-247-4L lInner circuit (1) (2)(3)(4) lFeatures 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant lApplication Solar inverters DC/DC converters Switch mode power supplies Induction heating Motor drives Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
