S6401 - SiC Schottky Barrier Diode Bare Die

Datasheet Summary

Features

  • 1) Shorter recovery time 2) Reduced temperature dependence 3) High-speed switching possible.
  • Inner Circuit.
  • Construction Silicon carbide epitaxial planar type Schottky diode Datasheet.
  • Absolute Maximum Ratings (Tj = 25°C ) Parameter Symbol Value Unit Reverse voltage (repetitive peak) VRM 1700 V Reverse voltage (DC) Continuous forward current VR 1700 V IF 10.
  • 1 A Surge non- PW=10ms sinusoidal, Tj=25°C 41 A repetitive forward PW=10ms sinusoidal, Tj=150°C IF.

📥 Download Datasheet

Datasheet preview – S6401

Datasheet Details

Part number S6401
Manufacturer ROHM
File Size 942.99 KB
Description SiC Schottky Barrier Diode Bare Die
Datasheet download datasheet S6401 Datasheet

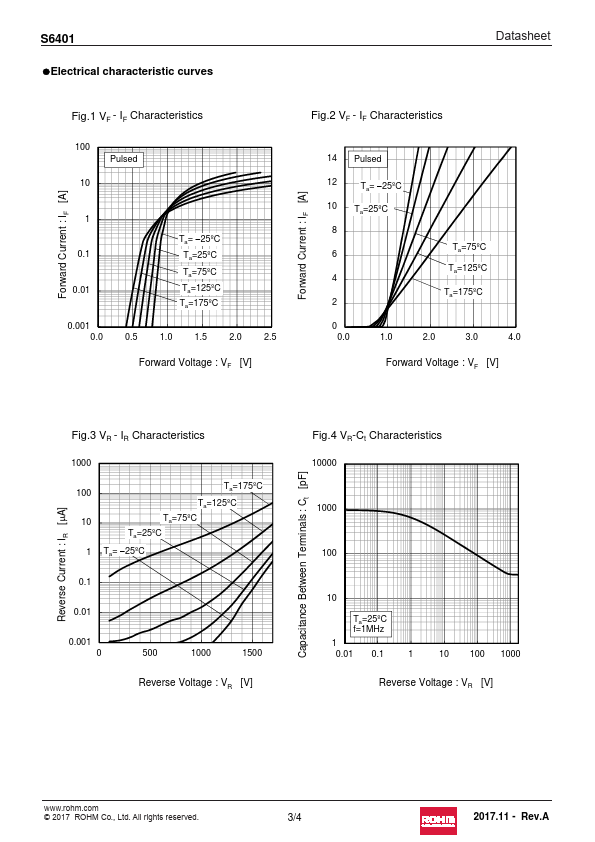

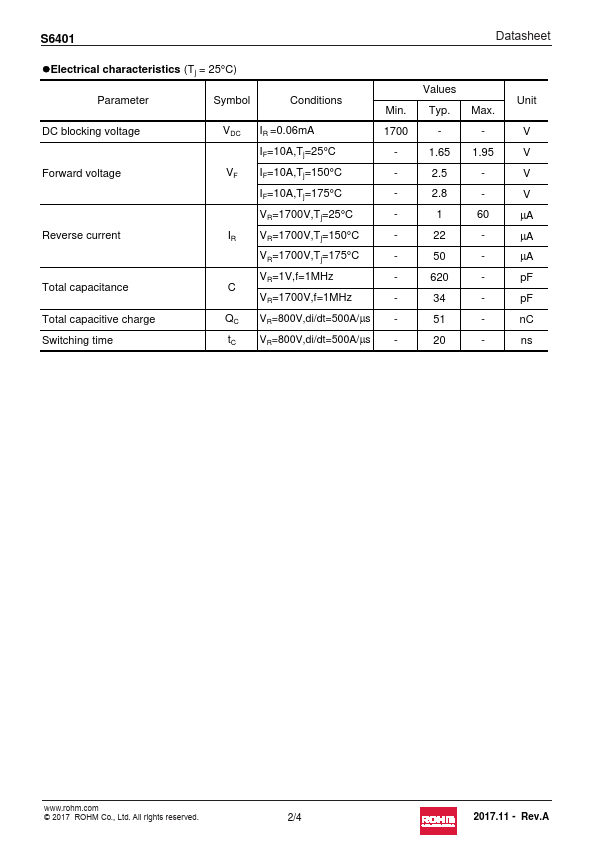

Additional preview pages of the S6401 datasheet.

📁 Similar Datasheet

  • S6400N - 35A Silicon Controlled Rectifier (Solid State)
  • S6410N - 35A Silicon Controlled Rectifier (Solid State)
  • S6419 - Low Power Audio Amplifier (KODENSHI KOREA)
  • S6419P - Low Power Audio Amplifier (KODENSHI KOREA)
  • S642-X - Relay (Solid State Optronic)
  • S6420A - 35A Silicon Controlled Rectifier (Solid State)
  • S6420B - 35A Silicon Controlled Rectifier (Solid State)
  • S6420D - 35A Silicon Controlled Rectifier (Solid State)
  • S6420M - 35A Silicon Controlled Rectifier (Solid State)
  • S6420N - 35A Silicon Controlled Rectifier (Solid State)
Other Datasheets by ROHM

    Full PDF Text Transcription

    Click to expand full text

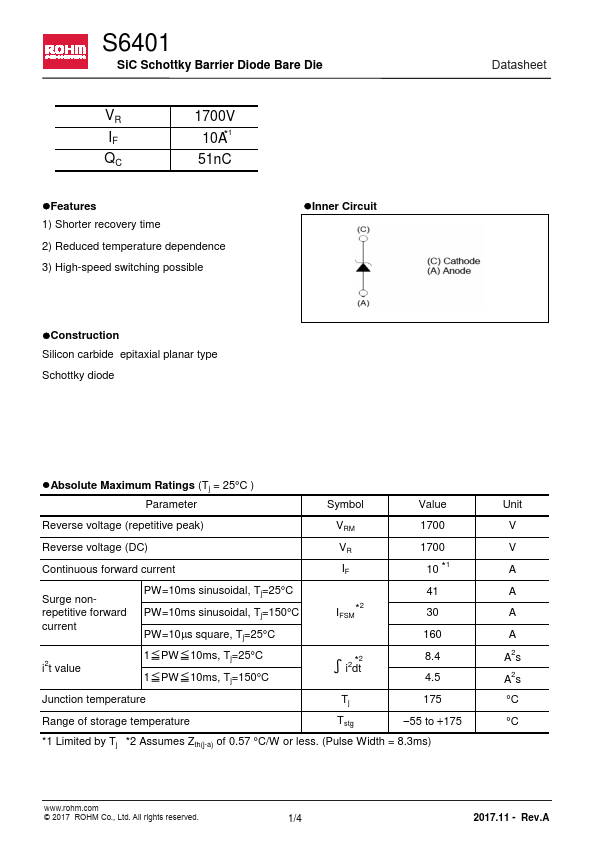

    S6401 SiC Schottky Barrier Diode Bare Die VR 1700V IF 10A*1 QC 51nC Features 1) Shorter recovery time 2) Reduced temperature dependence 3) High-speed switching possible Inner Circuit Construction Silicon carbide epitaxial planar type Schottky diode Datasheet Absolute Maximum Ratings (Tj = 25°C ) Parameter Symbol Value Unit Reverse voltage (repetitive peak) VRM 1700 V Reverse voltage (DC) Continuous forward current VR 1700 V IF 10 *1 A Surge non- PW=10ms sinusoidal, Tj=25°C 41 A repetitive forward PW=10ms sinusoidal, Tj=150°C IFSM *2 30 A current PW=10s square, Tj=25°C 160 A i2t value 1≦PW≦10ms, Tj=25°C 1≦PW≦10ms, Tj=150°C ∫i2d*t2 8.4 4.
