ESDCAN24HPYFH - Transient Voltage Suppressor

Datasheet Summary

Features

protection level ±30 kV (IEC61000-4-2; Contact) Low capacitance; Ct = 3.5 pF AEC-Q006 qualified.
Inner Circuit Data sheet 　　　　　　　　　　　　.

ROHM

📥 Download Datasheet

Datasheet Details

Part number	ESDCAN24HPYFH
Manufacturer	ROHM
File Size	1.17 MB
Description	Transient Voltage Suppressor
Datasheet	ESDCAN24HPYFH Datasheet

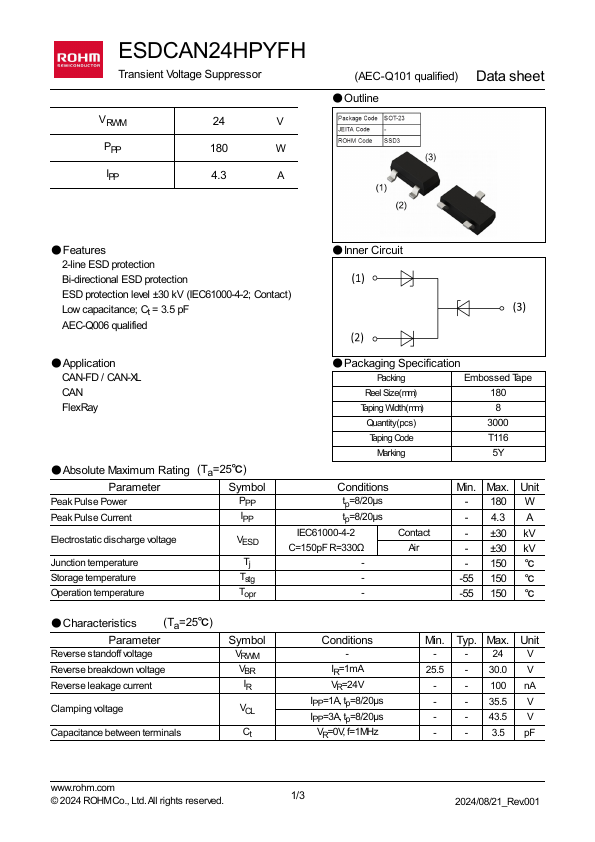

Additional preview pages of the ESDCAN24HPYFH datasheet.

📁 Similar Datasheet

ESDCAN24-2BLY - Automotive dual-line TVS (STMicroelectronics)
ESDCAN01-2BLY - Automotive dual-line TVS (STMicroelectronics)
ESDCAN02-2BWY - Automotive dual-line TVS (STMicroelectronics)
ESDCAN03-2BM3Y - TVS (STMicroelectronics)
ESDCAN03-2BWY - Automotive dual-line TVS (STMicroelectronics)
ESDCAN04-2BLY - Automotive dual-line TVS (STMicroelectronics)
ESDCAN04-2BWY - Automotive dual-line TVS (STMicroelectronics)
ESDCAN05-2BWY - Automotive dual-line TVS (STMicroelectronics)
ESDCAN06-2BLY - Automotive dual-line TVS (STMicroelectronics)
ESDCAN06-2BWY - Automotive dual-line TVS (STMicroelectronics)

Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text

ESDCAN24HPYFH Transient Voltage Suppressor (AEC-Q101 qualified) 　　　　　　　　　　　　　　　　　　　　　　　　　 ●Outline VRWM 24 V PPP 180 W IPP 4.3 A 　　　 ●Features 2-line ESD protection Bi-directional ESD protection ESD protection level ±30 kV (IEC61000-4-2; Contact) Low capacitance; Ct = 3.
