BP3622 - 13.56MHz Wireless Charger Module

Datasheet Summary

Description

BP3622 is a compact wireless charger module with integrated antenna board.

Features

  • - Wireless power receiver - Optimized for wireless charging with BP3621 - 212 kbps wireless communication Package W (Typ. ) × D (Typ. ) × H (Typ. ) 24.0 mm × 17.0 mm × 1.5 mm Major Performance Parameter Power supply Antenna size Board Host interface Weight.

📥 Download Datasheet

Datasheet preview – BP3622

Datasheet Details

Part number BP3622
Manufacturer ROHM
File Size 1.19 MB
Description 13.56MHz Wireless Charger Module
Datasheet download datasheet BP3622 Datasheet
Additional preview pages of the BP3622 datasheet.

📁 Similar Datasheet

  • BP3015Q12-B10 - Blue Emitter (CT Micro)
  • BP3102 - High Precision PSR Constant Current LED Driver (BPS)
  • BP3105 - High Precision PSR CC LED driver controller (BPS)
  • BP3106 - High Precision PSR Constant Current LED Driver (BPS)
  • BP3108 - PSR LED Controller (BPS)
  • BP3122 - High Precision PSR Constant Current LED Driver (BPS)
  • BP3122B - High Precision PSR Constant Current LED Driver (BPS)
  • BP3123 - High Precision PSR Constant Current LED Driver (BPS)
  • BP3125 - High Precision PSR Constant Current LED Driver (BPS)
  • BP3125 - 125Watt Photovoltaic-Module (bpsolar)
Other Datasheets by ROHM
  • BP3580 - Wireless LAN Module
  • BP3595 - Built-in antenna IEEE802.11b/g/n (1x1) Wireless LAN Module
  • BP3596 - Low Power Sub-1GHz Radio Module

Full PDF Text Transcription

Click to expand full text

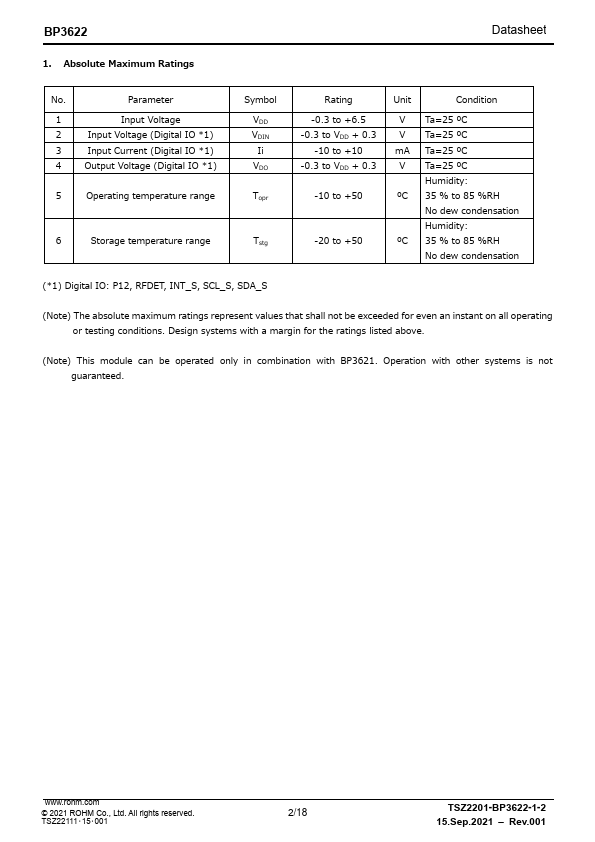

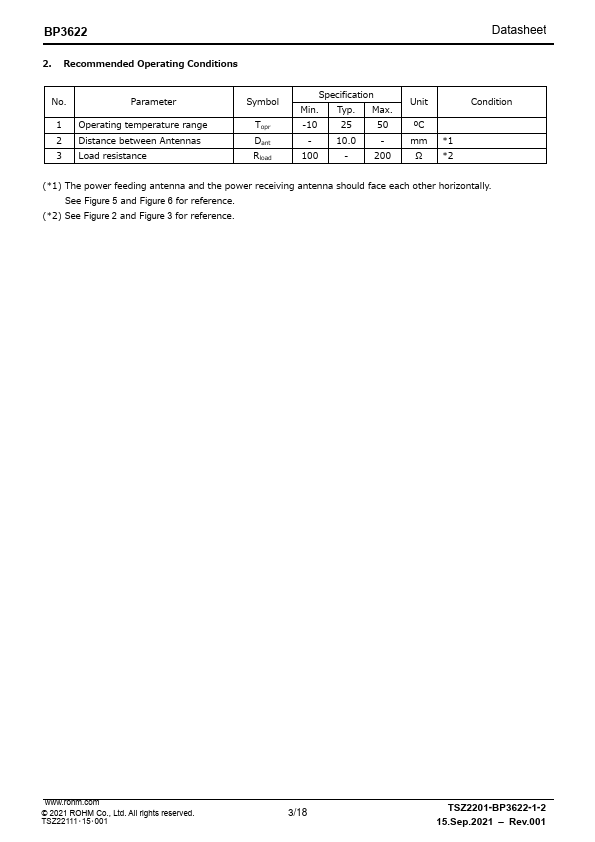

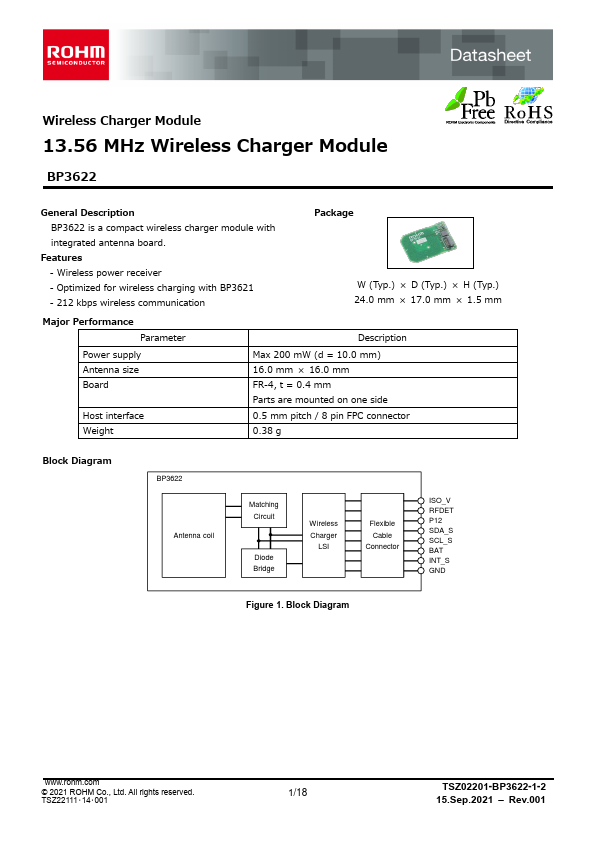

Wireless Charger Module 13.56 MHz Wireless Charger Module BP3622 General Description BP3622 is a compact wireless charger module with integrated antenna board. Features - Wireless power receiver - Optimized for wireless charging with BP3621 - 212 kbps wireless communication Package W (Typ.) × D (Typ.) × H (Typ.) 24.0 mm × 17.0 mm × 1.5 mm Major Performance Parameter Power supply Antenna size Board Host interface Weight Description Max 200 mW (d = 10.0 mm) 16.0 mm × 16.0 mm FR-4, t = 0.4 mm Parts are mounted on one side 0.5 mm pitch / 8 pin FPC connector 0.38 g Block Diagram BP3622 Antenna coil Matching Circuit Diode Bridge Wireless Charger LSI Flexible Cable Connector ISO_V RFDET P12 SDA_S SCL_S BAT INT_S GND Figure 1. Block Diagram © 2019 ROHM Co.,Ltd. www.rohm.
