BD93F52MWV - USB Type-C Power Delivery Controller

Description

BD93F52MWV is a full function USB Type-C Power Delivery (PD) Controller that supports USB PD using base-band communication.

It is compatible with USB Type-C Specification and Power Delivery Specification.

Features

  • 32 Bit ARM® Cortex®-M0 Processor Embedded.
  • USB Type-C Specification Ver.2.2 Compatible.
  • USB PD Specification Ver.3.1 Compatible.
  • Integrated VBUS N-ch MOSFET Switch Gate Driver.
  • Integrated VBUS Discharge Switch.
  • Protection Voltage of CC Pins is 28 V.
  • Supports Dead Battery Operation.
  • I2C Interface for Host Communication.

📥 Download Datasheet

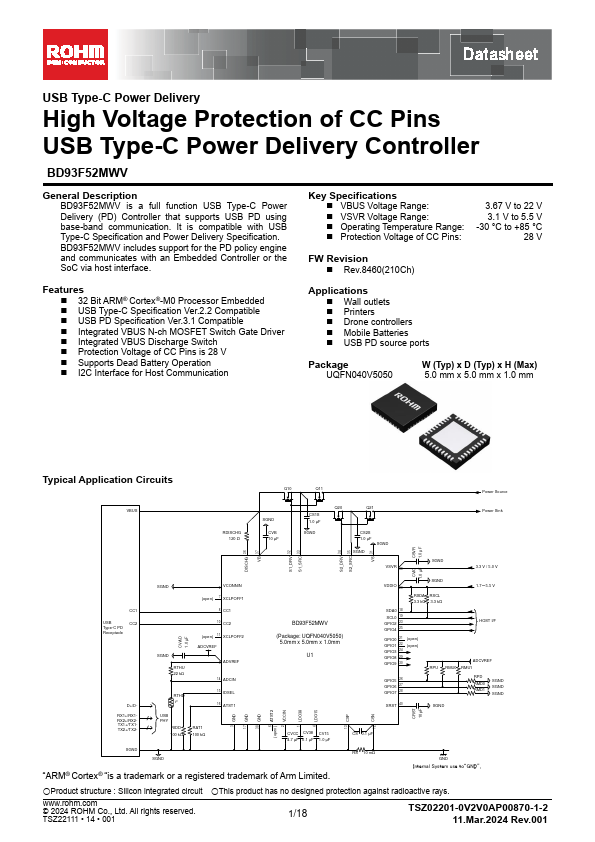

Datasheet preview – BD93F52MWV

Datasheet Details

Part number BD93F52MWV
Manufacturer ROHM
File Size 903.87 KB
Description USB Type-C Power Delivery Controller
Datasheet download datasheet BD93F52MWV Datasheet

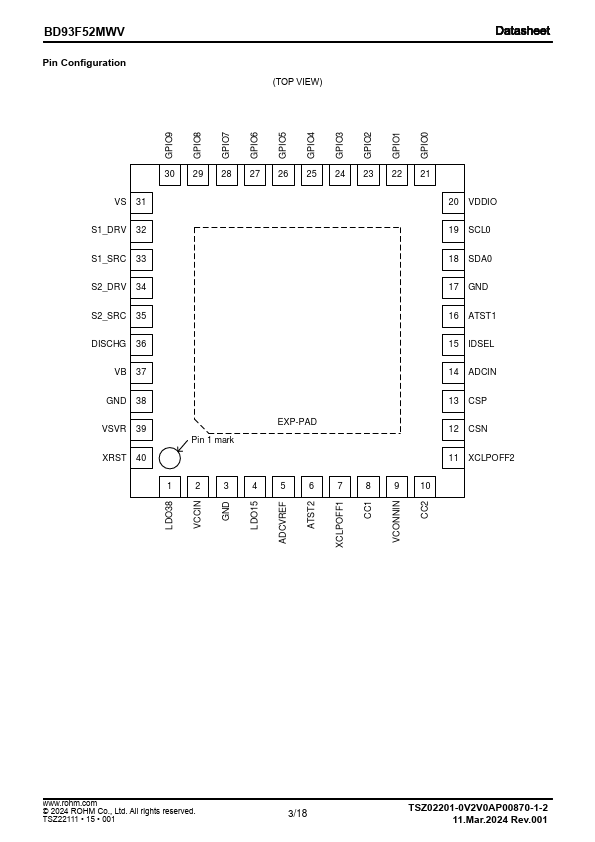

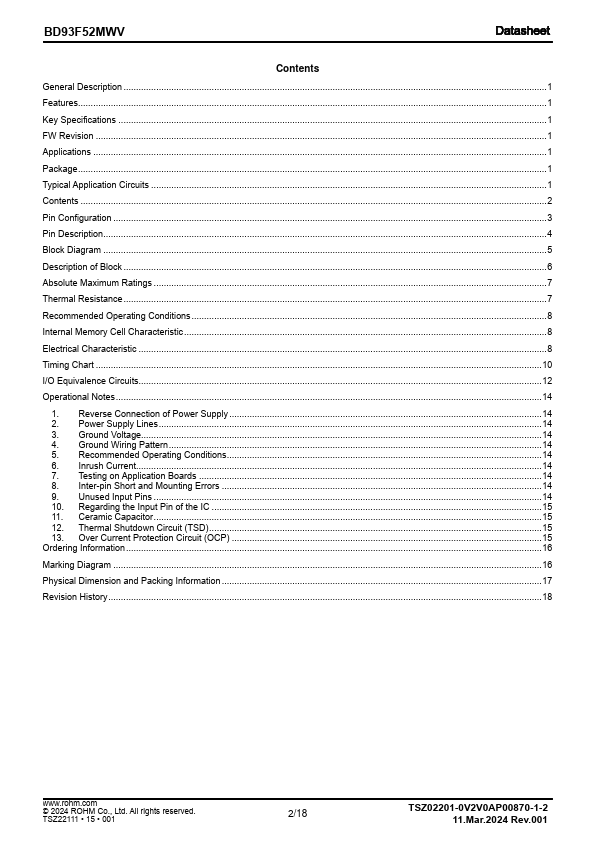

Additional preview pages of the BD93F52MWV datasheet.

📁 Similar Datasheet

  • BD933 - Silicon Epitaxial Power Transistors (NXP)
  • BD933 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • BD933F - NPN Transistor (INCHANGE)
  • BD933F - Silicon Epitaxial Power Transistors (NXP)
  • BD934 - Silicon PNP Power Transistor (INCHANGE)
  • BD934F - Silicon PNP Power Transistor (INCHANGE)
  • BD935 - Silicon Epitaxial Power Transistors (NXP)
  • BD935 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • BD935F - NPN Transistor (INCHANGE)
  • BD935F - Silicon Epitaxial Power Transistors (NXP)
Other Datasheets by ROHM
  • BD93F59MWV - USB Type-C Power Delivery Controller
  • BD93F12MWV - USB Type-C Power Delivery Controller
  • BD9300 - 1-channel DC/DC converter controller
  • BD9300F - Step-down Switching Regulators
  • BD9300FV - Step-down Switching Regulators
  • BD9302FP - Step-down Switching Regulators
  • BD9305AFVM - 4.2V to 18V Input 1ch Buck Controller
  • BD9306AFVM - Boost Controller

Full PDF Text Transcription

Click to expand full text
Datasheet USB Type-C Power Delivery High Voltage Protection of CC Pins USB Type-C Power Delivery Controller BD93F52MWV General Description BD93F52MWV is a full function USB Type-C Power Delivery (PD) Controller that supports USB PD using base-band communication. It is compatible with USB Type-C Specification and Power Delivery Specification. BD93F52MWV includes support for the PD policy engine and communicates with an Embedded Controller or the SoC via host interface. Key Specifications ◼ VBUS Voltage Range: ◼ VSVR Voltage Range: ◼ Operating Temperature Range: ◼ Protection Voltage of CC Pins: 3.67 V to 22 V 3.1 V to 5.5 V -30 °C to +85 °C 28 V FW Revision ◼ Rev.8460(210Ch) Features ◼ 32 Bit ARM® Cortex®-M0 Processor Embedded ◼ USB Type-C Specification Ver.2.
