PY32F003 - 32-bit microcontroller

Features

  • Core.
  • 32-bit ARM® Cortex® - M0+ CPU.
  • Up to 32 MHz operating frequency.
  • Memories.
  • Maximum 32 Kbytes of flash memory.
  • Up to 4 Kbytes SRAM.
  • Clock system.
  • Internal 4 /8/16/ 22.12 / 24 MHz RC Oscillator (HSI).
  • Internal 32.768 KHz RC oscillator (LSI).
  • 4 to 32 MHz crystal oscillator (HSE).
  • Power management and reset.
  • Operating voltage: 1.7V to 5.5V.
  • Low power modes: Sleep and Stop.
  • Power-on/Po.

📥 Download Datasheet

Datasheet Details

Part number PY32F003
Manufacturer Puya
File Size 0.98 MB
Description 32-bit microcontroller
Datasheet download datasheet PY32F003 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PY32F002B 32-bit ARM Microcontroller ChipSourceTek

Other Datasheets by Puya

Part Number Description
PY32F030 32-bit microcontroller
PY32F040 ARM microcontroller
PY32C642 32-bit microcontroller

Full PDF Text Transcription

Click to expand full text

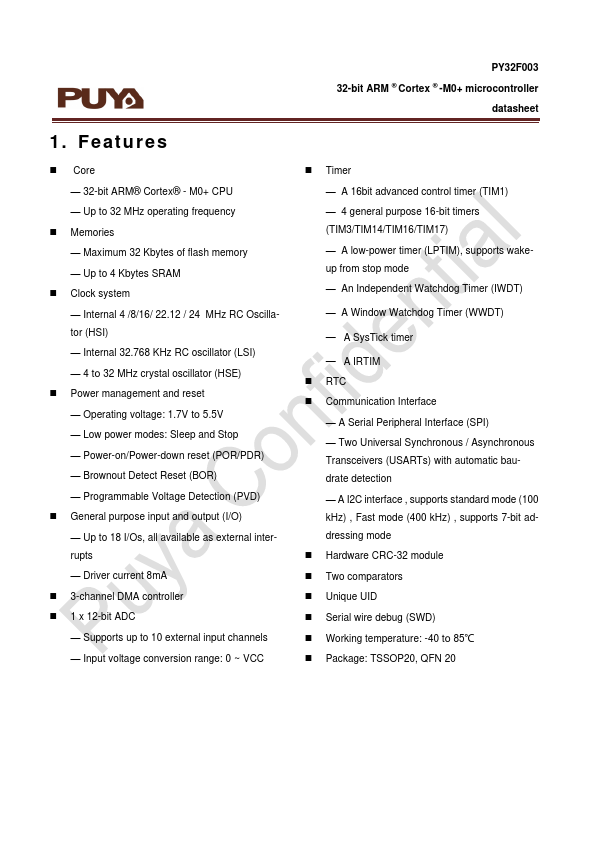

1. Features ◼ Core — 32-bit ARM® Cortex® - M0+ CPU — Up to 32 MHz operating frequency ◼ Memories — Maximum 32 Kbytes of flash memory — Up to 4 Kbytes SRAM ◼ Clock system — Internal 4 /8/16/ 22.12 / 24 MHz RC Oscillator (HSI) — Internal 32.768 KHz RC oscillator (LSI) — 4 to 32 MHz crystal oscillator (HSE) ◼ Power management and reset — Operating voltage: 1.7V to 5.
