SRV05-4 - ULTRA LOW CAPACITANCE STEERING DIODE/TVS ARRAY

Description

The SRV05-4 is a dual USB port protection array that

Features

  • ultra low capacitance. This device can be used in.

📥 Download Datasheet

Datasheet preview – SRV05-4

Datasheet Details

Part number SRV05-4
Manufacturer Protek Devices
File Size 348.51 KB
Description ULTRA LOW CAPACITANCE STEERING DIODE/TVS ARRAY
Datasheet download datasheet SRV05-4 Datasheet
Additional preview pages of the SRV05-4 datasheet.

📁 Similar Datasheet

  • SRV05-4 - Low Capacitance TVs Array (KD)
  • SRV05-4 - ESD Protection Diode Array (ON Semiconductor)
  • SRV05-4 - LOW CAPACITANCE TVS DIODE ARRAY (Leiditech)
  • SRV05-4 - Low Capacitance TVs Diode Array (Semtech)
  • SRV05-4 - Low Capacitance Steering Diode (HTC)
  • SRV05-4-054 - Low Capacitance Array (WPM)
  • SRV05-4A - TVS Arrays (SMC Diode)
  • SRV05-4HTG - TVS Diode Arrays (Littelfuse)
  • SRV05-4HTG-D - 5V 10A TVS Diode Array (Littelfuse)
  • SRV05 - TVS Diode Arrays (Littelfuse)
Other Datasheets by Protek Devices

    Full PDF Text Transcription

    Click to expand full text

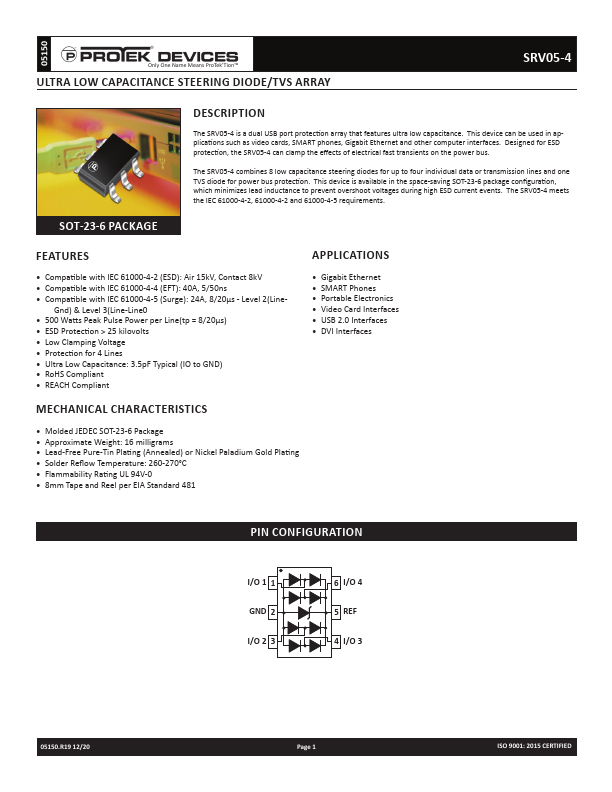

    05150 Only One Name Means ProTek’Tion™ ULTRA LOW CAPACITANCE STEERING DIODE/TVS ARRAY SRV05-4 SOT-23-6 PACKAGE DESCRIPTION The SRV05-4 is a dual USB port protection array that features ultra low capacitance. This device can be used in applications such as video cards, SMART phones, Gigabit Ethernet and other computer interfaces. Designed for ESD protection, the SRV05-4 can clamp the effects of electrical fast transients on the power bus. The SRV05-4 combines 8 low capacitance steering diodes for up to four individual data or transmission lines and one TVS diode for power bus protection. This device is available in the space-saving SOT-23-6 package configuration, which minimizes lead inductance to prevent overshoot voltages during high ESD current events.
