PSOT36 - STANDARD CAPACITANCE TVS ARRAY

Download the PSOT36 datasheet PDF. This datasheet also covers the PSOT03 variant, as both devices belong to the same standard capacitance tvs array family and are provided as variant models within a single manufacturer datasheet.

Description

The PSOT series are transient voltage suppressor (TVS) arrays, designed for power or data line applications that provide protection against ESD, tertiary lightning and switching transients.

This series offers low clamping voltage for the protection of sensitive interfaces.

Features

  • Compatible with IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV.
  • Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns.
  • Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line- Ground) & Level 3 (Line-Line).
  • 500 Watts Peak Pulse Power per Line(tp = 8/20µs).
  • Low Clamping Voltage.
  • Bidirectional and Unidirectional Configurations.
  • Available in Multiple Voltages Ranging from 3V to 36V.
  • RoHS Compliant.
  • REACh Com.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PSOT03_ProtekDevices.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PSOT36
Manufacturer Protek Devices
File Size 452.71 KB
Description STANDARD CAPACITANCE TVS ARRAY
Datasheet download datasheet PSOT36 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PSO-0505 ECONOLING - DC/DC - CONVERTER Recom International Power
PSoC4000 Programmable System-on-Chip Cypress Semiconductor
PSoC4000S Programmable System-on-Chip Cypress Semiconductor
PSoC4100 Programmable System-on-Chip Cypress
PSoC4100BLE Programmable System-on-Chip Cypress Semiconductor

Other Datasheets by Protek Devices

Part Number Description
PSOT36C STANDARD CAPACITANCE TVS ARRAY
PSOT36KCA STANDARD CAPACITANCE TVS ARRAY
PSOT36LC 500 WATT ULTRA LOW CAPACITANCE TVS ARRAY
PSOT03 STANDARD CAPACITANCE TVS ARRAY
PSOT03C STANDARD CAPACITANCE TVS ARRAY

Full PDF Text Transcription

Click to expand full text

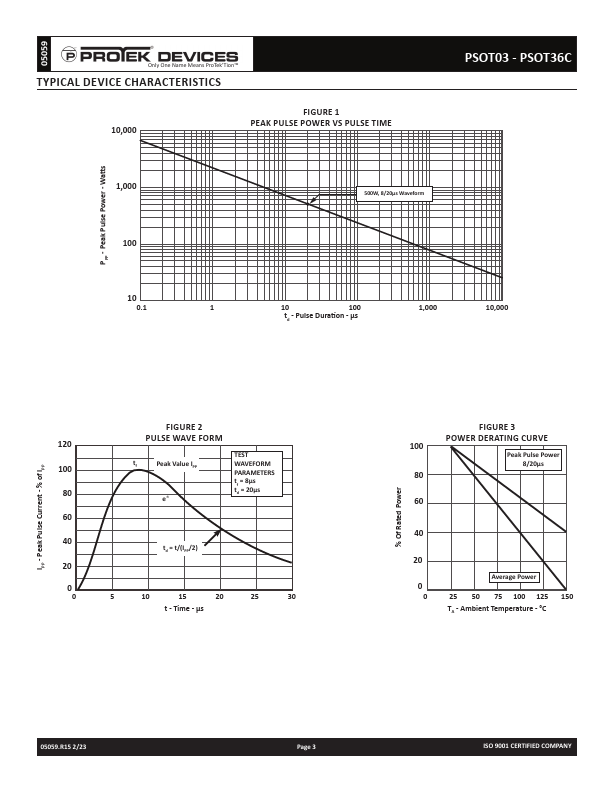

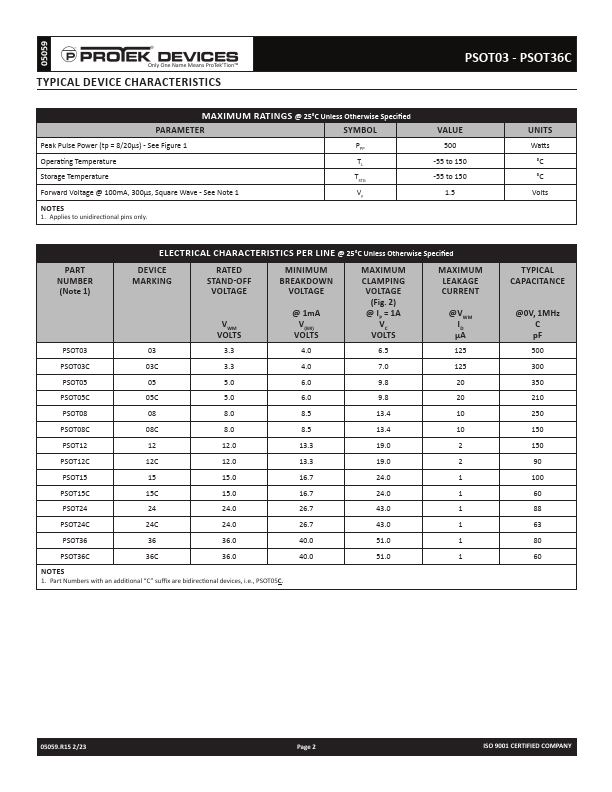

05059 Only One Name Means ProTek’Tion™ 500 WATT TVS ARRAY PSOT03 - PSOT36C DESCRIPTION The PSOT series are transient voltage suppressor (TVS) arrays, designed for power or data line applications that provide protection against ESD, tertiary lightning and switching transients. This series offers low clamping voltage for the protection of sensitive interfaces. The PSOT series has a peak pulse power of 500 Watts for an 8/20µs waveshape and is available in either a bidirectional or unidirectional configuration. This series meets the IEC 61000-4-2, 61000-4-4 and IEC 61000-4-5 requirements.
