BAP1321-03 - Silicon PIN diode

Datasheet Summary

Description

cathode anode

For applications up to 3 GHz.

RF attenuators and switches.

DESCRIPTION Planar PIN diode in a SOD323 (SC-76) ultra small SMD plastic package.

Marking code: V8.

Features

  • High voltage, current controlled.
  • RF resistor for RF attenuators and switches.
  • Low diode capacitance.
  • Low diode forward resistance.
  • Very low series inductance www. DataSheet4U. com BAP1321-03.

📥 Download Datasheet

Datasheet preview – BAP1321-03

Datasheet Details

Part number BAP1321-03
Manufacturer Philips
File Size 92.72 KB
Description Silicon PIN diode
Datasheet download datasheet BAP1321-03 Datasheet

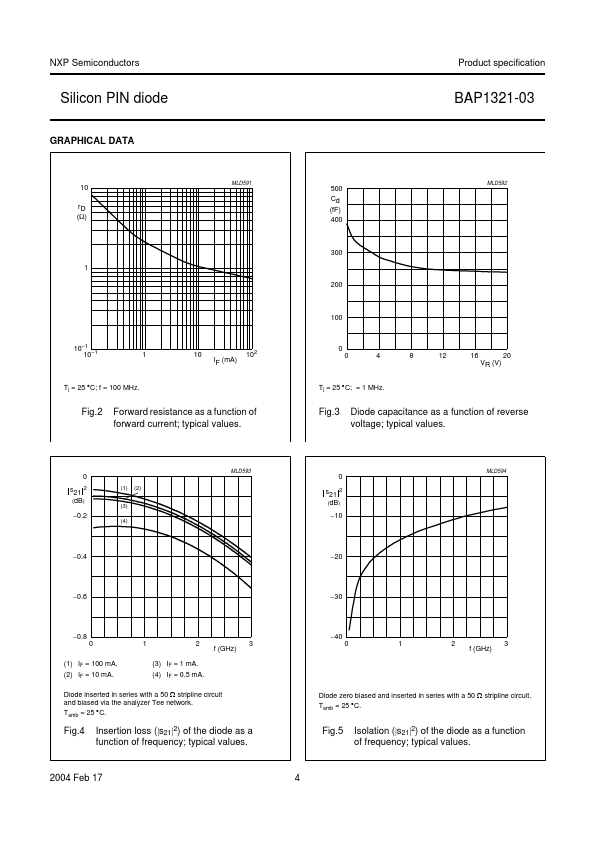

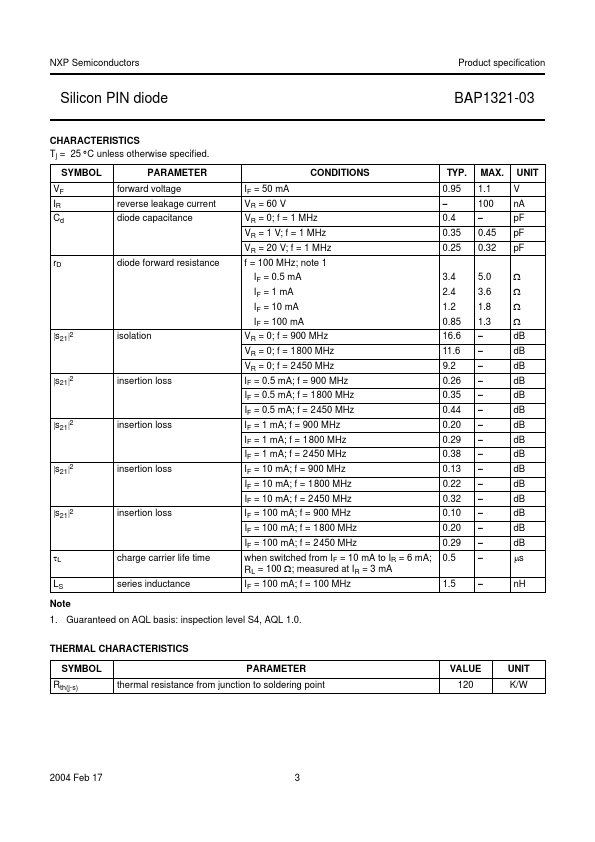

Additional preview pages of the BAP1321-03 datasheet.

📁 Similar Datasheet

  • BAP1321-04 - Silicon PIN diode (NXP)
  • BAP1321LX - Silicon PIN diode (NXP Semiconductors)
  • BAP142L - Silicon PIN diode (NXP Semiconductors)
  • BAP142LX - Silicon PIN diode (NXP Semiconductors)
  • BAP1491 - IGBT Gate Drive Board (APPLIED POWER SYSTEMS)
  • BAP27-01 - Silicon PIN diode (NXP)
  • BAP50-02 - General purpose PIN diode (ETL)
  • BAP50-02 - General purpose PIN diode (NXP)
  • BAP50-03 - General purpose PIN diode (NXP)
  • BAP50-03 - General Purpose Pin Diode (MCC)
Other Datasheets by Philips

Full PDF Text Transcription

Click to expand full text

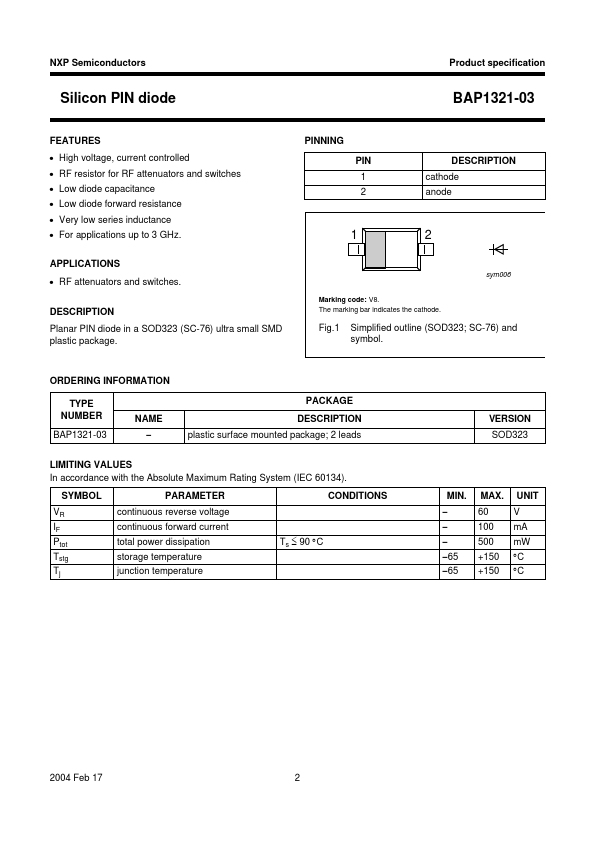

DISCRETE SEMICONDUCTORS DATA SHEET www.DataSheet4U.com BAP1321-03 Silicon PIN diode Product specification Supersedes data of 2001 May 11 2004 Feb 17 Philips Semiconductors Product specification Silicon PIN diode FEATURES • High voltage, current controlled • RF resistor for RF attenuators and switches • Low diode capacitance • Low diode forward resistance • Very low series inductance www.DataSheet4U.com BAP1321-03 PINNING PIN 1 2 DESCRIPTION cathode anode • For applications up to 3 GHz. APPLICATIONS • RF attenuators and switches. DESCRIPTION Planar PIN diode in a SOD323 (SC-76) ultra small SMD plastic package. 1 2 Top view Marking code: V8. The marking bar indicates the cathode. sym006 Fig.1 Simplified outline (SOD323; SC-76) and symbol.
