PSD1-A-1205E - 1W single output DC/DC converters

Product Overview

PEAK electronics

Part number	PSD1-A-1205E
Manufacturer	PEAK electronics
File Size	358.07 KB
Description	1W single output DC/DC converters
Datasheet	PSD1-A-1205E Datasheet
Note	This datasheet PDF includes multiple part numbers: PSD1-A-1205E, PSD1-A-3R33R3E. Please refer to the document for exact specifications by model.

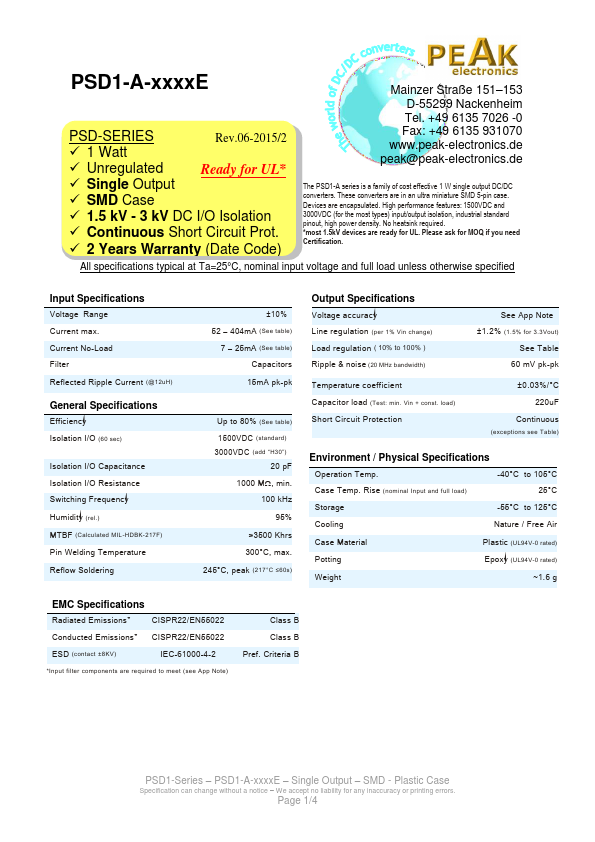

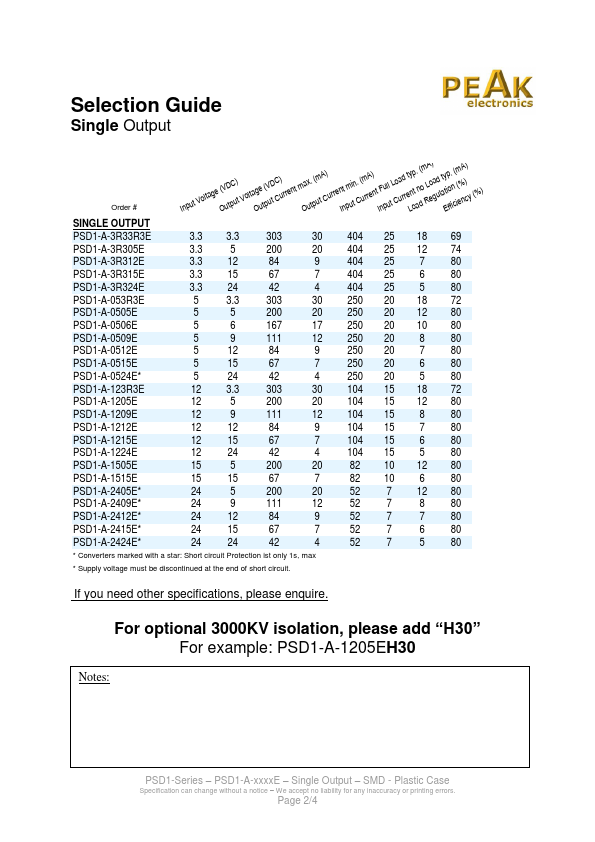

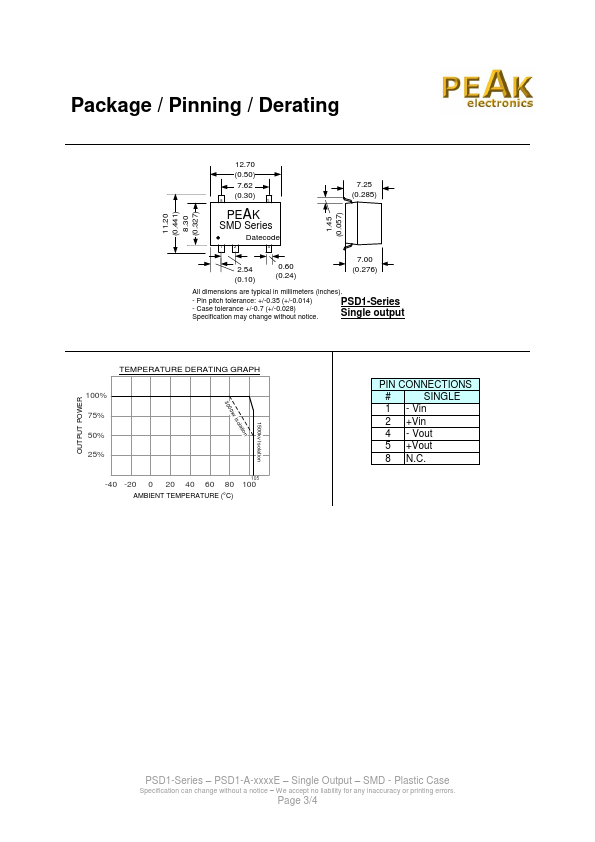

Additional preview pages of the PSD1-A-1205E datasheet.

1500VDC and 3000VDC (for the most types) input/output isolation, industrial standard pinout, high power density. No heatsink required.
most 1.5kV devices are ready for UL. Please ask for MOQ if you need Certification. All specifications typical at Ta=25°C, nominal input voltage and full load unless otherwise specified Input Specifications Voltage Range Current max. Current No-Load Filter Reflected Ripple Current (@12uH) General Specifications Efficiency Isolation I/O (60 sec) Isolation I.
