SA391LR1084 - SINGLE DIGIT SMD LED DISPLAY

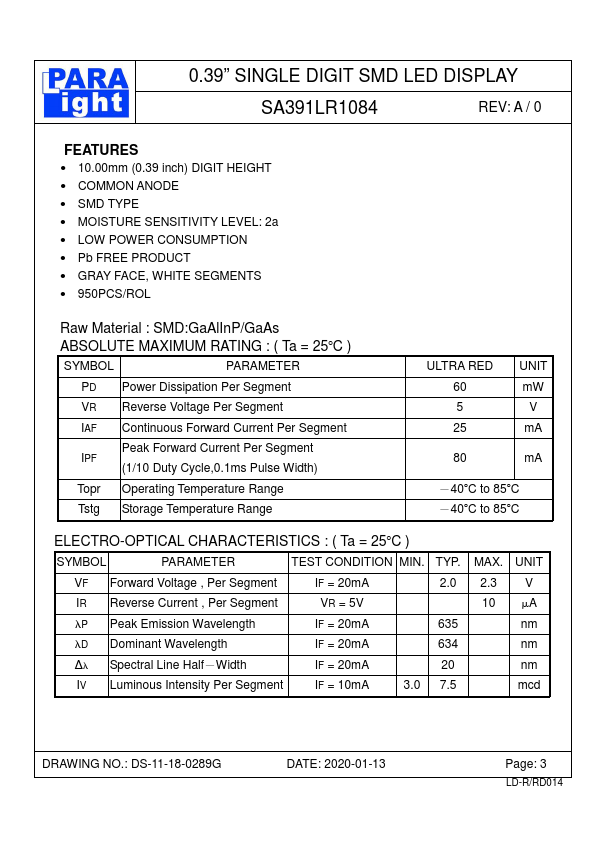

Features

  • 10.00mm (0.39 inch) DIGIT HEIGHT.
  • COMMON ANODE.
  • SMD TYPE.

📥 Download Datasheet

Datasheet Details

Part number SA391LR1084
Manufacturer PARA LIGHT
File Size 348.91 KB
Description SINGLE DIGIT SMD LED DISPLAY
Datasheet download datasheet SA391LR1084 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SA39-11EWA SINGLE DIGIT NUMERIC DISPLAY Kingbright
SA39-11EWA Single Digit Numeric Display Kingbright
SA39-11GWA SINGLE DIGIT NUMERIC DISPLAY Kingbright
SA39-11SRWA SINGLE DIGIT NUMERIC DISPLAY Kingbright
SA39-11SURKWA Single Digit Numeric Display Kingbright

Other Datasheets by PARA LIGHT

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

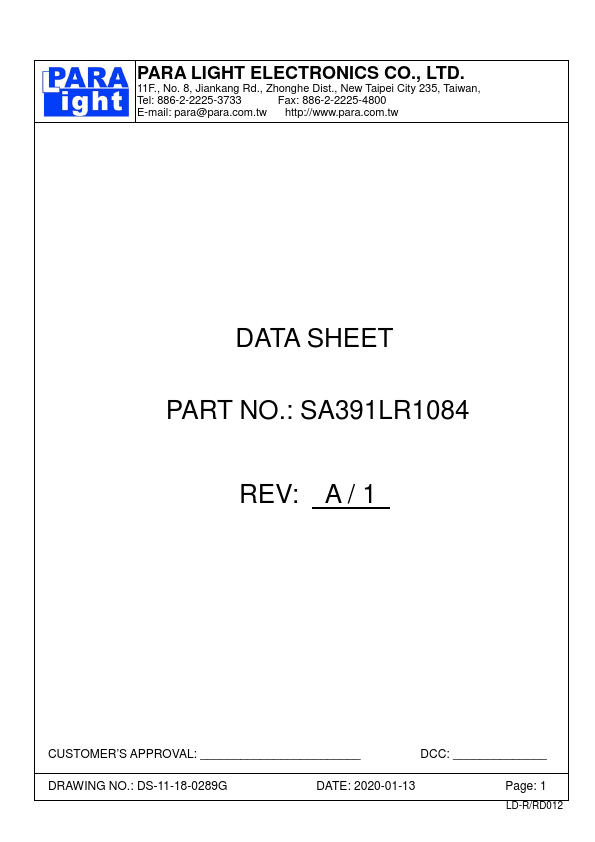

PARA LIGHT ELECTRONICS CO., LTD. 11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan, Tel: 886-2-2225-3733 Fax: 886-2-2225-4800 E-mail: para@para.com.tw http://www.para.com.tw DATA SHEET PART NO.: SA391LR1084 REV: A / 1 CUSTOMER’S APPROVAL: ________________________ DCC: ______________ DRAWING NO.: DS-11-18-0289G DATE: 2020-01-13 Page: 1 LD-R/RD012 0.39” SINGLE DIGIT SMD LED DISPLAY SA391LR1084 REV: A / 0 PACKAGE DIMENSIONS NOTES: 1. All dimensions are in millimeters (inches) 2. Tolerance is +/- 0.25mm (0.010") unless otherwise specified 3. The specifications, electrical characteristics and technical data described in this datasheet are subject to change without prior notice DRAWING NO.: DS-11-18-0289G DATE: 2020-01-13 Page: 2 LD-R/RD013 0.
