PARA LIGHT ELECTRONICS CO., LTD.
11F, No.8, Jiankang Rd,Zhonghe Dist,New Taipei City 235, Taiwan
Tel: 886-2-2225-3733
Fax: 886-2-2225-4800
E-mail: para@para.com.tw http:// www.paralighttaiwan.com

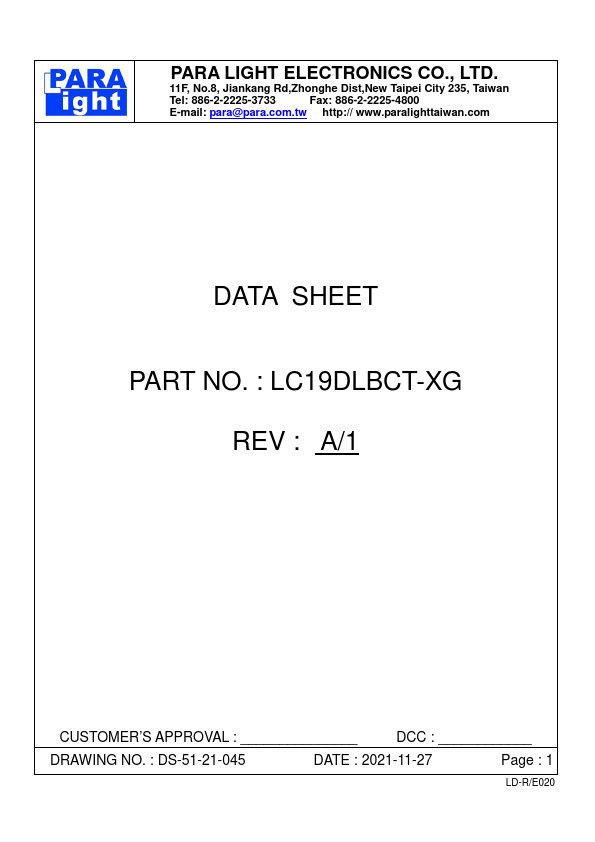

DATA SHEET
PART NO. : LC19DLBCT-XG REV : A/1
CUSTOMER’S APPROVAL : _______________
DCC : ____________
DRAWING NO. : DS-51-21-045
DATE : 2021-11-27
Page : 1
LD-R/E020
1.6*0.8*0.9 mm SMD LED LC19DLBCT-XG
REV:A/1

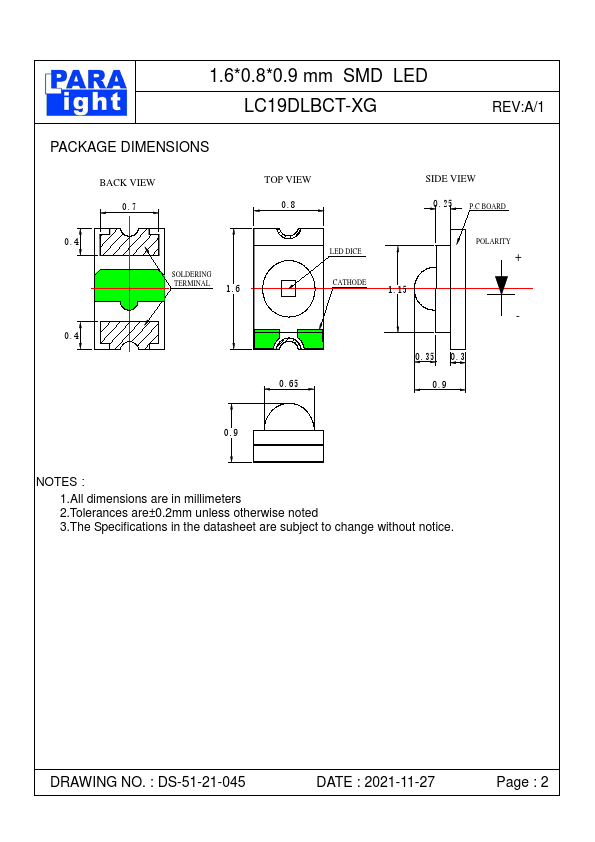

PACKAGE DIMENSIONS
BACK VIEW 0.7
TOP VIEW 0.8
SIDE VIEW 0.25 P.C BOARD
0.4
POLARITY
LED DICE
+
SOLDERING
TERMINAL 1.6
CATHODE
1.15
-
0.4 0.35 0.3
0.65
0.9
0.9
NOTES：
1.All dimensions are in millimeters 2.Tolerances are±0.2mm unless otherwise noted 3.The Specifications in the datasheet are subject to change without notice.
DRAWING NO.
LC19DLBCT-XG Datasheet
