L-T2835IR4CT-60-JH - SMD LED

Description

Generally, LED can be used the same way as other general-purpose semiconductors.

When using VANTEX'S Lamps, the following precautions must be taken to protect the LED.

SMT-LED.

Features

  •  Colorless transparent  Long service life  Can be used for a variety of infrared remote control systems, all kinds of sensors infrared light  The ideal light source for surveillance cameras.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by PARA LIGHT

Part Number Description
L-T2835IR4CT-90-JH SMD LED
L-T670WDT-NW-U1 SURFACE MOUNT DEVICE LED
L-T69FRGBCT-1.5W-S2-U1 SURFACE MOUNT DEVICE LED

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

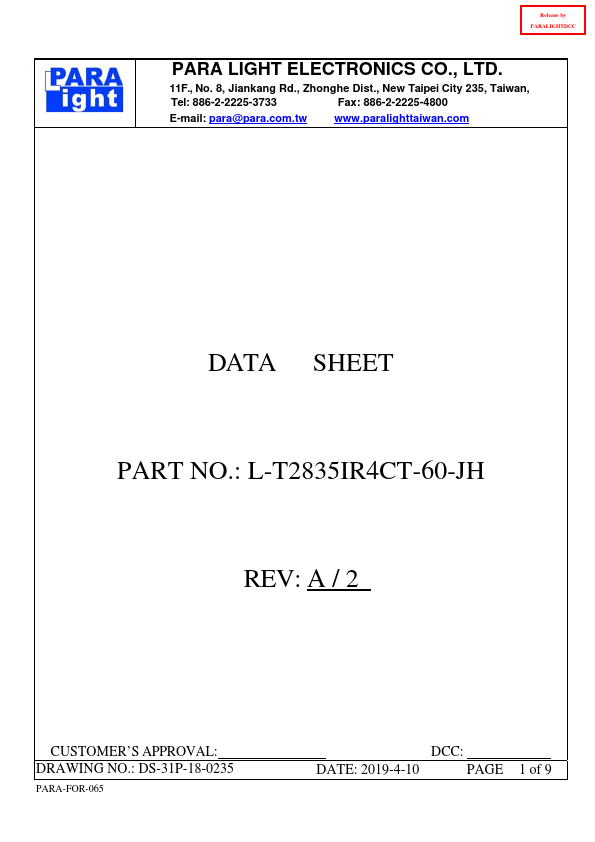

Release by PARALIGHTDCC PARA LIGHT ELECTRONICS CO., LTD. 11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan, Tel: 886-2-2225-3733 Fax: 886-2-2225-4800 E-mail: para@para.com.tw www.paralighttaiwan.com DATA SHEET PART NO.: L-T2835IR4CT-60-JH REV: A / 2 CUSTOMER’S APPROVAL: DRAWING NO.: DS-31P-18-0235 PARA-FOR-065 DCC: DATE: 2019-4-10 PAGE 1 of 9 2.8*3.5*2.6 MM SMD LED Part No.: L-T2835IR4CT-60-JH  Mechanical dimension Release by PARALIGHTDCC REV:A / 2  Features  Colorless transparent  Long service life  Can be used for a variety of infrared remote control systems, all kinds of sensors infrared light  The ideal light source for surveillance cameras DRAWING NO.: DS-31P-18-0235 PARA-FOR-068 DATE: 2019-4-10 PAGE 2 of 9 Release by PARALIGHTDCC 2.8*3.
