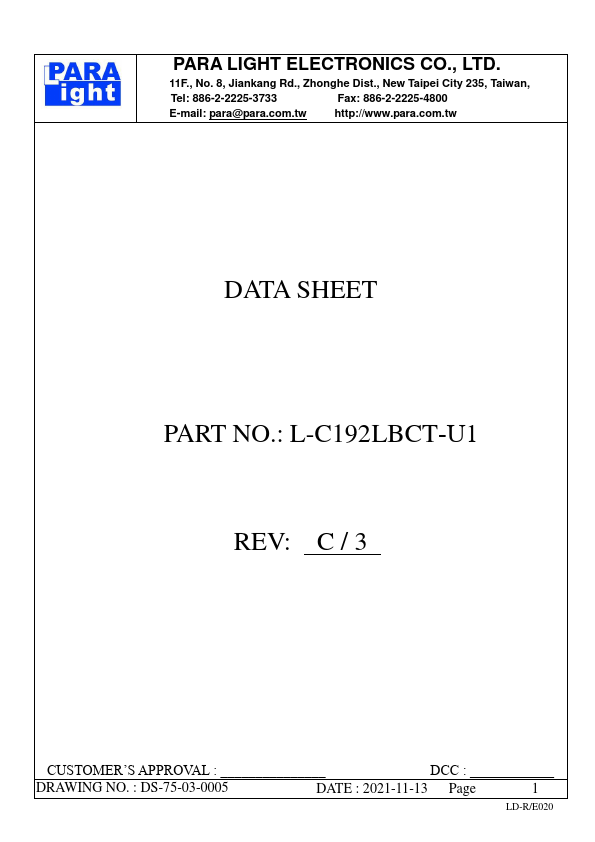

PARA LIGHT ELECTRONICS CO., LTD.
11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan,
Tel: 886-2-2225-3733
Fax: 886-2-2225-4800
E-mail: para@para.com.tw http://www.para.com.tw
DATA SHEET PART NO.: L-C192LBCT-U1
REV: C / 3
CUSTOMER’S APPROVAL : _______________
DCC : ____________
DRAWING NO. : DS-75-03-0005
DATE : 2021-11-13 Page
1
LD-R/E020
SURFACE MOUNT DEVICE LED
Part No. : L-C192LBCT-U1
REV:C / 3

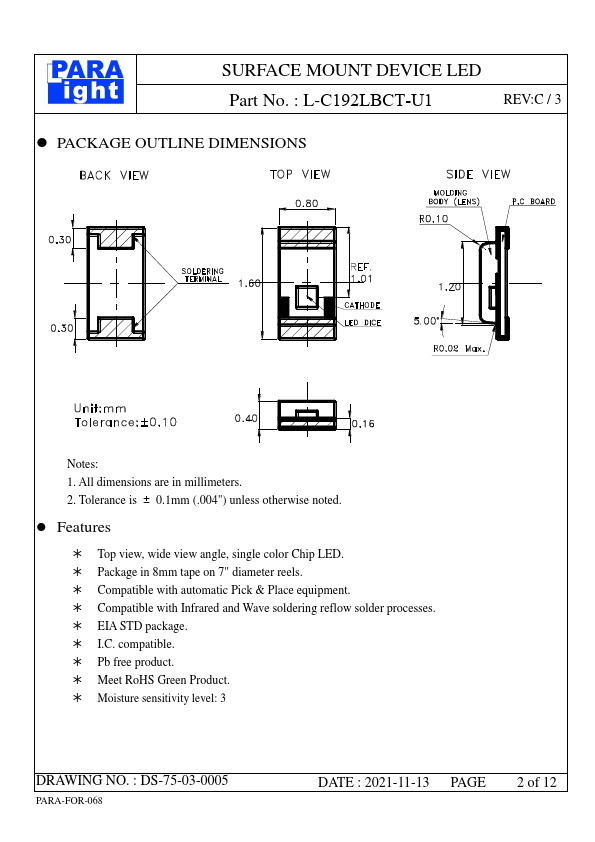

PACKAGE OUTLINE DIMENSIONS
Notes: 1. All dimensions are in millimeters. 2. Tolerance is ± 0.1mm (.004") unless otherwise noted.
Features
Top view, wide view angle, single color Chip LED. Package in 8mm tape on 7" diameter reels. Compatible with automatic Pick & Place equipment. Compatible with Infrared and Wave soldering reflow solder processes.
