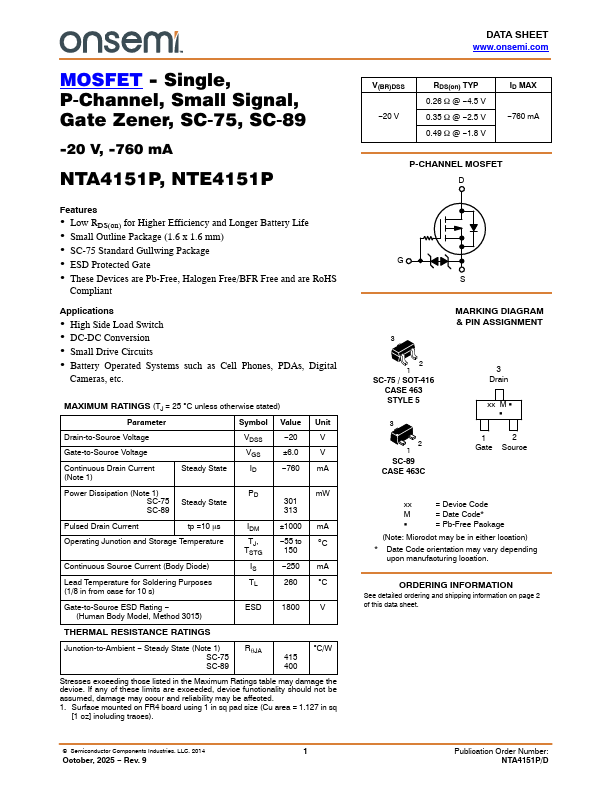

NTA4151P, NTE4151P
MOSFET – Single, P-Channel, Small Signal, Gate Zener, SC-75, SC-89
-20 V, -760 mA
Features
• Low RDS(on) for Higher Efficiency and Longer Battery Life • Small Outline Package (1.6 x 1.6 mm) • SC−75 Standard Gullwing Package • ESD Protected Gate • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Applications
• High Side Load Switch • DC−DC Conversion • Small Drive Circuits • Battery Operated Systems such as Cell Phones, PDAs, Digital
Cameras, etc.
MAXIMUM RATINGS (TJ = 25°C unless otherwise stated)
Parameter
Symbol Value Units
Drain−to−Source Voltage
Gate−to−Source Voltage
Continuous Drain Current (Note 1)
Steady State
VDSS VGS ID
−20
V
±6.
