G3VM-101WR - MOS FET Relays

Download the G3VM-101WR datasheet PDF. This datasheet also covers the G3VM-31WR variant, as both devices belong to the same mos fet relays family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (G3VM-31WR-Omron.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
G3VM-21GR1 MOS FET Relays Omron Electronics
G3VM-2x G3VM Series MOS Fet Relaysdata Sheet Omron Corporation
G3VM-351G MOS FET Relays Omron Electronics
G3VM-351H MOS FET Relays Omron Electronics
G3VM-352C MOS FET Relays Omron Electronics

Other Datasheets by OMRON

Part Number Description
G3VM-101BR MOS FET Relays
G3VM-101CR MOS FET Relays
G3VM-101ER MOS FET Relays
G3VM-101FR MOS FET Relays
G3VM-101QR1 MOS FET Relays

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

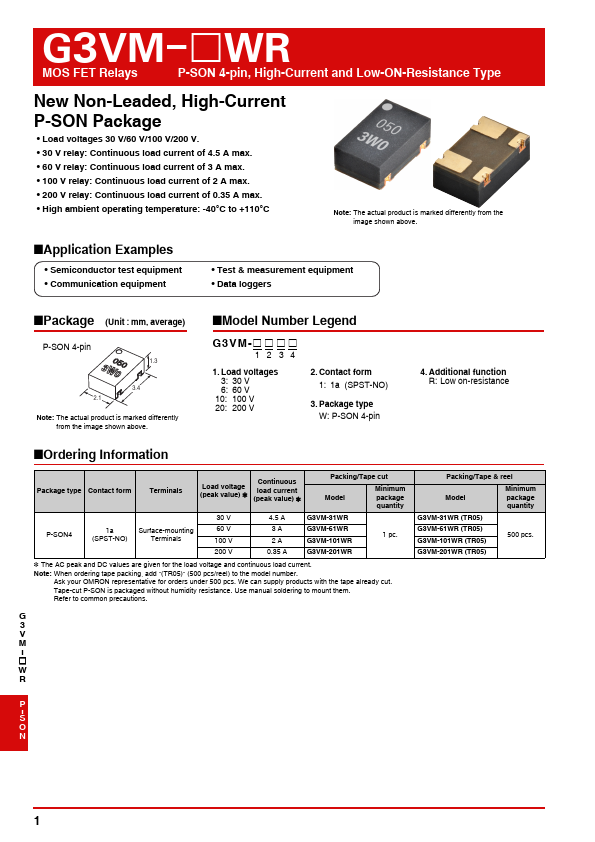

G3VM-…WR MOS FET Relays P-SON 4-pin, High-Current and Low-ON-Resistance Type New Non-Leaded, High-Current P-SON Package • Load voltages 30 V/60 V/100 V/200 V. • 30 V relay: Continuous load current of 4.5 A max. • 60 V relay: Continuous load current of 3 A max. • 100 V relay: Continuous load current of 2 A max. • 200 V relay: Continuous load current of 0.35 A max. • High ambient operating temperature: -40°C to +110°C Note: The actual product is marked differently from the image shown above. ■Application Examples • Semiconductor test equipment • Communication equipment • Test & measurement equipment • Data loggers ■Package (Unit : mm, average) P-SON 4-pin 3W0050 1.3 3.4 2.1 Note: The actual product is marked differently from the image shown above.
