LWY1SG - Enhanced optical Power LED

Product Overview

OSRAM

📥 Download Datasheet

LWY1SG Enhanced optical Power LED by OSRAM - Datasheet Preview — Datasheet preview – LWY1SG

Datasheet Details

Part number	LWY1SG
Manufacturer	OSRAM
File Size	635.96 KB
Description	Enhanced optical Power LED
Datasheet	LWY1SG Datasheet

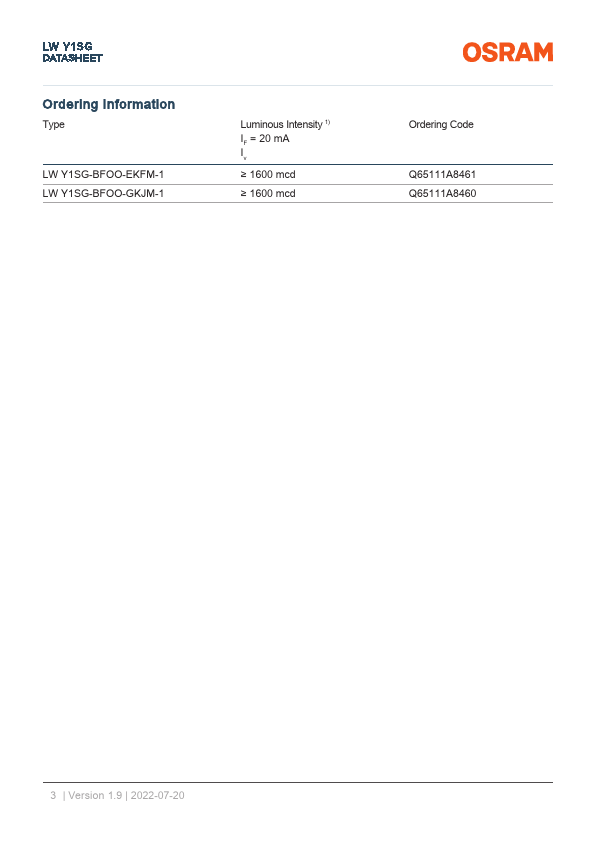

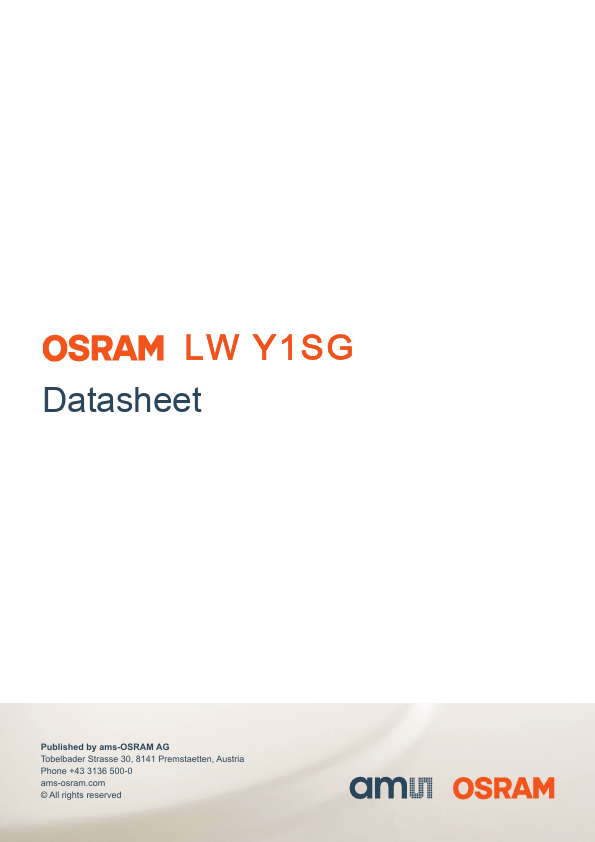

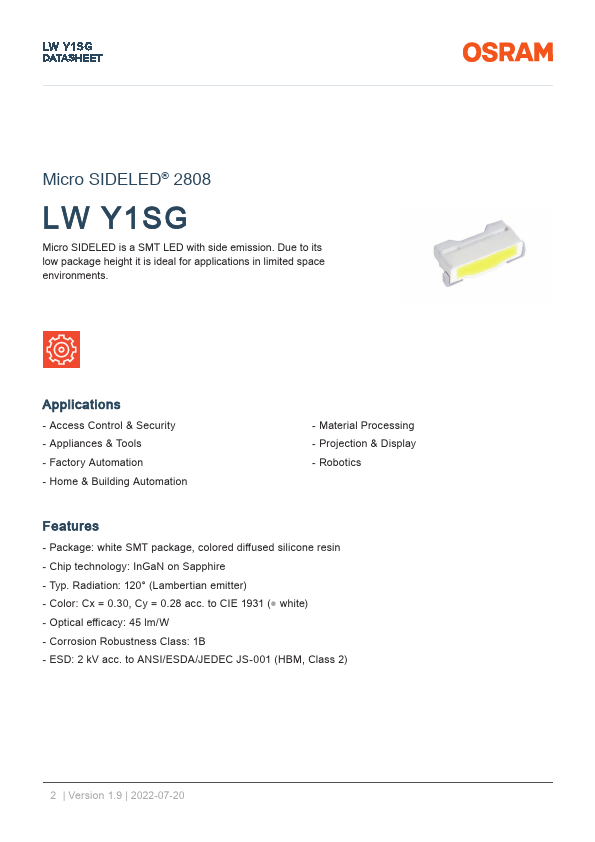

Additional preview pages of the LWY1SG datasheet.

Product details

Features

package: white SMT package, colored diffused silicone resin.
feature of the device: small package with radiation direction parallel to PCB, so an ideal LED for coupling in light guides.
color coordinates: x = 0.30, y = 0.28 acc. to CIE 1931 (white).
typ. color temperature: 8200 K.
color reproduction index: 80.
viewing angle: Lambertian Emitter (120°).
optical efficiency: 45 lm/W.
grouping parameter: luminous intensity, colo.
