SBRD81035CTL - Switch-mode Schottky Power Rectifier

Features

  • epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency switching power supplies, free wheeling diode and polarity protection diodes. Features.
  • Highly Stable Oxide Passivated Junction.
  • Guardring for Stress Protection.
  • Matched Dual Die Construction.
  • May be Paralleled for High Current Output.
  • High dv/dt Capability.
  • Short Heat Sink Tap Manufactured.
  • Not Sheared.
  • Ve.

📥 Download Datasheet

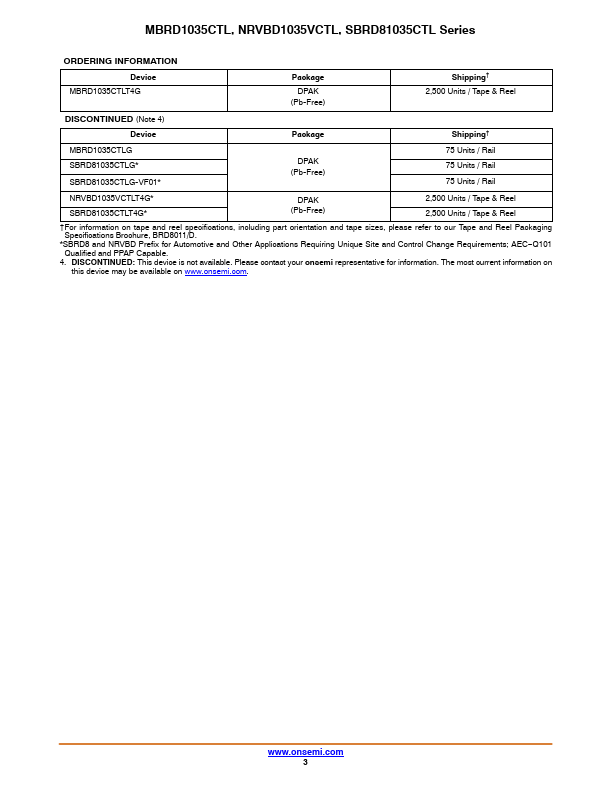

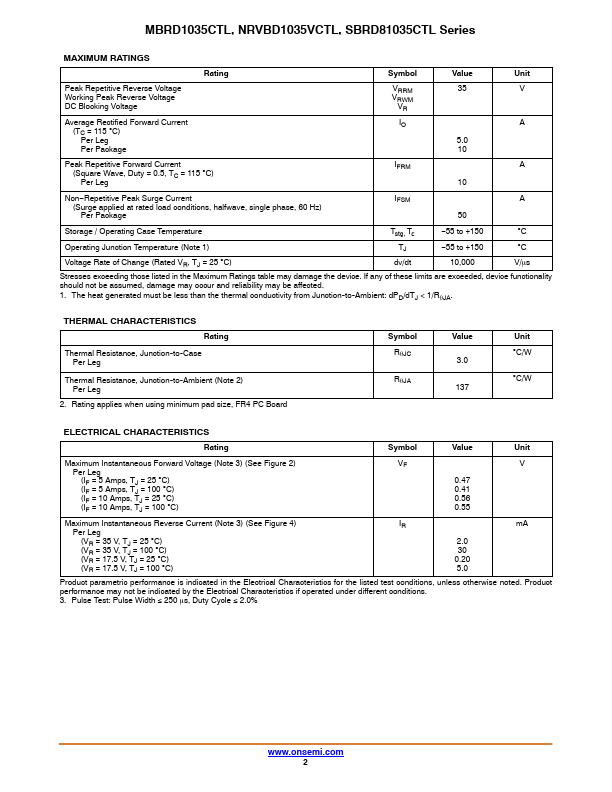

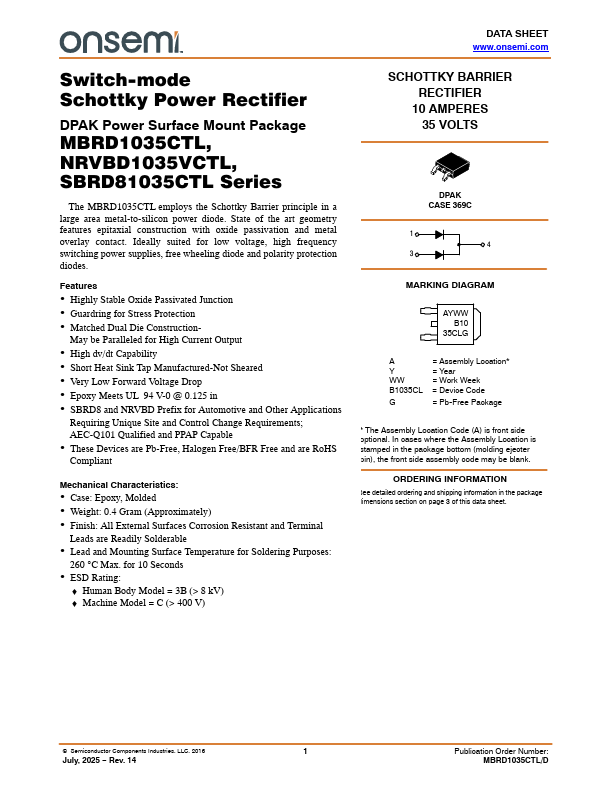

Datasheet preview – SBRD81035CTL

Datasheet Details

Part number SBRD81035CTL
Manufacturer ON Semiconductor
File Size 238.09 KB
Description Switch-mode Schottky Power Rectifier
Datasheet download datasheet SBRD81035CTL Datasheet
Additional preview pages of the SBRD81035CTL datasheet.
