NSVPZTA92T1G - High Voltage Transistor

Features

  • Complement to PZTA42T1G.
  • NSV Prefix for Automotive and Other.

📥 Download Datasheet

Datasheet preview – NSVPZTA92T1G

Datasheet Details

Part number NSVPZTA92T1G
Manufacturer ON Semiconductor
File Size 65.89 KB
Description High Voltage Transistor
Datasheet download datasheet NSVPZTA92T1G Datasheet

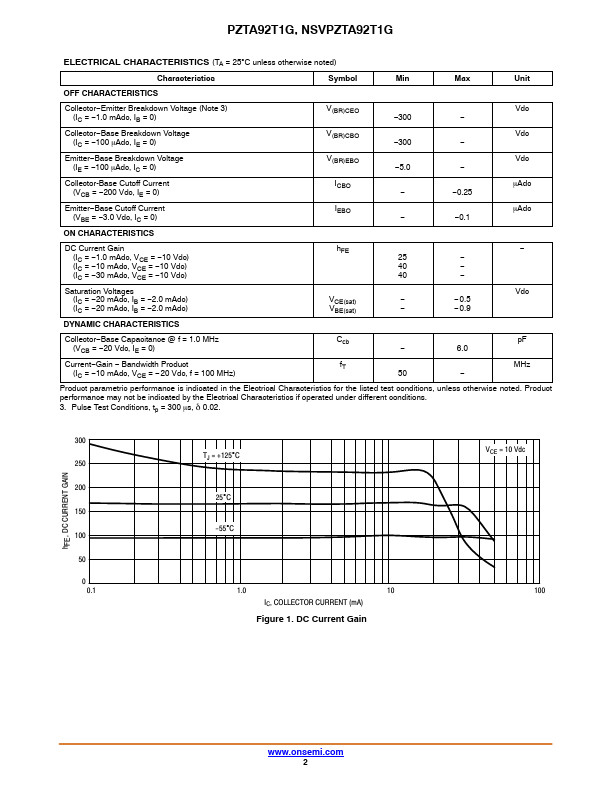

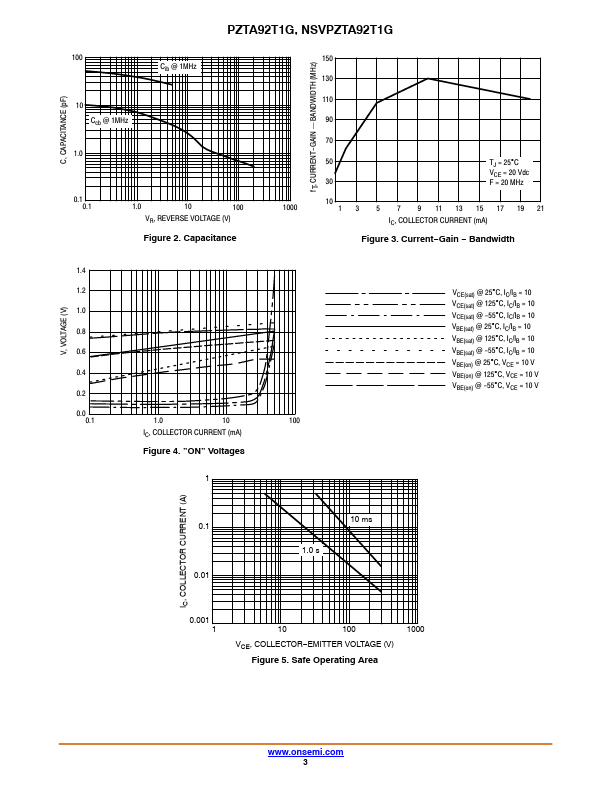

Additional preview pages of the NSVPZTA92T1G datasheet.

📁 Similar Datasheet

  • NSVA253 - SAW FILTER (New Japan Radio)
  • NSVA254 - SAW FILTER (New Japan Radio)
  • NSVA276 - SAW FILTER (New Japan Radio)
  • NSVA277 - SAW FILTER (New Japan Radio)
  • NSVA279 - SAW FILTER (New Japan Radio)
  • NSVA288 - JRC SAW FILTER (ETC)
  • NSVA288 - SAW FILTER (New Japan Radio)
  • NSVA300 - SAW FILTER (New Japan Radio)
  • NSVA301 - SAW FILTER (New Japan Radio)
  • NSVA321 - SAW FILTER (New Japan Radio)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text

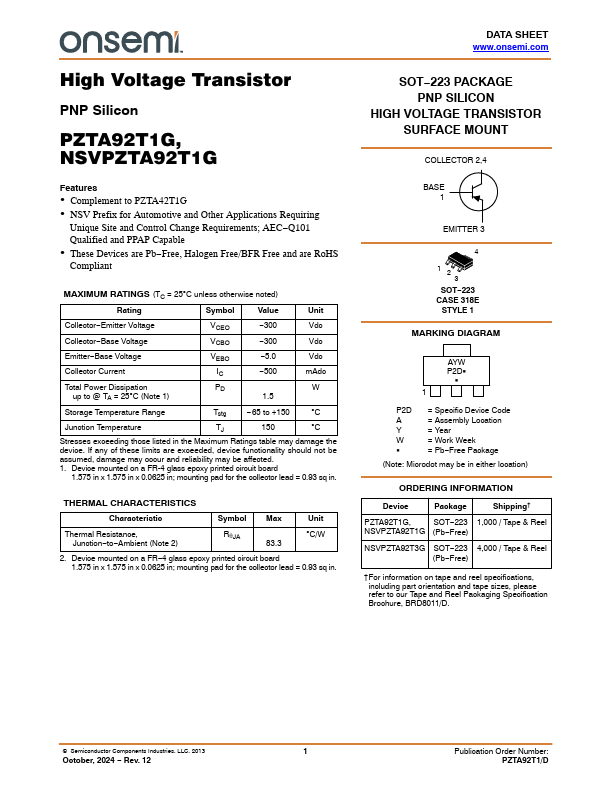

PZTA92T1G, NSVPZTA92T1G High Voltage Transistor PNP Silicon Features • Complement to PZTA42T1G • NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TC = 25°C unless otherwise noted) Rating Symbol Value Unit Collector−Emitter Voltage Collector−Base Voltage Emitter−Base Voltage Collector Current Total Power Dissipation up to @ TA = 25°C (Note 1) VCEO VCBO VEBO IC PD −300 −300 −5.0 −500 1.5 Vdc Vdc Vdc mAdc W Storage Temperature Range Tstg − 65 to +150 °C Junction Temperature TJ 150 °C Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only.
