NSVMMBTH10L - VHF/UHF Transistor

Datasheet Summary

Features

S and NSV Prefixes for Automotive and Other.

ON Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	NSVMMBTH10L
Manufacturer	ON Semiconductor
File Size	83.55 KB
Description	VHF/UHF Transistor
Datasheet	NSVMMBTH10L Datasheet

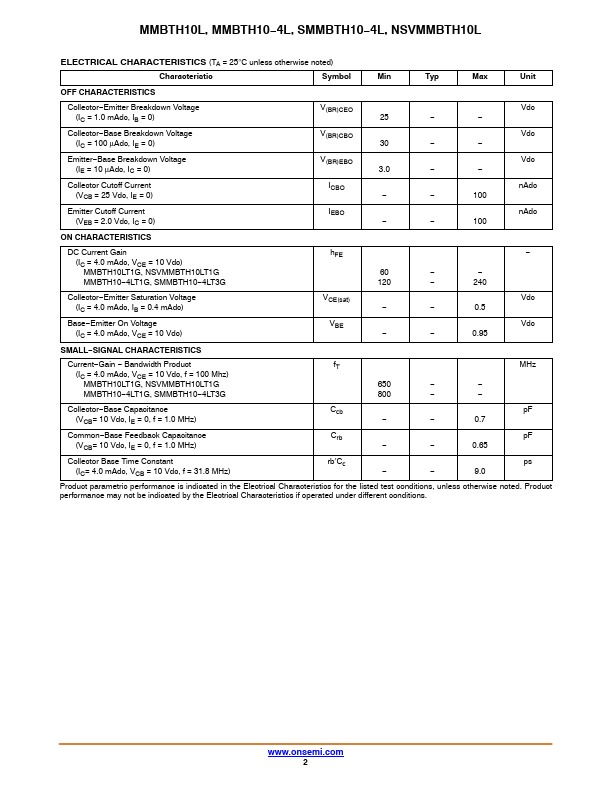

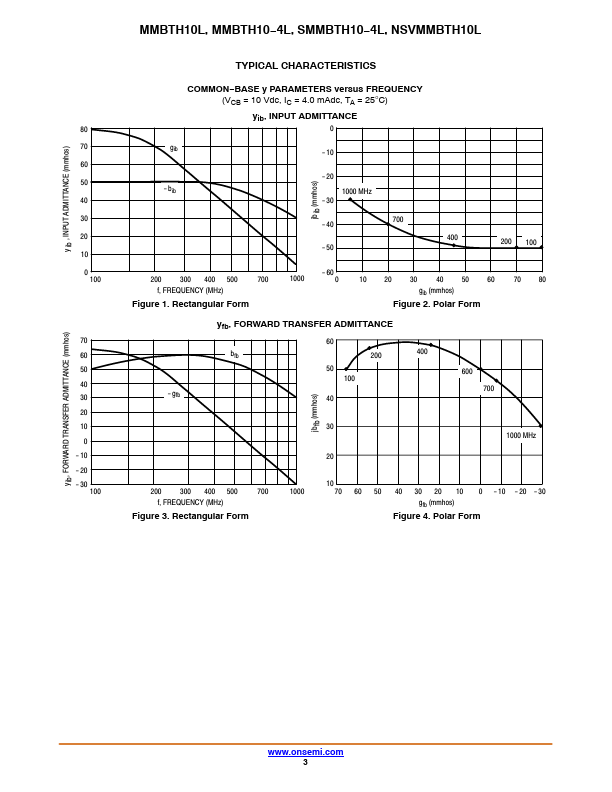

Additional preview pages of the NSVMMBTH10L datasheet.

📁 Similar Datasheet

NSVA253 - SAW FILTER (New Japan Radio)
NSVA254 - SAW FILTER (New Japan Radio)
NSVA276 - SAW FILTER (New Japan Radio)
NSVA277 - SAW FILTER (New Japan Radio)
NSVA279 - SAW FILTER (New Japan Radio)
NSVA288 - JRC SAW FILTER (ETC)
NSVA288 - SAW FILTER (New Japan Radio)
NSVA300 - SAW FILTER (New Japan Radio)
NSVA301 - SAW FILTER (New Japan Radio)
NSVA321 - SAW FILTER (New Japan Radio)

Other Datasheets by ON Semiconductor

NSVMMBT2222ATT1G - General Purpose Transistor
NSVMMBT2907AWT1G - General Purpose Transistor
NSVMMBT5401L - High Voltage Transistor
NSVMMBT5401LT3G - High Voltage Transistor
NSVMMBT589LT1G - High Current Surface Mount PNP Silicon Switching Transistor
NSVMMBT6429LT1G - Amplifier Transistors
NSVMMBT6520L - High Voltage Transistor
NSVMMBD352WT1G - Dual Schottky Barrier Diode

Full PDF Text Transcription

Click to expand full text

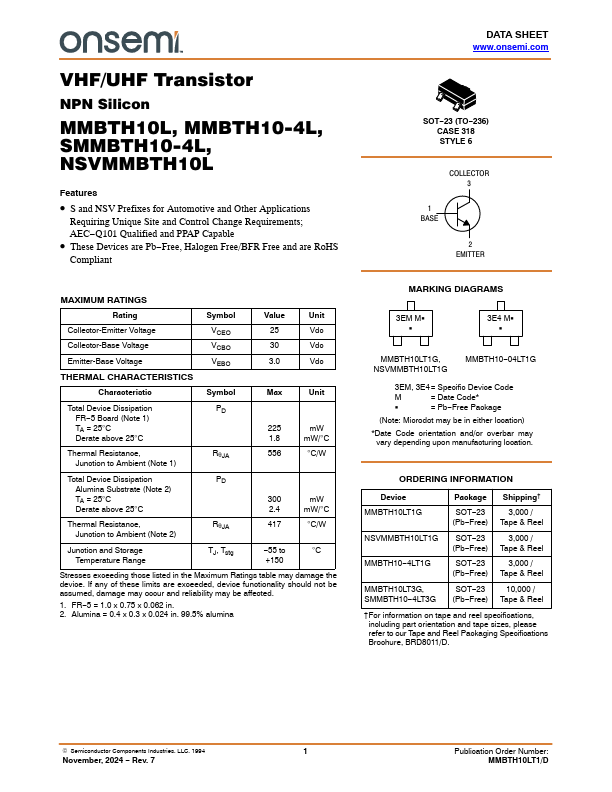

MMBTH10L, MMBTH10-4L, SMMBTH10-4L, NSVMMBTH10L VHF/UHF Transistor NPN Silicon Features • S and NSV Prefixes for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS Rating Symbol Value Unit Collector-Emitter Voltage VCEO 25 Vdc Collector-Base Voltage Emitter-Base Voltage THERMAL CHARACTERISTICS VCBO VEBO 30 Vdc 3.0 Vdc Characteristic Symbol Max Unit Total Device Dissipation FR−5 Board (Note 1) TA = 25°C Derate above 25°C PD 225 mW 1.8 mW/°C Thermal Resistance, Junction to Ambient (Note 1) RθJA 556 °C/W Total Device Dissipation Alumina Substrate (Note 2) TA = 25°C Derate above 25°C PD 300 mW 2.

Published: Jul 30, 2017 |
