NSVMMBT6520L - High Voltage Transistor

Datasheet Summary

Features

NSV Prefix for Automotive and Other.

ON Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	NSVMMBT6520L
Manufacturer	ON Semiconductor
File Size	126.97 KB
Description	High Voltage Transistor
Datasheet	NSVMMBT6520L Datasheet

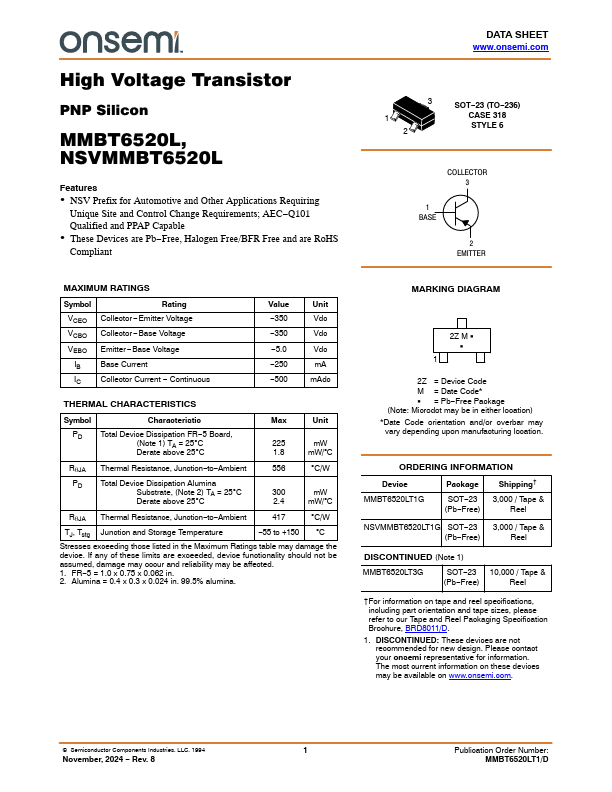

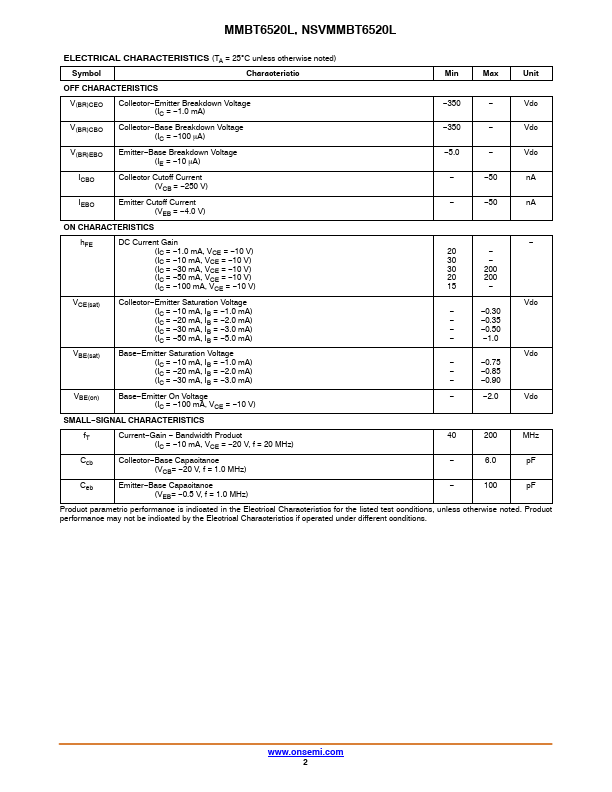

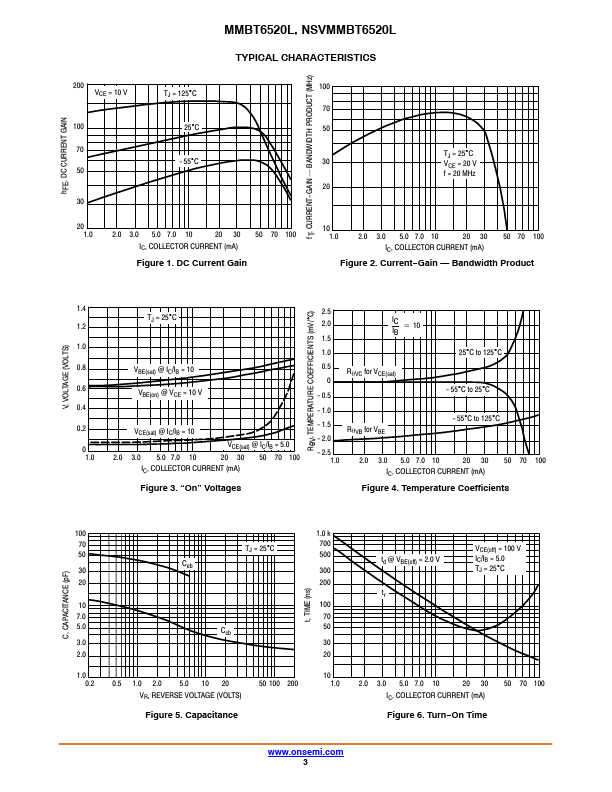

Additional preview pages of the NSVMMBT6520L datasheet.

📁 Similar Datasheet

NSVA253 - SAW FILTER (New Japan Radio)
NSVA254 - SAW FILTER (New Japan Radio)
NSVA276 - SAW FILTER (New Japan Radio)
NSVA277 - SAW FILTER (New Japan Radio)
NSVA279 - SAW FILTER (New Japan Radio)
NSVA288 - JRC SAW FILTER (ETC)
NSVA288 - SAW FILTER (New Japan Radio)
NSVA300 - SAW FILTER (New Japan Radio)
NSVA301 - SAW FILTER (New Japan Radio)
NSVA321 - SAW FILTER (New Japan Radio)

Other Datasheets by ON Semiconductor

NSVMMBT6429LT1G - Amplifier Transistors
NSVMMBT2222ATT1G - General Purpose Transistor
NSVMMBT2907AWT1G - General Purpose Transistor
NSVMMBT5401L - High Voltage Transistor
NSVMMBT5401LT3G - High Voltage Transistor
NSVMMBT589LT1G - High Current Surface Mount PNP Silicon Switching Transistor
NSVMMBTH10L - VHF/UHF Transistor
NSVMMBD352WT1G - Dual Schottky Barrier Diode

Full PDF Text Transcription

Click to expand full text

MMBT6520L, NSVMMBT6520L High Voltage Transistor PNP Silicon Features • NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS Rating Collector −Emitter Voltage Collector −Base Voltage Emitter −Base Voltage Base Current Collector Current − Continuous THERMAL CHARACTERISTICS Symbol VCEO VCBO VEBO IB IC Value −350 −350 −5.0 −250 −500 Unit Vdc Vdc Vdc mA mAdc Characteristic Total Device Dissipation FR−5 Board, (Note 1) TA = 25°C Derate above 25°C Symbol PD Max 225 1.
