NSVBAV70T - Dual Switching Diode

Datasheet Summary

Features

  • NSV Prefix for Automotive and Other.

📥 Download Datasheet

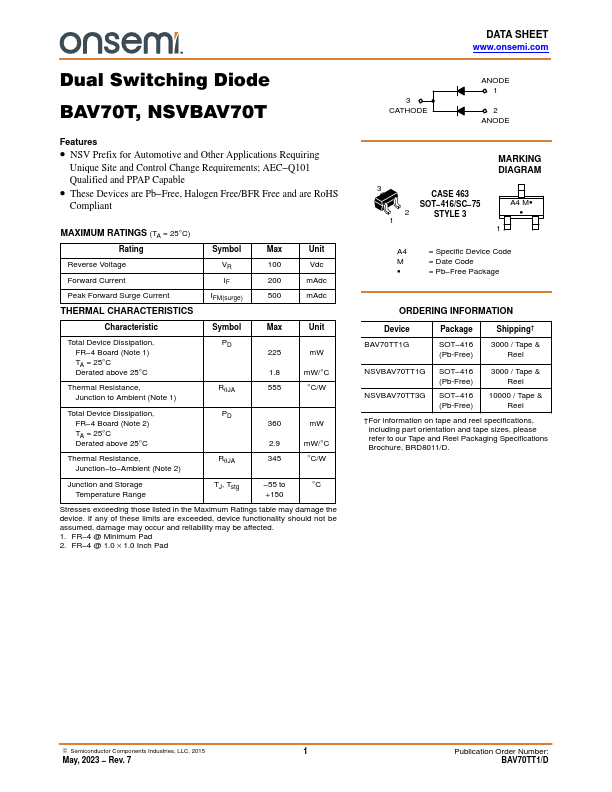

Datasheet preview – NSVBAV70T

Datasheet Details

Part number NSVBAV70T
Manufacturer ON Semiconductor
File Size 60.61 KB
Description Dual Switching Diode
Datasheet download datasheet NSVBAV70T Datasheet

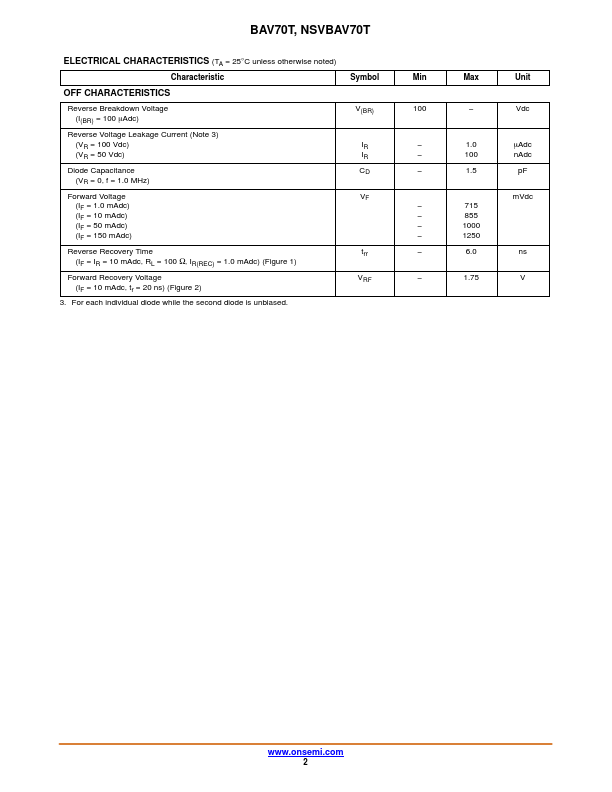

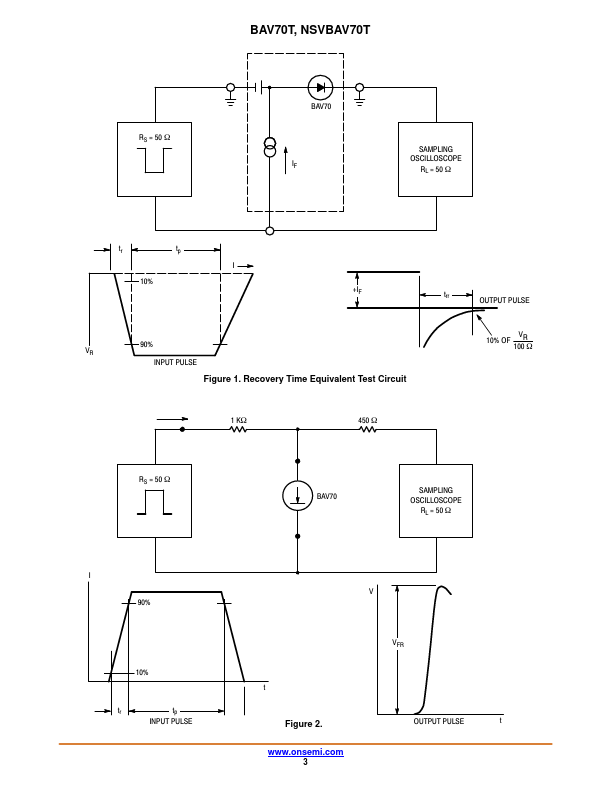

Additional preview pages of the NSVBAV70T datasheet.

📁 Similar Datasheet

  • NSVA253 - SAW FILTER (New Japan Radio)
  • NSVA254 - SAW FILTER (New Japan Radio)
  • NSVA276 - SAW FILTER (New Japan Radio)
  • NSVA277 - SAW FILTER (New Japan Radio)
  • NSVA279 - SAW FILTER (New Japan Radio)
  • NSVA288 - JRC SAW FILTER (ETC)
  • NSVA288 - SAW FILTER (New Japan Radio)
  • NSVA300 - SAW FILTER (New Japan Radio)
  • NSVA301 - SAW FILTER (New Japan Radio)
  • NSVA321 - SAW FILTER (New Japan Radio)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
BAV70T, NSVBAV70T Dual Switching Diode Features • NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TA = 25°C) Rating Symbol Max Unit Reverse Voltage VR 100 Vdc Forward Current IF 200 mAdc Peak Forward Surge Current IFM(surge) 500 mAdc THERMAL CHARACTERISTICS Characteristic Symbol Max Unit Total Device Dissipation, FR−4 Board (Note 1) TA = 25°C Derated above 25°C PD 225 mW 1.8 mW/°C Thermal Resistance, Junction to Ambient (Note 1) RqJA 555 °C/W Total Device Dissipation, FR−4 Board (Note 2) TA = 25°C Derated above 25°C PD 360 mW 2.
