NSV9435T1G - High Current Bias Resistor Transistor

Features

  • Collector.
  • Emitter Sustaining Voltage.
  • VCEO(sus) = 30 Vdc (Min) @ IC = 10 mAdc.
  • High DC Current Gain.
  • hFE = 125 (Min) @ IC = 0.8 Adc = 90 (Min) @ IC = 3.0 Adc.
  • Low Collector.
  • Emitter Saturation Voltage.
  • VCE(sat) = 0.275 Vdc (Max) @ IC = 1.2 Adc = 0.55 Vdc (Max) @ IC = 3.0 Adc.
  • SOT.
  • 223 Surface Mount Packaging.
  • ESD Rating.
  • Human Body Model: Class 1B.
  • Machine Model: Class B.
  • AEC.
  • Q101 Qualifie.

📥 Download Datasheet

Datasheet Details

Part number NSV9435T1G
Manufacturer onsemi
File Size 139.42 KB
Description High Current Bias Resistor Transistor
Datasheet download datasheet NSV9435T1G Datasheet

📁 Similar Datasheet

  • NSVA253 - SAW FILTER (New Japan Radio)
  • NSVA254 - SAW FILTER (New Japan Radio)
  • NSVA276 - SAW FILTER (New Japan Radio)
  • NSVA277 - SAW FILTER (New Japan Radio)
  • NSVA279 - SAW FILTER (New Japan Radio)
  • NSVA288 - JRC SAW FILTER (ETC)
  • NSVA288 - SAW FILTER (New Japan Radio)
  • NSVA300 - SAW FILTER (New Japan Radio)
  • NSVA301 - SAW FILTER (New Japan Radio)
  • NSVA321 - SAW FILTER (New Japan Radio)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text

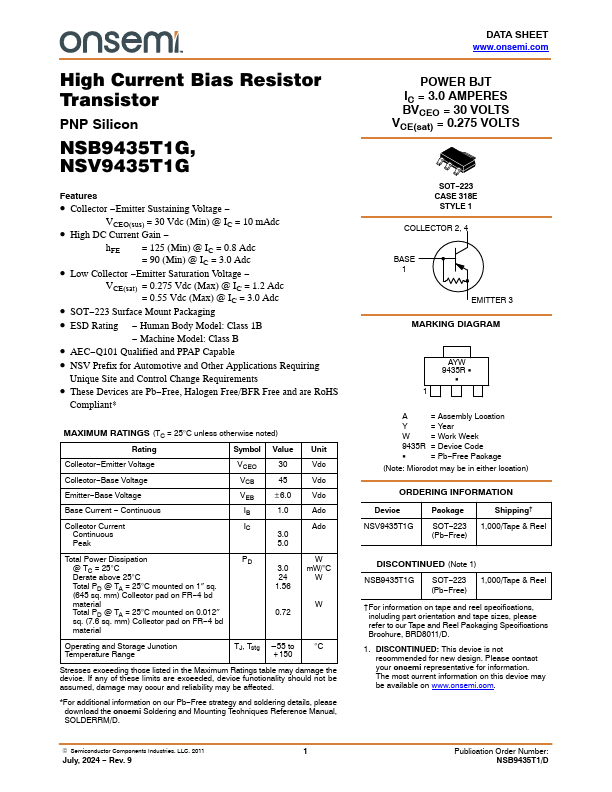

NSB9435T1G, NSV9435T1G High Current Bias Resistor Transistor PNP Silicon Features  Collector −Emitter Sustaining Voltage − VCEO(sus) = 30 Vdc (Min) @ IC = 10 mAdc  High DC Current Gain − hFE = 125 (Min) @ IC = 0.8 Adc = 90 (Min) @ IC = 3.0 Adc  Low Collector −Emitter Saturation Voltage − VCE(sat) = 0.275 Vdc (Max) @ IC = 1.2 Adc = 0.55 Vdc (Max) @ IC = 3.
