NSBA124EF3 - Digital Transistors

Features

  • Simplifies Circuit Design.
  • Reduces Board Space.
  • Reduces Component Count.
  • S and NSV Prefix for Automotive and Other.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NSB8AT GLASS PASSIVATED GENERAL PURPOSE PLASTIC RECTIFIER General
NSB8BT GLASS PASSIVATED GENERAL PURPOSE PLASTIC RECTIFIER General
NSB8DT GLASS PASSIVATED GENERAL PURPOSE PLASTIC RECTIFIER General
NSB8GT GLASS PASSIVATED GENERAL PURPOSE PLASTIC RECTIFIER General
NSB8JT GLASS PASSIVATED GENERAL PURPOSE PLASTIC RECTIFIER General

Other Datasheets by onsemi

Part Number Description
NSBA124EDP6 Dual PNP Bias Resistor Transistors
NSBA124EDXV6 Dual PNP Bias Resistor Transistors
NSBA124XDXV6 Dual PNP Bias Resistor Transistors
NSBA124XDXV6T1G Dual PNP Bias Resistor Transistors
NSBA124XF3 Digital Transistors

Full PDF Text Transcription

Click to expand full text

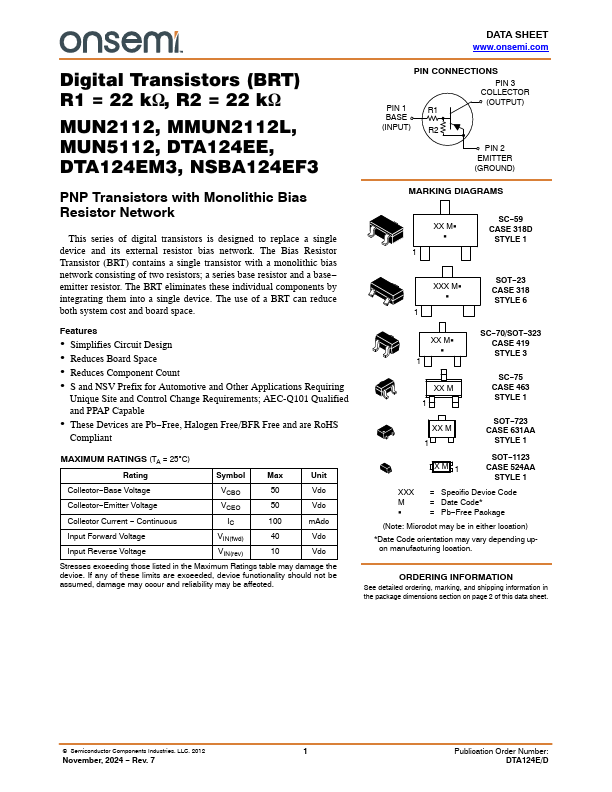

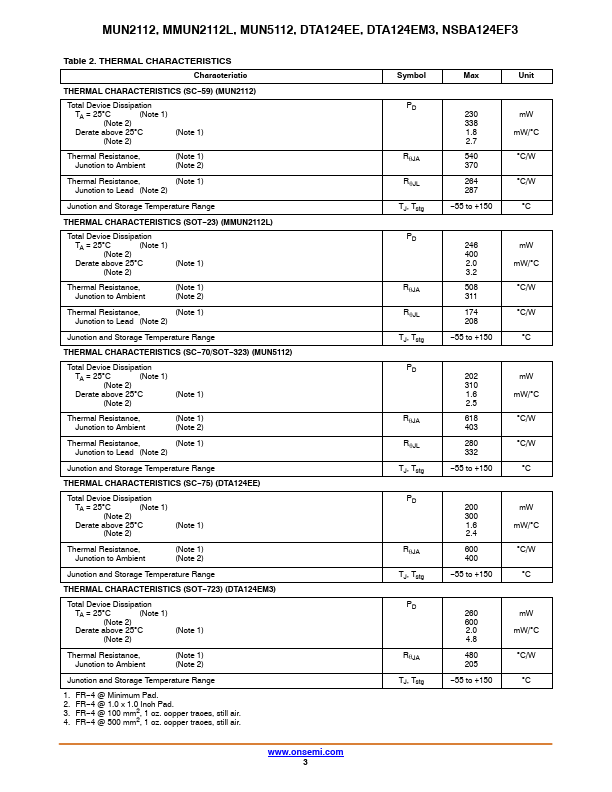

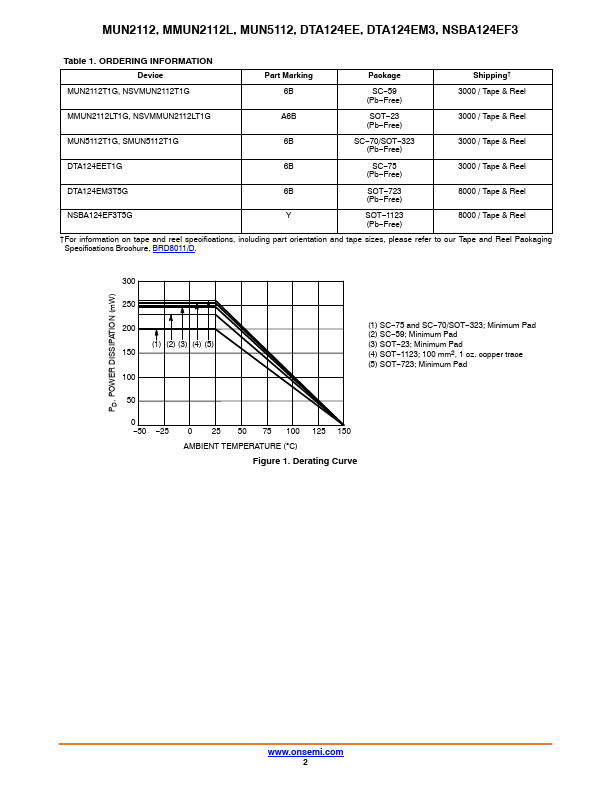

MUN2112, MMUN2112L, MUN5112, DTA124EE, DTA124EM3, NSBA124EF3 Digital Transistors (BRT) R1 = 22 kW, R2 = 22 kW PNP Transistors with Monolithic Bias Resistor Network This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base− emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space.
