NSB9435T1G Datasheet PDF - ON Semiconductor High Current Bias Resistor Transistor Specs

NSB9435T1G - High Current Bias Resistor Transistor

Datasheet Summary

Features

Collector.
Emitter Sustaining Voltage.
VCEO(sus) = 30 Vdc (Min) @ IC = 10 mAdc.
High DC Current Gain.
hFE = 125 (Min) @ IC = 0.8 Adc = 90 (Min) @ IC = 3.0 Adc.
Low Collector.
Emitter Saturation Voltage.
VCE(sat) = 0.275 Vdc (Max) @ IC = 1.2 Adc = 0.55 Vdc (Max) @ IC = 3.0 Adc.
SOT.
223 Surface Mount Packaging.
ESD Rating.
Human Body Model: Class 1B.
Machine Model: Class B.
AEC.
Q101 Qualifie.

Datasheet Details

Part number	NSB9435T1G
Manufacturer	ON Semiconductor
File Size	139.42 KB
Description	High Current Bias Resistor Transistor
Datasheet	NSB9435T1G Datasheet

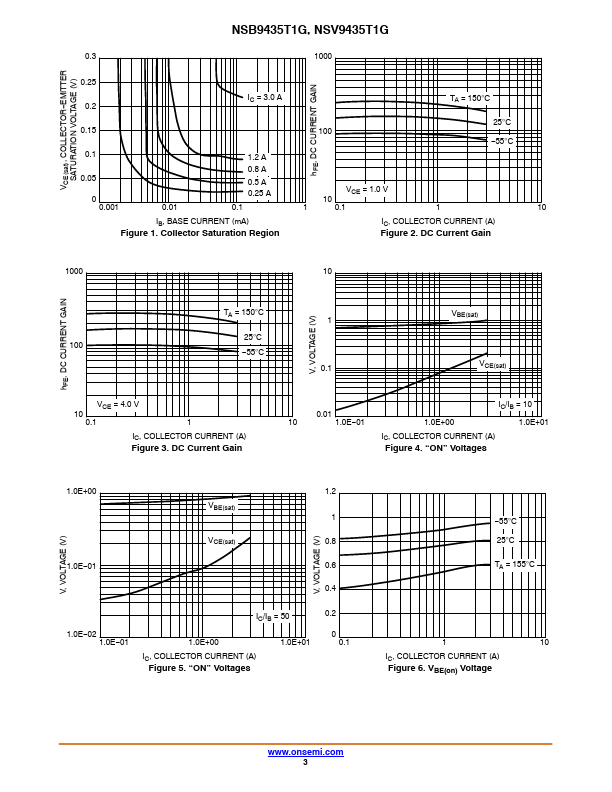

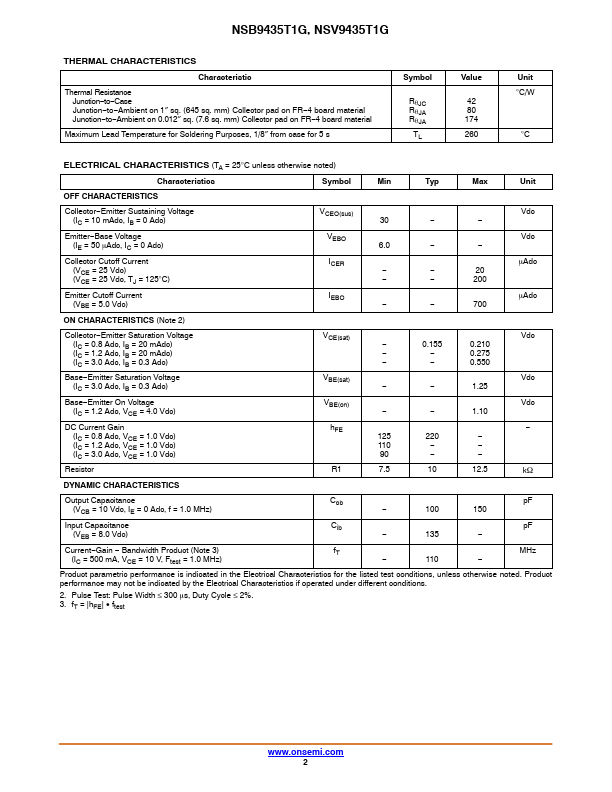

Additional preview pages of the NSB9435T1G datasheet.

📁 Similar Datasheet

NSB8AT - GLASS PASSIVATED GENERAL PURPOSE PLASTIC RECTIFIER (General)

NSB8BT - GLASS PASSIVATED GENERAL PURPOSE PLASTIC RECTIFIER (General)

NSB8DT - GLASS PASSIVATED GENERAL PURPOSE PLASTIC RECTIFIER (General)

NSB8GT - GLASS PASSIVATED GENERAL PURPOSE PLASTIC RECTIFIER (General)

NSB8JT - GLASS PASSIVATED GENERAL PURPOSE PLASTIC RECTIFIER (General)

NSB8KT - GLASS PASSIVATED GENERAL PURPOSE PLASTIC RECTIFIER (General)

NSB8MT - GLASS PASSIVATED GENERAL PURPOSE PLASTIC RECTIFIER (General)

NSBLL066A - SPECIFICATIONS FOR WARM WHITE LED (NICHIA CORPORATION)

NSBLL121A - SPECIFICATIONS FOR WARM WHITE LED (NICHIA CORPORATION)

NSBMC096-16 - Burst Memory Controller (National)

Full PDF Text Transcription

Click to expand full text

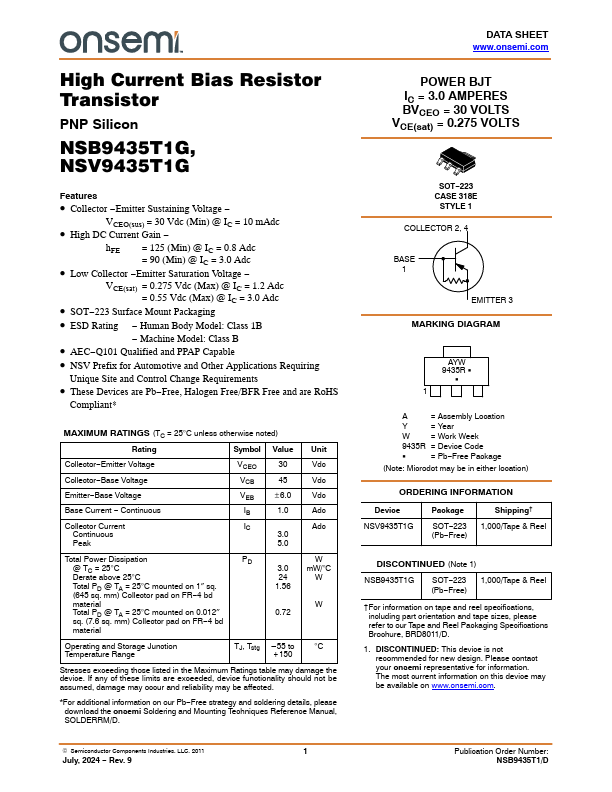

NSB9435T1G, NSV9435T1G High Current Bias Resistor Transistor PNP Silicon Features  Collector −Emitter Sustaining Voltage − VCEO(sus) = 30 Vdc (Min) @ IC = 10 mAdc  High DC Current Gain − hFE = 125 (Min) @ IC = 0.8 Adc = 90 (Min) @ IC = 3.0 Adc  Low Collector −Emitter Saturation Voltage − VCE(sat) = 0.275 Vdc (Max) @ IC = 1.2 Adc = 0.55 Vdc (Max) @ IC = 3.
