NCV8184 - Tracking Regulator/Line Driver

General Description

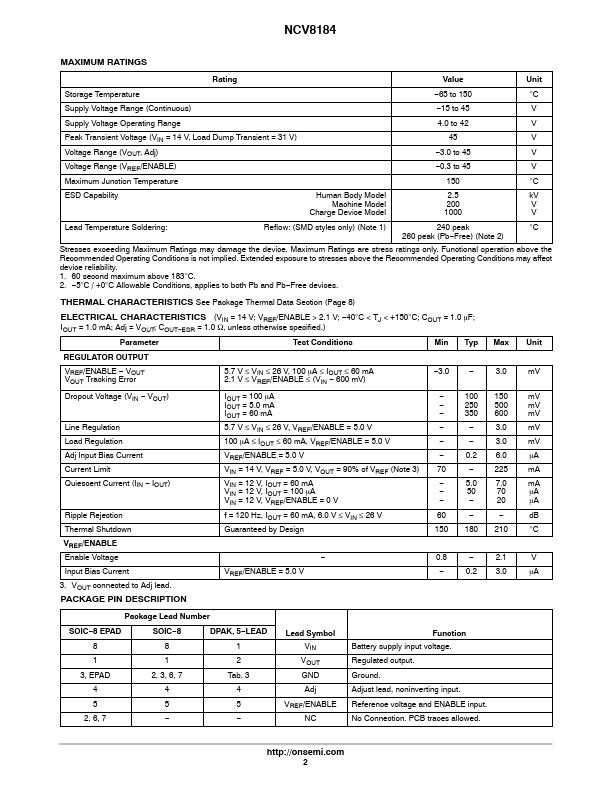

VREF/ENABLE = 5.0 V 0.2 3.0 mA Package Lead Number SOIC 8 EPAD SOIC 8 DPAK, 5 LEAD 8 8 1 1 1 2 3, EPAD 2, 3, 6, 7 Tab, 3 4 4 4 5 5 5 2, 6, 7 Lead Symbol VIN VOUT GND Adj VREF/ENABLE NC Function Battery supply input vol

Key Features

  • 70 mA Source Capability.
  • Output Tracks within ±3.0 mV.
  • Low Input Voltage Tracking Performance (Works Down to VREF = 2.1 V).
  • Low Dropout (0.35 V Typ. @ 50 mA).
  • Low Quiescent Current.
  • Thermal Shutdown.
  • Wide Operating Range.
  • Internally Fused Leads in SOIC.
  • 8 Package.
  • NCV Prefix for Automotive and Other.

📥 Download Datasheet

Datasheet Details

Part number NCV8184
Manufacturer onsemi
File Size 2.20 MB
Description Tracking Regulator/Line Driver
Datasheet download datasheet NCV8184 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NCV8501 LDO Linear Regulators ON
NCV8502 LDO Linear Regulators ON
NCV896530 Buck Converter ON Semiconducto
NCV2902 Single Supply Quad Operational Amplifiers ON
NCV3025833 Smart Power Stage onsemi

Other Datasheets by onsemi

Part Number Description
NCV8186 Fast Transient Response Low Voltage 1A LDO Regulator
NCV8187 Voltage Regulator
NCV8189 LDO Regulator
NCV81071 Dual 5A High Speed Low-Side MOSFET Drivers
NCV8114 CMOS Low Dropout Voltage Regulator

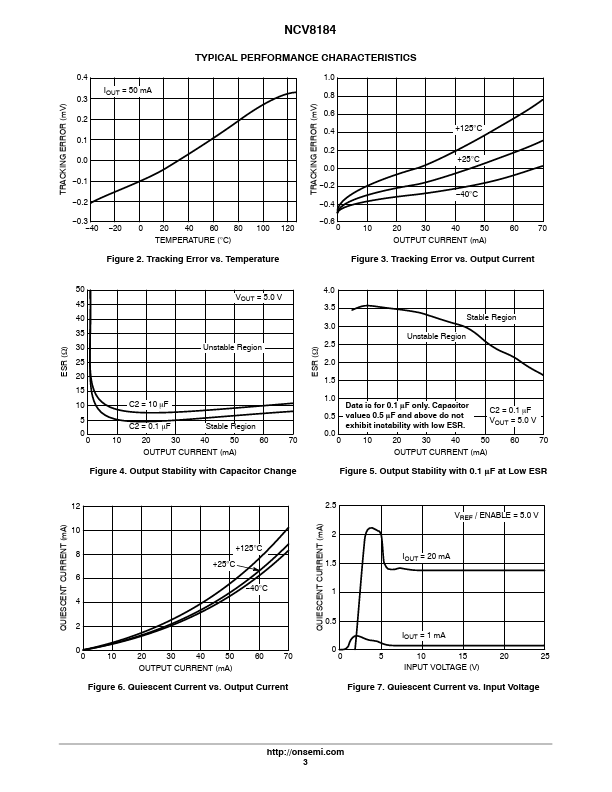

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

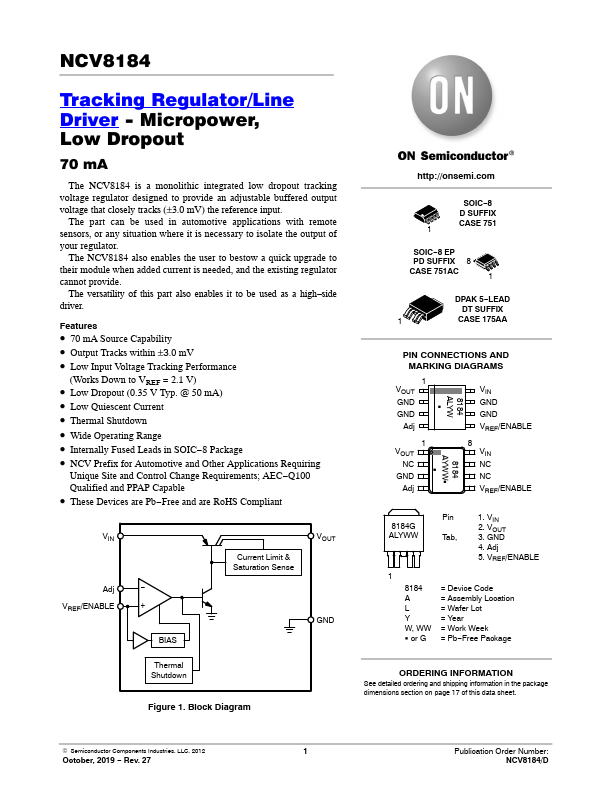

NCV8184 Tracking Regulator/Line Driver - Micropower, Low Dropout 70 mA The NCV8184 is a monolithic integrated low dropout tracking voltage regulator designed to provide an adjustable buffered output voltage that closely tracks (±3.0 mV) the reference input. The part can be used in automotive applications with remote sensors, or any situation where it is necessary to isolate the output of your regulator. The NCV8184 also enables the user to bestow a quick upgrade to their module when added current is needed, and the existing regulator cannot provide. The versatility of this part also enables it to be used as a high−side driver. Features • 70 mA Source Capability • Output Tracks within ±3.0 mV • Low Input Voltage Tracking Performance (Works Down to VREF = 2.1 V) • Low Dropout (0.35 V Typ.
