FS8J - 8A Standard Recovery Surface Mount Rectifiers

Download the FS8J datasheet PDF. This datasheet also covers the FS8G variant, as both devices belong to the same 8a standard recovery surface mount rectifiers family and are provided as variant models within a single manufacturer datasheet.

General Description

performance.

It sinks 8 A DC forward current and provides up to 230 A surge current capability with only 0.37 mA reverse leakage current.

lead, TO 277 package, optimized for space

Key Features

  • Very High forward Surge Capability: IFSM = 230 A.
  • Low Leakage Current: 0.37 mA at TA = 25°C.
  • Very Low Profile: Typical Height of 1.1 mm.
  • Glass Passivated Junction.
  • HBM (JEDEC A114) > 8 KV; CDM (JEDEC C101C) > 2 KV.
  • Green Molding Compound as per IEC61249 Standard.
  • With DAP Option Only.
  • These Devices are Pb.
  • Free, Halogen Free Free and are RoHS Compliant.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FS8G-ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number FS8J
Manufacturer onsemi
File Size 213.27 KB
Description 8A Standard Recovery Surface Mount Rectifiers
Datasheet download datasheet FS8J Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FS800R07A2E3 IGBT-Module Infineon
FS8025B USB Type-C PD Fast Charging Protocol Intelligent Trigger Fansea
FS8107E Low Power Phase-Locked Loop IC Himark
FS8108 Low Power Phase-Locked Loop IC Himark
FS8160 Dual Phase-locked Loop IC Himark

Other Datasheets by onsemi

Part Number Description

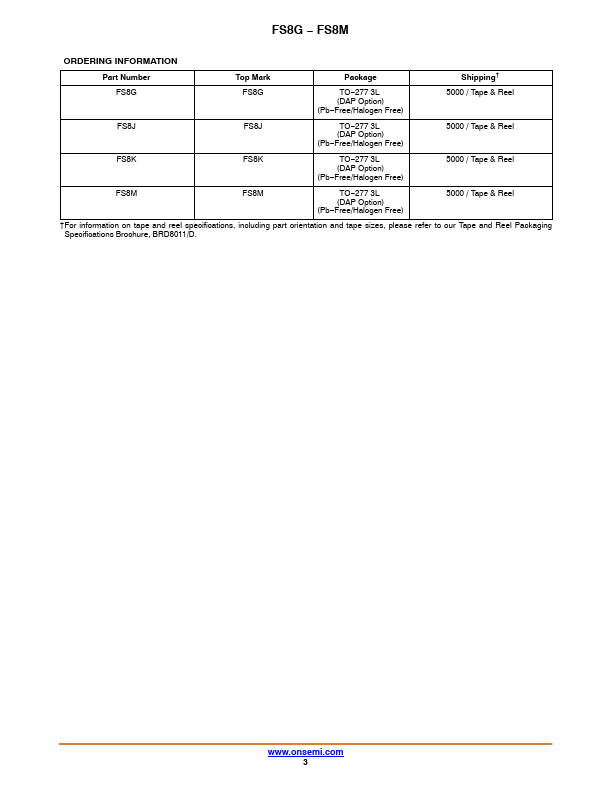

FS8G 8A Standard Recovery Surface Mount Rectifiers
FS8K 8A Standard Recovery Surface Mount Rectifiers
FS8M 8A Standard Recovery Surface Mount Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

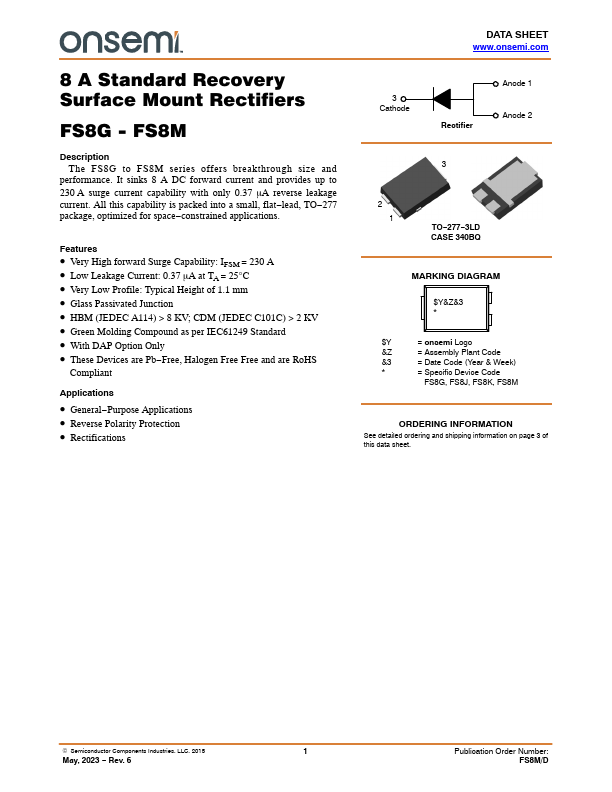

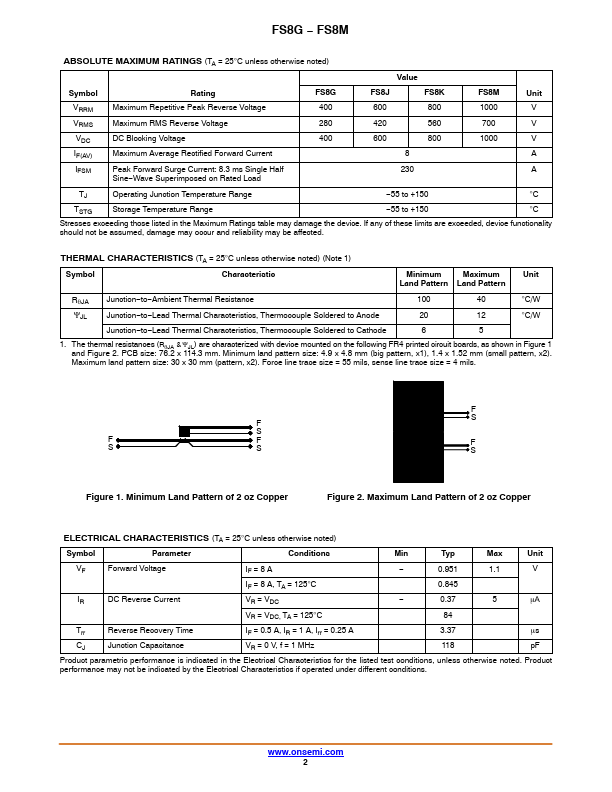

8 A Standard Recovery Surface Mount Rectifiers FS8G - FS8M Description The FS8G to FS8M series offers breakthrough size and performance. It sinks 8 A DC forward current and provides up to 230 A surge current capability with only 0.37 mA reverse leakage current. All this capability is packed into a small, flat−lead, TO−277 package, optimized for space−constrained applications. Features • Very High forward Surge Capability: IFSM = 230 A • Low Leakage Current: 0.37 mA at TA = 25°C • Very Low Profile: Typical Height of 1.
