FOD3150A - Gate Drive Optocoupler

Product Overview

ON Semiconductor

Datasheet Details

Part number	FOD3150A
Manufacturer	ON Semiconductor
File Size	213.07 KB
Description	Gate Drive Optocoupler
Datasheet	FOD3150A Datasheet

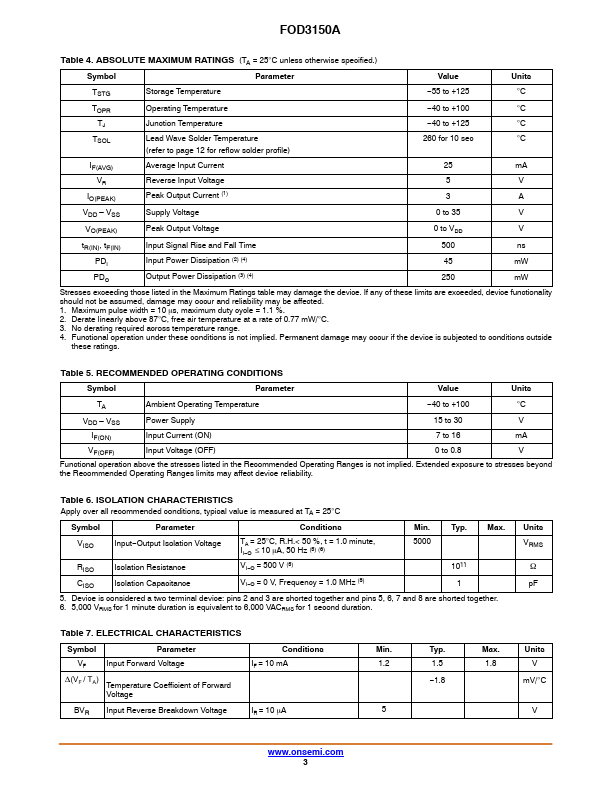

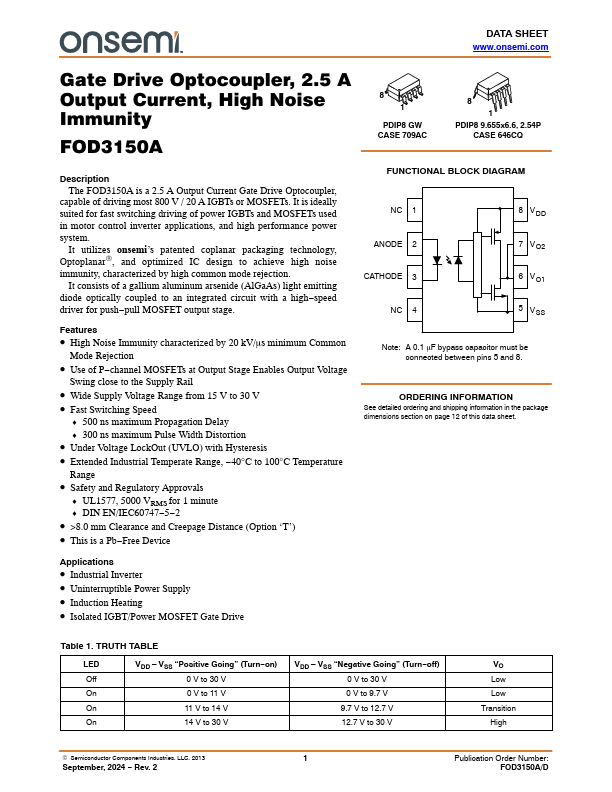

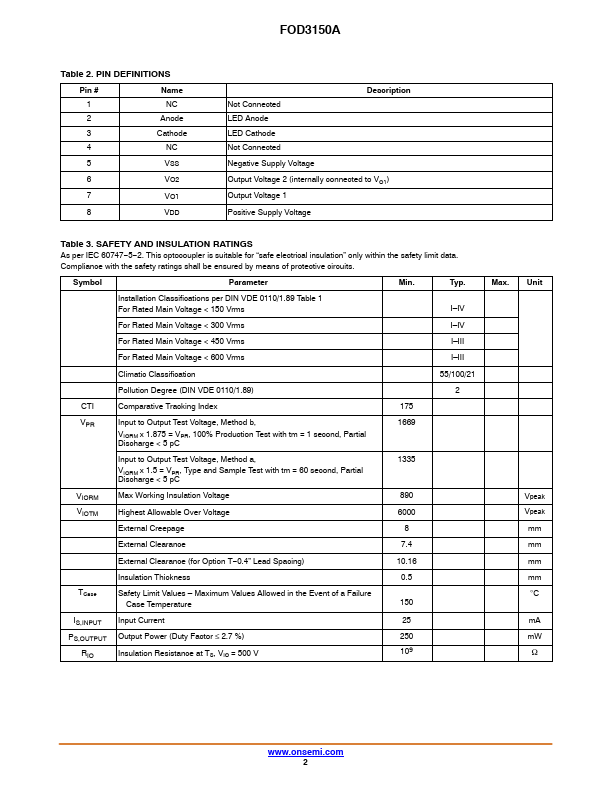

Additional preview pages of the FOD3150A datasheet.

Product details

Description

The FOD3150A is a 2.5 A Output Current Gate Drive Optocoupler, capable of driving most 800 V / 20 A IGBTs or MOSFETs.It is ideally suited for fast switching driving of power IGBTs and MOSFETs used in motor control inverter applications, and high performance power system.It utilizes ON Semiconductor patented coplanar packaging technology, Optoplanar®, and optimized IC design to achieve high noise immunity, characterized by high common mode rejection.It consists of a gallium aluminum arsenide (

Features

High Noise Immunity characterized by 20 kV/ms minimum Common Mode Rejection.
Use of P.
channel MOSFETs at Output Stage Enables Output Voltage Swing close to the Supply Rail.
Wide Supply Voltage Range from 15 V to 30 V.
Fast Switching Speed.
500 ns maximum Propagation Delay.
300 ns maximum Pulse Width Distortion.
Under Voltage LockOut (UVLO) with Hysteresis.
Extended Industrial Temperate Range,.
40°C to 100°C.
