6N135M - Single-Channel 8-Pin DIP High Speed Transistor Optocouplers

Download the 6N135M datasheet PDF. This datasheet also covers the 6N136M variant, as both devices belong to the same single-channel 8-pin dip high speed transistor optocouplers family and are provided as variant models within a single manufacturer datasheet.

General Description

HCPL2531M optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor for each channel.

Key Features

  • High Speed.
  • 1 MBit/s.
  • Dual.
  • Channel: HCPL2530M, HCPL2531M.
  • CTR Guaranteed 0C to 70C.
  • No Base Connection for Improved Noise Immunity (HCPL4503M).
  • Superior CMR of 15,000 V/ms Minimum (HCPL4503M).
  • Safety and Regulatory Approvals  UL1577, 5,000 VACRMS for 1 Minute  DIN EN/IEC60747.
  • 5.
  • 5.
  • These are Pb.
  • Free Devices.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (6N136M-ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 6N135M
Manufacturer onsemi
File Size 521.54 KB
Description Single-Channel 8-Pin DIP High Speed Transistor Optocouplers
Datasheet download datasheet 6N135M Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
6N135M Single-Channel High Speed Transistor Optocouplers Fairchild Semiconductor
6N135M-H Photocoupler LITEON
6N135 8 PIN DIP HIGH SPEED 1Mbit/s TRANSISTOR PHOTOCOUPLER Everlight
6N135 High-Speed Optocouplers Broadcom
6N135 High Speed Optocouplers LITE-ON

Other Datasheets by onsemi

Part Number Description
6N136M Single-Channel 8-Pin DIP High Speed Transistor Optocouplers
6N137 Logic Gate Optocoupler
6N138M Single-Channel High Gain Split Darlington Optocouplers
6N139M Single-Channel High Gain Split Darlington Optocouplers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

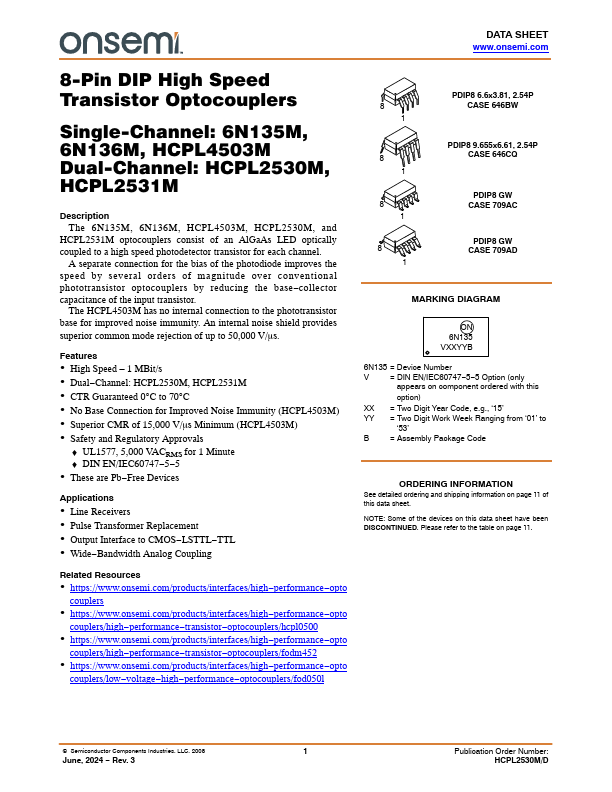

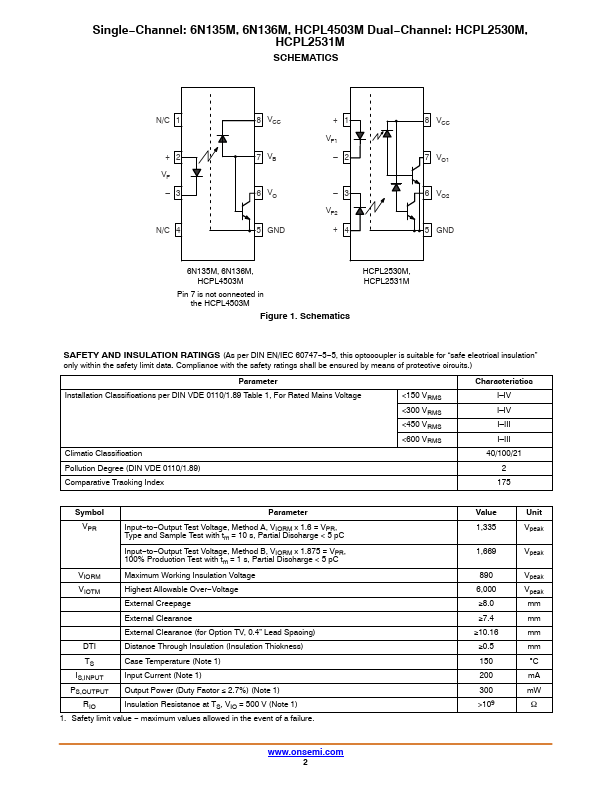

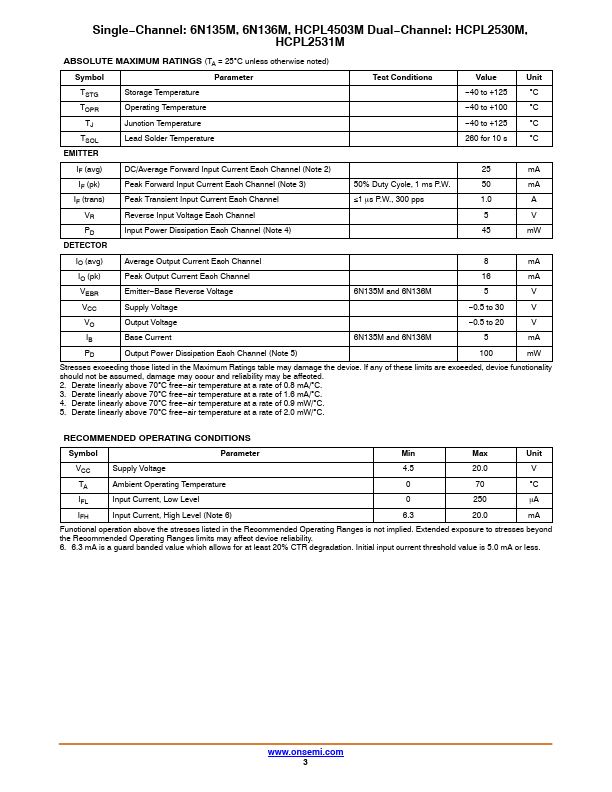

DATA SHEET www.onsemi.com 8-Pin DIP High Speed Transistor Optocouplers Single-Channel: 6N135M, 6N136M, HCPL4503M Dual-Channel: HCPL2530M, HCPL2531M Description The 6N135M, 6N136M, HCPL4503M, HCPL2530M, and HCPL2531M optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor for each channel. A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototransistor optocouplers by reducing the base−collector capacitance of the input transistor. The HCPL4503M has no internal connection to the phototransistor base for improved noise immunity. An internal noise shield provides superior common mode rejection of up to 50,000 V/ms.
